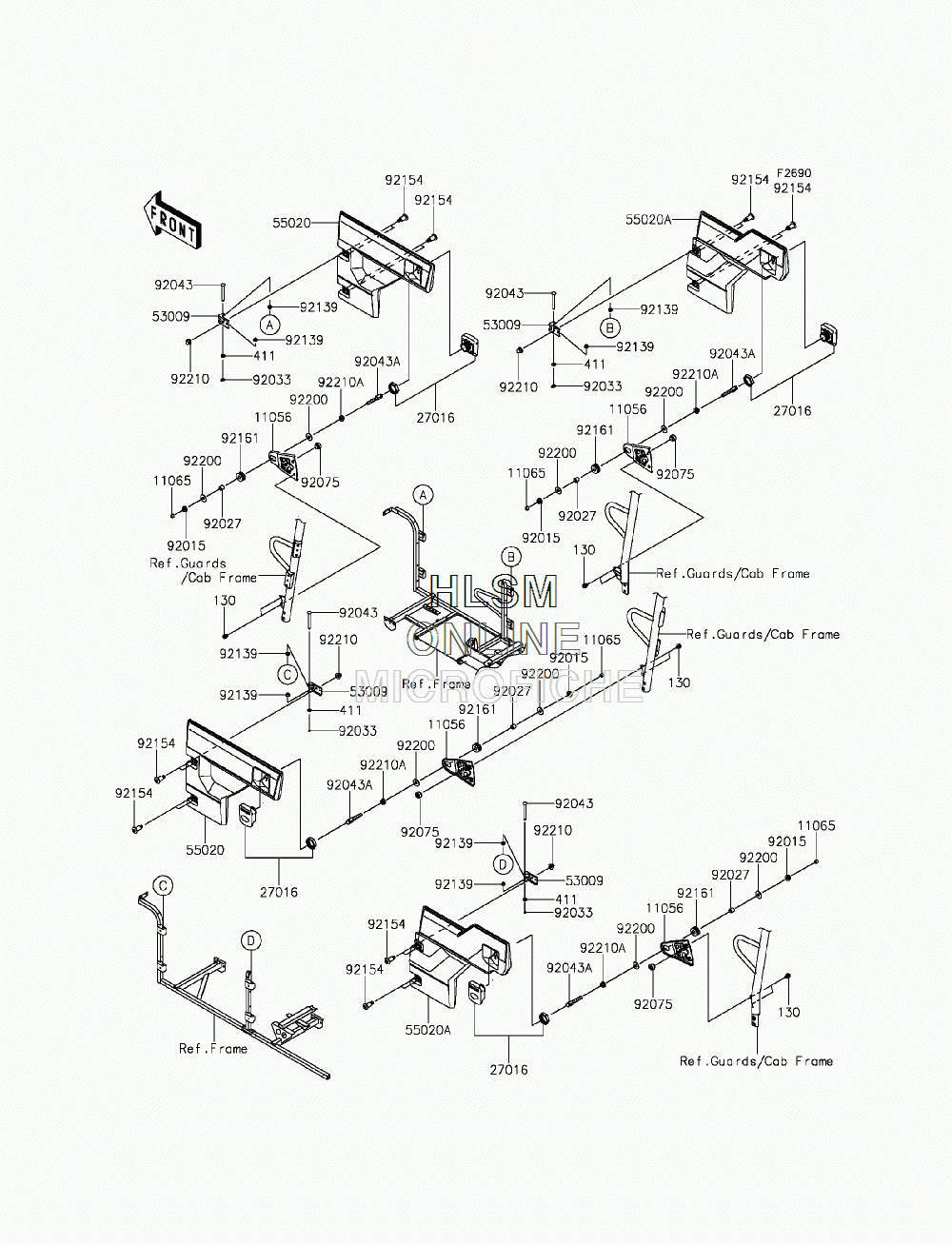

DOOR для Kawasaki MULE PRO-FXT EPS (KAF820BGF) - 2016 года выпуска`
-
№АртикулНазвание
-
130130BA0610 BOLT-FLANGED,6X10BOLT-FLANGED,6X10
-
411411AB0600 WASHER-PLAIN,6MMWASHER-PLAIN,6MM
-
1105611056-2856 BRACKET,DOOR GUARDBRACKET,DOOR GUARD
-
1106511065-7504 CAPCAP
-
2701627016-0049 LOCK-ASSYLOCK-ASSY
-
5300953009-0303 HINGEHINGE
-
5502055020-0936-6Z GUARD, FRONT,(F.BLACK)GUARD, FRONT,(F.BLACK)
-
55020A55020-0937-6Z GUARD, REAR,(F.BLACK)GUARD, REAR,(F.BLACK)
-
9201592015-1432 NUT,8MMNUT,8MM
-
9202792027-102 COLLAR,8.8X12X10.7COLLAR,8.8X12X10.7
-
9203392033-0719 RING-SNAPRING-SNAP
-
9204392043-0743 PIN,6X56PIN,6X56
-
92043A92043-0788 PIN,DOOR LOCKPIN,DOOR LOCK
-
9207592075-1598 DAMPER,SIDE COVERDAMPER,SIDE COVER
-
9213992139-0709 BUSHING,6X8X6BUSHING,6X8X6
-
9215492154-1369 BOLT,SOCKET,8X30BOLT,SOCKET,8X30
-
9216192161-1691 DAMPER,10X26X11.5DAMPER,10X26X11.5
-
9220092200-1156 WASHER,8.5X23X1.6WASHER,8.5X23X1.6
-
9221092210-0488 NUT,CAP,8MMNUT,CAP,8MM
-
92210A92210-0555 NUT,FLANGED,8MMNUT,FLANGED,8MM
