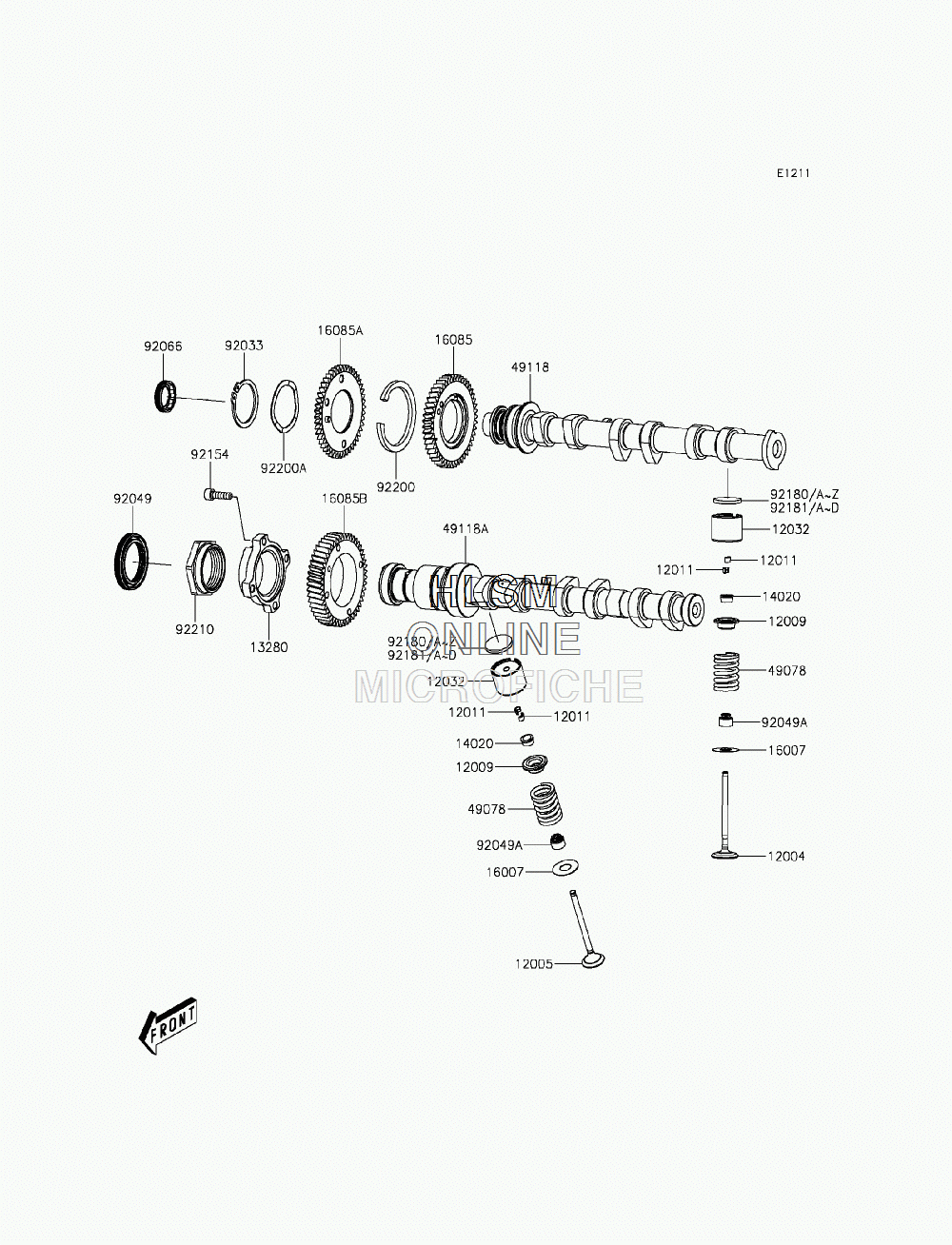

VALVE(S) W/ CAMSHAFT(S) для Kawasaki MULE PRO-FX EPS (KAF820FGF) - 2016 года выпуска
-
№АртикулНазвание
-
1200412004-0732 VALVE-INTAKEVALVE-INTAKE
-
1200512005-0749 VALVE-EXHAUSTVALVE-EXHAUST
-
1200912009-0027 RETAINER-VALVE SPRINGRETAINER-VALVE SPRING
-
1201112011-0003 COLLETCOLLET
-
1203212032-0019 TAPPETTAPPET
-
1328013280-0827 HOLDERHOLDER
-
1402014020-0015 RETAINERRETAINER
-
1600716007-0729 SEAT-SPRINGSEAT-SPRING
-
1608516085-0626 GEAR, INTAKE CAMSHAFT, MASTERGEAR, INTAKE CAMSHAFT, MASTER
-
16085A16085-0627 GEAR, INTAKE CAMSHAFT, SUBGEAR, INTAKE CAMSHAFT, SUB
-
16085B16085-0628 GEAR, EXHAUST CAMSHAFTGEAR, EXHAUST CAMSHAFT
-
4907849078-0724 SPRING-ENGINE VALVESPRING-ENGINE VALVE
-
4911849118-0836 CAMSHAFT-COMP, INTAKECAMSHAFT-COMP, INTAKE
-
49118A49118-0837 CAMSHAFT-COMP, EXHAUSTCAMSHAFT-COMP, EXHAUST
-
9203392033-0754 RING-SNAPRING-SNAP
-
9204992049-0776 SEAL-OILSEAL-OIL
-
92049A92049-0777 SEAL-OIL, AIR VALVESEAL-OIL, AIR VALVE
-
9206692066-0809 PLUGPLUG
-
9215492154-1619 BOLT, SOCKET, 6X20BOLT, SOCKET, 6X20
-
9218092180-0819 SHIM, T=2.18SHIM, T=2.18
-
92180A92180-0820 SHIM, T=2.20SHIM, T=2.20
-
92180B92180-0821 SHIM, T=2.22SHIM, T=2.22
-
92180C92180-0822 SHIM, T=2.24SHIM, T=2.24
-
92180D92180-0823 SHIM, T=2.26SHIM, T=2.26
-
92180E92180-0824 SHIM, T=2.28SHIM, T=2.28
-
92180F92180-0825 SHIM, T=2.30SHIM, T=2.30
-
92180G92180-0826 SHIM, T=2.32SHIM, T=2.32
-
92180H92180-0827 SHIM, T=2.34SHIM, T=2.34
-
92180I92180-0828 SHIM, T=2.36SHIM, T=2.36
-
92180J92180-0829 SHIM, T=2.38SHIM, T=2.38
-
92180K92180-0830 SHIM, T=2.40SHIM, T=2.40
-
92180L92180-0831 SHIM, T=2.42SHIM, T=2.42
-
92180M92180-0832 SHIM, T=2.44SHIM, T=2.44
-
92180N92180-0833 SHIM, T=2.46SHIM, T=2.46
-
92180O92180-0834 SHIM, T=2.48SHIM, T=2.48
-
92180P92180-0835 SHIM, T=2.50SHIM, T=2.50
-
92180Q92180-0836 SHIM, T=2.52SHIM, T=2.52
-
92180R92180-0837 SHIM, T=2.54SHIM, T=2.54
-
92180S92180-0838 SHIM, T=2.56SHIM, T=2.56
-
92180T92180-0839 SHIM, T=2.58SHIM, T=2.58
-
92180U92180-0840 SHIM, T=2.60SHIM, T=2.60
-
92180V92180-0841 SHIM, T=2.62SHIM, T=2.62
-
92180W92180-0842 SHIM, T=2.64SHIM, T=2.64
-
92180X92180-0843 SHIM, T=2.66SHIM, T=2.66
-
92180Y92180-0844 SHIM, T=2.68SHIM, T=2.68
-
92180Z92180-0845 SHIM, T=2.70SHIM, T=2.70
-
9218192180-0846 SHIM, T=2.72SHIM, T=2.72
-
92181A92180-0847 SHIM, T=2.74SHIM, T=2.74
-
92181B92180-0848 SHIM, T=2.76SHIM, T=2.76
-
92181C92180-0849 SHIM, T=2.78SHIM, T=2.78
-
92181D92180-0850 SHIM, T=2.80SHIM, T=2.80
-
9220092200-1684 WASHERWASHER
-
92200A92200-1685 WASHER, SPRINGWASHER, SPRING
-
9221092210-0948 NUTNUT
