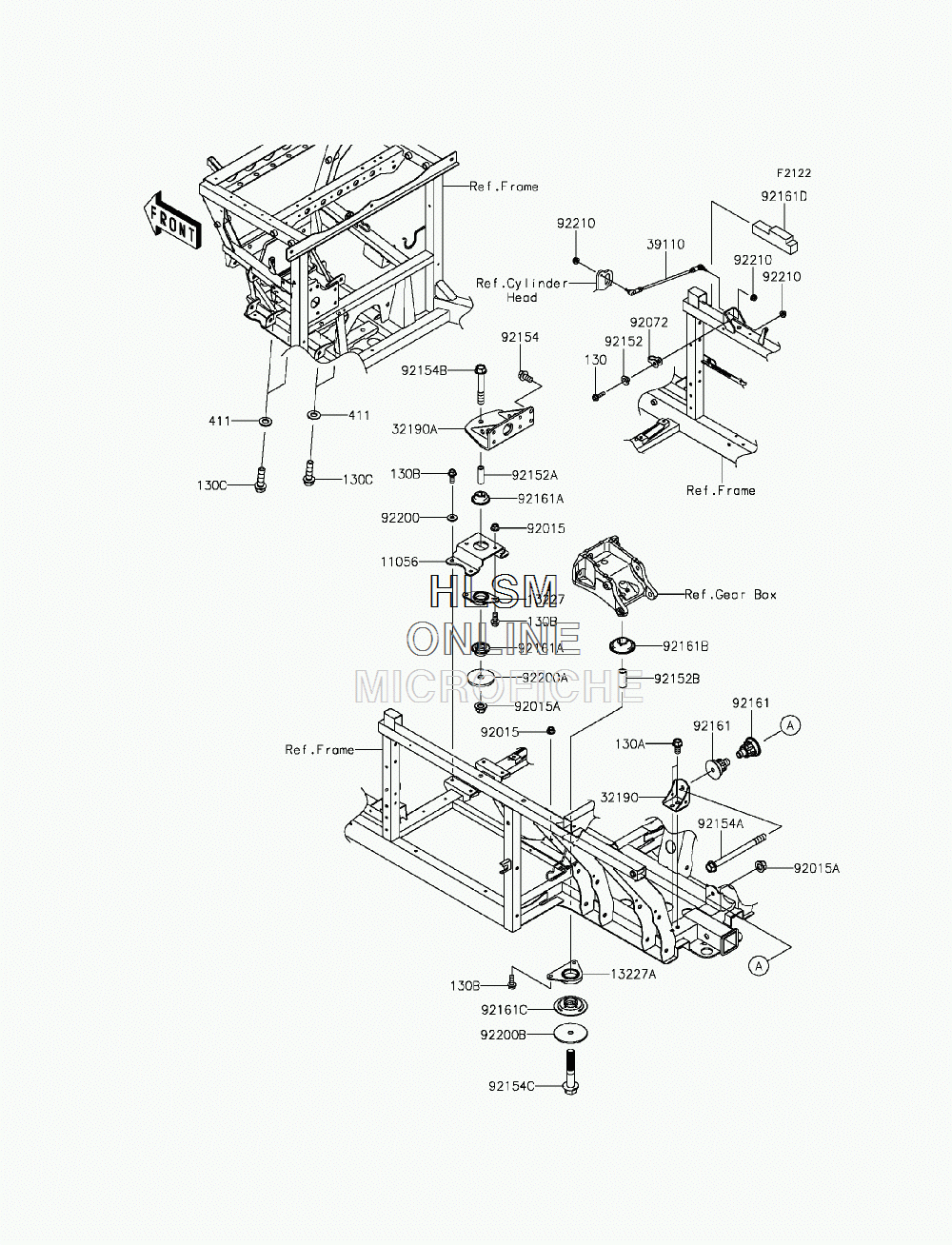

ENGINE MOUNT для Kawasaki MULE PRO-DXT (KAF1000AGF) - 2016 года выпуска`
-
№АртикулНазвание
-
1105611056-7475 BRACKETBRACKET
-
1105711057-0274 BRACKET, TORQUE ROD (JKAAFCA1 GB500024 AND ABOVE)BRACKET, TORQUE ROD (JKAAFCA1 GB500024 AND ABOVE)
-
1322713227-0031 HOUSINGHOUSING
-
13227A13227-0032 HOUSINGHOUSING
-
3219032190-0662 BRACKET-ENGINEBRACKET-ENGINE
-
32190A32190-0701 BRACKET-ENGINE, FRONTBRACKET-ENGINE, FRONT
-
3911039110-0040 ROD-ASSY-TIE (UP TO JKAAFCA1 GB500023)ROD-ASSY-TIE (UP TO JKAAFCA1 GB500023)
-
39110A39110-0042 ROD-ASSY-TIE (JKAAFCA1 GB500024 AND ABOVE)ROD-ASSY-TIE (JKAAFCA1 GB500024 AND ABOVE)
-
9201592015-1397 NUT, LOCK, FLANGED, 8MMNUT, LOCK, FLANGED, 8MM
-
92015A92015-1433 NUT, LOCK, FLANGED, 12MMNUT, LOCK, FLANGED, 12MM
-
9207292072-0794 BAND (UP TO JKAAFCA1 GB500023)BAND (UP TO JKAAFCA1 GB500023)
-
9215292152-0181 COLLAR (UP TO JKAAFCA1 GB500023)COLLAR (UP TO JKAAFCA1 GB500023)
-
92152A92152-1802 COLLAR, 13X19.1X54COLLAR, 13X19.1X54
-
92152B92152-2127 COLLAR, 17X23.8X54.5COLLAR, 17X23.8X54.5
-
9215492154-1321 BOLT, FLANGED, 10X20BOLT, FLANGED, 10X20
-
92154A92154-1322 BOLT, FLANGED, 12X150BOLT, FLANGED, 12X150
-
92154B92154-1419 BOLT, FLANGED, 12X80BOLT, FLANGED, 12X80
-
92154C92154-1763 BOLT, FLANGED, 16X86BOLT, FLANGED, 16X86
-
9216192161-1616 DAMPERDAMPER
-
92161A92161-1617 DAMPERDAMPER
-
92161B92161-1618 DAMPERDAMPER
-
92161C92161-1619 DAMPERDAMPER
-
92161D92161-1852 DAMPER (UP TO JKAAFCA1 GB500023)DAMPER (UP TO JKAAFCA1 GB500023)
-
9220092200-0205 WASHER, 8.2X20.0X2.5WASHER, 8.2X20.0X2.5
-
92200A92200-0913 WASHER, 12.5X55X4.76WASHER, 12.5X55X4.76
-
92200B92200-1747 WASHER, 16.5X100X4.76WASHER, 16.5X100X4.76
-
9221092210-0303 NUT, LOCK, FLANGED, 6MM (UP TO JKAAFCA1 GB500023)NUT, LOCK, FLANGED, 6MM (UP TO JKAAFCA1 GB500023)
-
92210A92210-0303 NUT, LOCK, FLANGED, 6MM (JKAAFCA1 GB500024 AND ABOVE)NUT, LOCK, FLANGED, 6MM (JKAAFCA1 GB500024 AND ABOVE)
-
130130BA0622 BOLT-FLANGED, 6X22 (UP TO JKAAFCA1 GB500023)BOLT-FLANGED, 6X22 (UP TO JKAAFCA1 GB500023)
-
130A130BA1020 BOLT-FLANGED, 10X20BOLT-FLANGED, 10X20
-
130B130CA0818 BOLT-FLANGED, 8X18 (JKAAFCA1 GB500024 AND ABOVE)BOLT-FLANGED, 8X18 (JKAAFCA1 GB500024 AND ABOVE)
-
130C130CA0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130D130CA1245 BOLT-FLANGED, 12X45BOLT-FLANGED, 12X45
-
411411AA1200 WASHER-PLAIN, 12MMWASHER-PLAIN, 12MM
