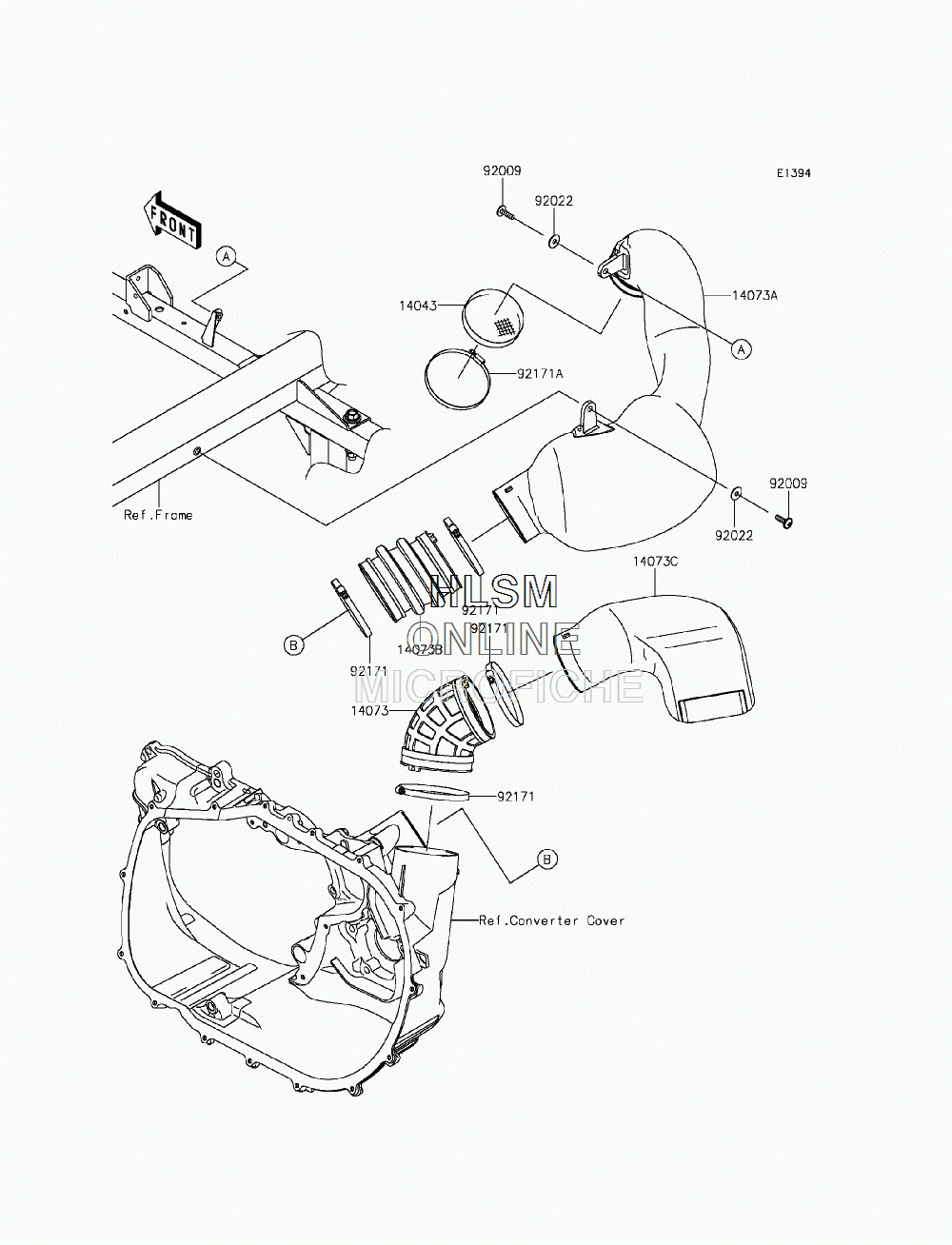

AIR CLEANER W/ BELT CONVERTER для Kawasaki MULE PRO-DXT EPS (KAF1000BGF) - 2016 года выпуска`
-
№АртикулНазвание
-
1404314043-0013 FILTERFILTER
-
1407314073-0788 DUCT, EXHAUSTDUCT, EXHAUST
-
14073A14073-0789 DUCT, INTAKEDUCT, INTAKE
-
14073B14073-0790 DUCT, INTAKEDUCT, INTAKE
-
14073C14073-0793 DUCT, EXHAUSTDUCT, EXHAUST
-
9200992009-1441 SCREW, 6X22SCREW, 6X22
-
9202292022-165 WASHER, PLAIN, 6MMWASHER, PLAIN, 6MM
-
9217192171-1383 CLAMPCLAMP
-
92171A92171-3716 CLAMPCLAMP
