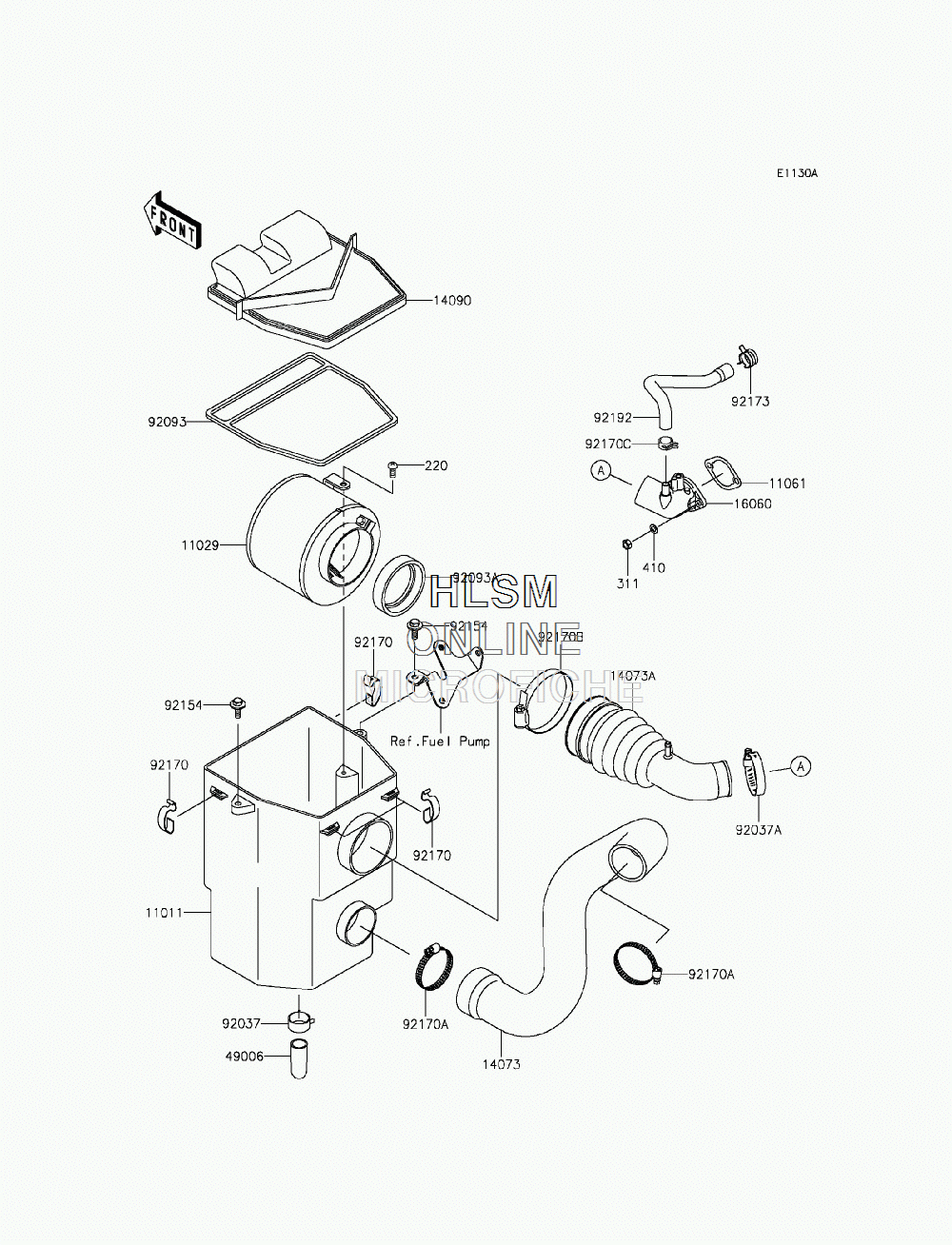

AIR CLEANER (USA ONLY) для Kawasaki MULE 610 4X4 XC (KAF400DGF) - 2016 года выпуска`
-
№АртикулНазвание
-
1101111011-1367 CASE-AIR FILTERCASE-AIR FILTER
-
1102911029-1004 ELEMENT-ASSY-AIR FILTERELEMENT-ASSY-AIR FILTER
-
1106111061-7026 GASKET,CHOKEGASKET,CHOKE
-
1407314073-0072 DUCT, FRAME-AIR FILTERDUCT, FRAME-AIR FILTER
-
14073A14073-0193 DUCT,AIR FILTER-IN.PIPEDUCT,AIR FILTER-IN.PIPE
-
1409014090-1106 COVER,AIR FILTERCOVER,AIR FILTER
-
1606016060-2224 PIPE-INTAKEPIPE-INTAKE
-
4900649006-1351 BOOTBOOT
-
9203792037-1460 CLAMP,HOSE CLIPCLAMP,HOSE CLIP
-
92037A92037-506 CLAMPCLAMP
-
9209392093-1241 SEAL,AIR FILTERSEAL,AIR FILTER
-
92093A92093-1322 SEAL,DUSTSEAL,DUST
-
9215492154-1516 BOLT,WP,6X20BOLT,WP,6X20
-
9217092170-1211 CLAMP,AIR FILTERCLAMP,AIR FILTER
-
92170A92170-1674 CLAMPCLAMP
-
92170B92170-1679 CLAMPCLAMP
-
92170C92170-7003 CLAMPCLAMP
-
9217392173-7003 CLAMPCLAMP
-
9219292192-2207 TUBE,BREATHERTUBE,BREATHER
-
220220AA0614 SCREW-PAN-CROS,6X14SCREW-PAN-CROS,6X14
-
311311AA0600 NUT-HEX,6MMNUT-HEX,6MM
-
410410AA0600 WASHER-PLAIN-SMALLWASHER-PLAIN-SMALL
