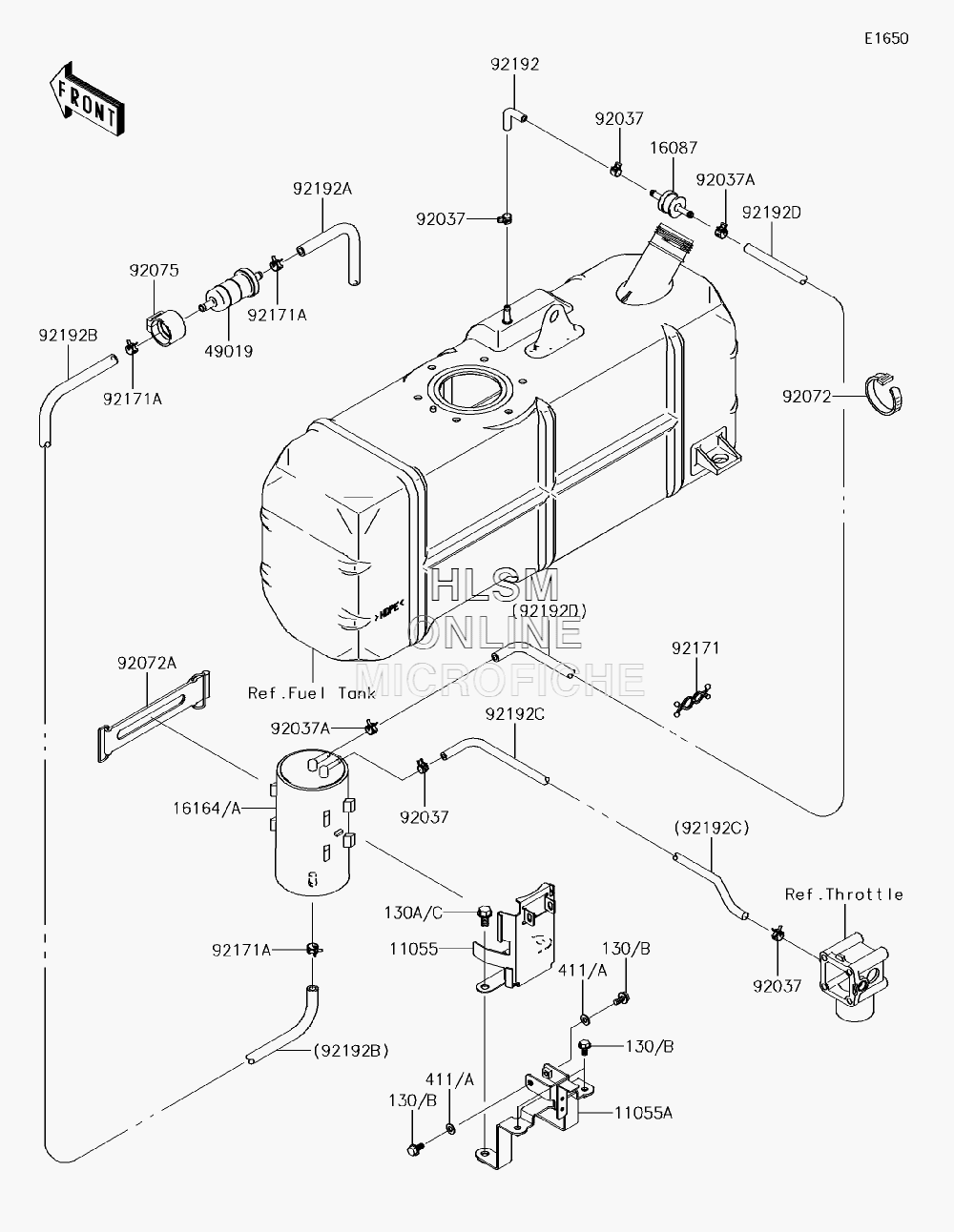

FUEL EVAPORATIVE SYSTEM для Kawasaki MULE 4000 (KAF620PGF) - 2016 года выпуска`
-
№АртикулНазвание
-
1105511055-0263 BRACKET, UPPBRACKET, UPP
-
11055A11055-0407 BRACKET, LWRBRACKET, LWR
-
130130BA0612 BOLT-FLANGED, 6X12BOLT-FLANGED, 6X12
-
130A130BA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
1608716087-0703 VALVE-CHECKVALVE-CHECK
-
16164A16164-0013 CANISTERCANISTER
-
411411AA0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
4901949019-1055 FILTER-FUELFILTER-FUEL
-
9203792037-1461 CLAMP, TUBECLAMP, TUBE
-
92037A92037-1505 CLAMP, TUBECLAMP, TUBE
-
9207292072-056 BAND, L=186BAND, L=186
-
92072A92072-1306 BAND, L=168BAND, L=168
-
9207592075-1853 DAMPER, FUEL FILTERDAMPER, FUEL FILTER
-
9217192171-0476 CLAMPCLAMP
-
92171A92171-0515 CLAMPCLAMP
-
9219292192-0067 TUBE, FUEL TANK-CHECK VALVETUBE, FUEL TANK-CHECK VALVE
-
92192A92192-0609 TUBE, FILTER-AIRTUBE, FILTER-AIR
-
92192B92192-0713 TUBE, CANISTER-FUEL FILTERTUBE, CANISTER-FUEL FILTER
-
92192C92192-0909 TUBE, 4.5X9.5X460TUBE, 4.5X9.5X460
-
92192D92192-1161 TUBETUBE
