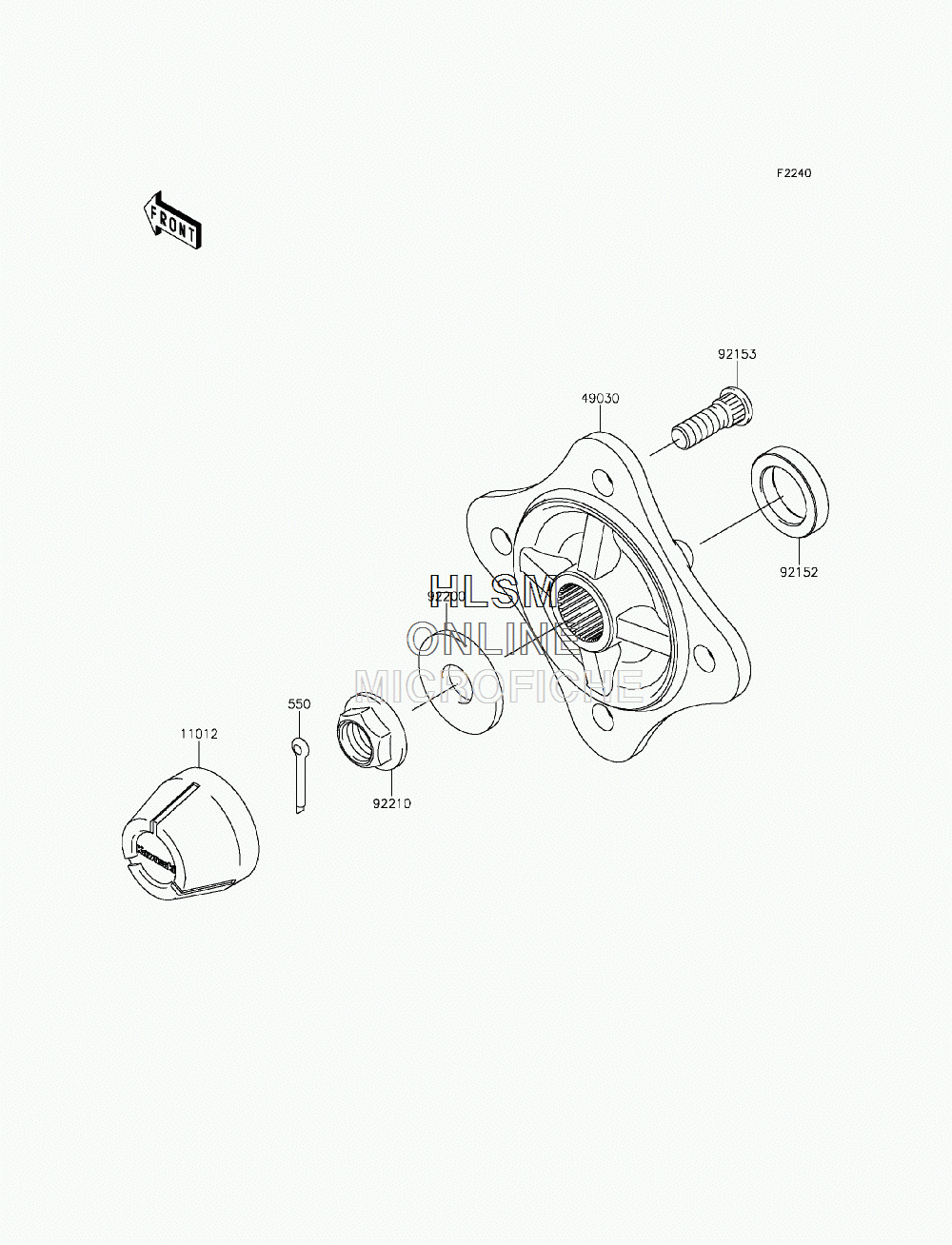

BRAKE - REAR W/ HUBS для Kawasaki TERYX4 CAMO (KRT800DFF) - 2015 года выпуска`
-
№АртикулНазвание
-
550550AA4030 PIN-COTTER,4.0X30PIN-COTTER,4.0X30
-
1101211012-1969 CAP,WHEELCAP,WHEEL
-
4903049030-0561 HUB, REARHUB, REAR
-
9215292152-1700 COLLAR,30.1X44X9COLLAR,30.1X44X9
-
9215392153-1915 BOLT,12MMBOLT,12MM
-
9220092200-0130 WASHER,20.3X52X4.5WASHER,20.3X52X4.5
-
9221092210-2093 NUT,FLANGED,20MMNUT,FLANGED,20MM
