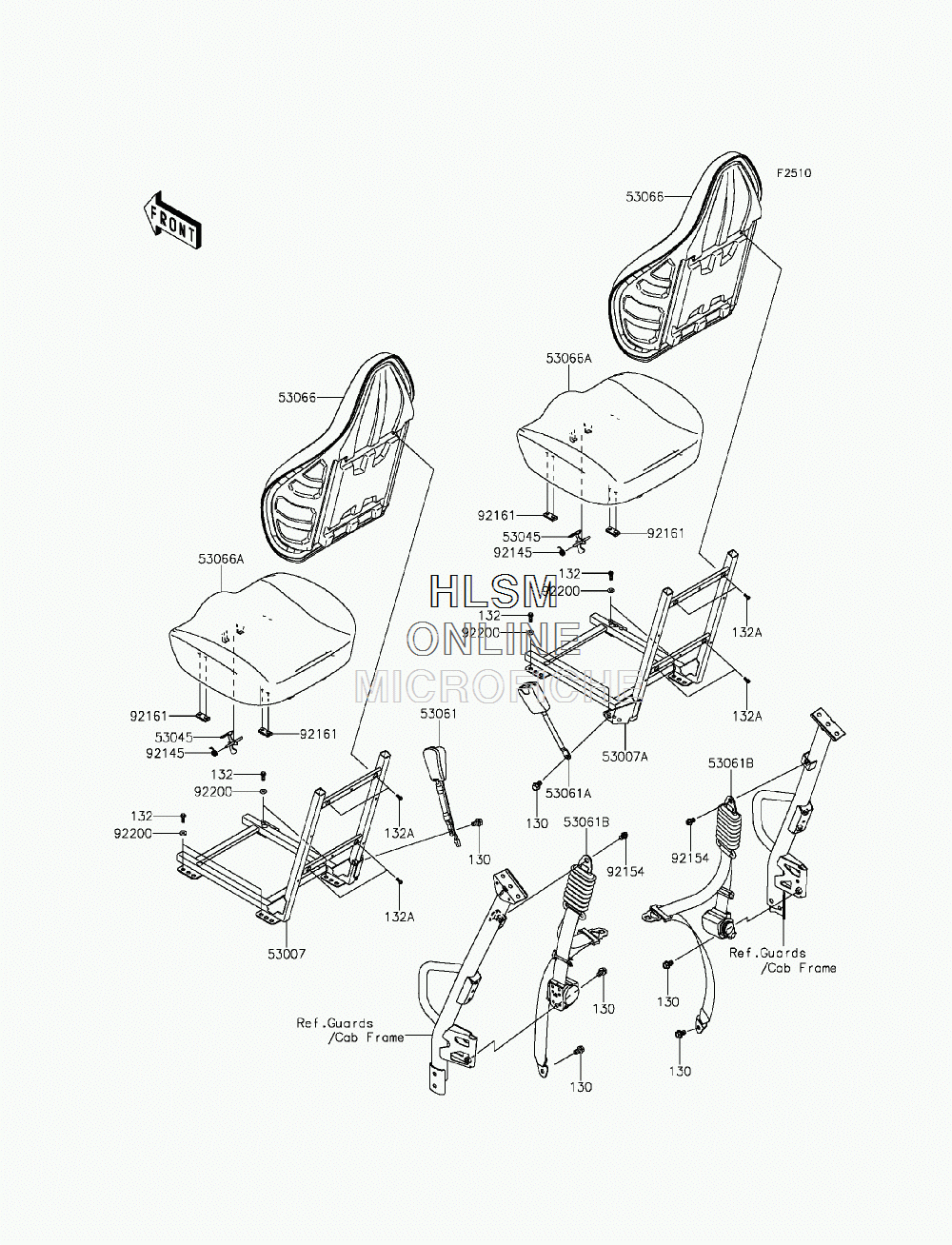

SEAT для Kawasaki TERYX (KRF800BFF) - 2015 года выпуска`
-
№АртикулНазвание
-
130130BA1220 BOLT-FLANGED,12X20BOLT-FLANGED,12X20
-
132132BA0822 BOLT-FLANGED-SMALL,8X22BOLT-FLANGED-SMALL,8X22
-
132A132BB0614 BOLT-FLANGED-SMALL,6X14BOLT-FLANGED-SMALL,6X14
-
5300753007-0347 FRAME-SEAT, FRONT, LEFT HANDFRAME-SEAT, FRONT, LEFT HAND
-
53007A53007-0348 FRAME-SEAT, FRONT, RIGHT HANDFRAME-SEAT, FRONT, RIGHT HAND
-
5304553045-0019 HOOK-ASSYHOOK-ASSY
-
5306153061-0038 BELT-SEAT,BUCKLE,SW.BELT-SEAT,BUCKLE,SW.
-
53061A53061-0039 BELT-SEAT,BUCKLEBELT-SEAT,BUCKLE
-
53061B53061-0040 BELT-SEAT, RETRACTOR,L=2500BELT-SEAT, RETRACTOR,L=2500
-
5306653066-0394-41H SEAT-ASSY,BACK,(BLACK/SILVER) (FOR 839)SEAT-ASSY,BACK,(BLACK/SILVER) (FOR 839)
-
53066A53066-0420-13Z SEAT-ASSY,BOTTOM,(SILVER/BLACK) (FOR 839)SEAT-ASSY,BOTTOM,(SILVER/BLACK) (FOR 839)
-
9214592145-0022 SPRING,SEAT LATCHSPRING,SEAT LATCH
-
9215492154-1136 BOLT,10X16BOLT,10X16
-
9216192161-1489 DAMPER,SEATDAMPER,SEAT
-
9220092200-0205 WASHER,8.2X20.0X2.5WASHER,8.2X20.0X2.5
