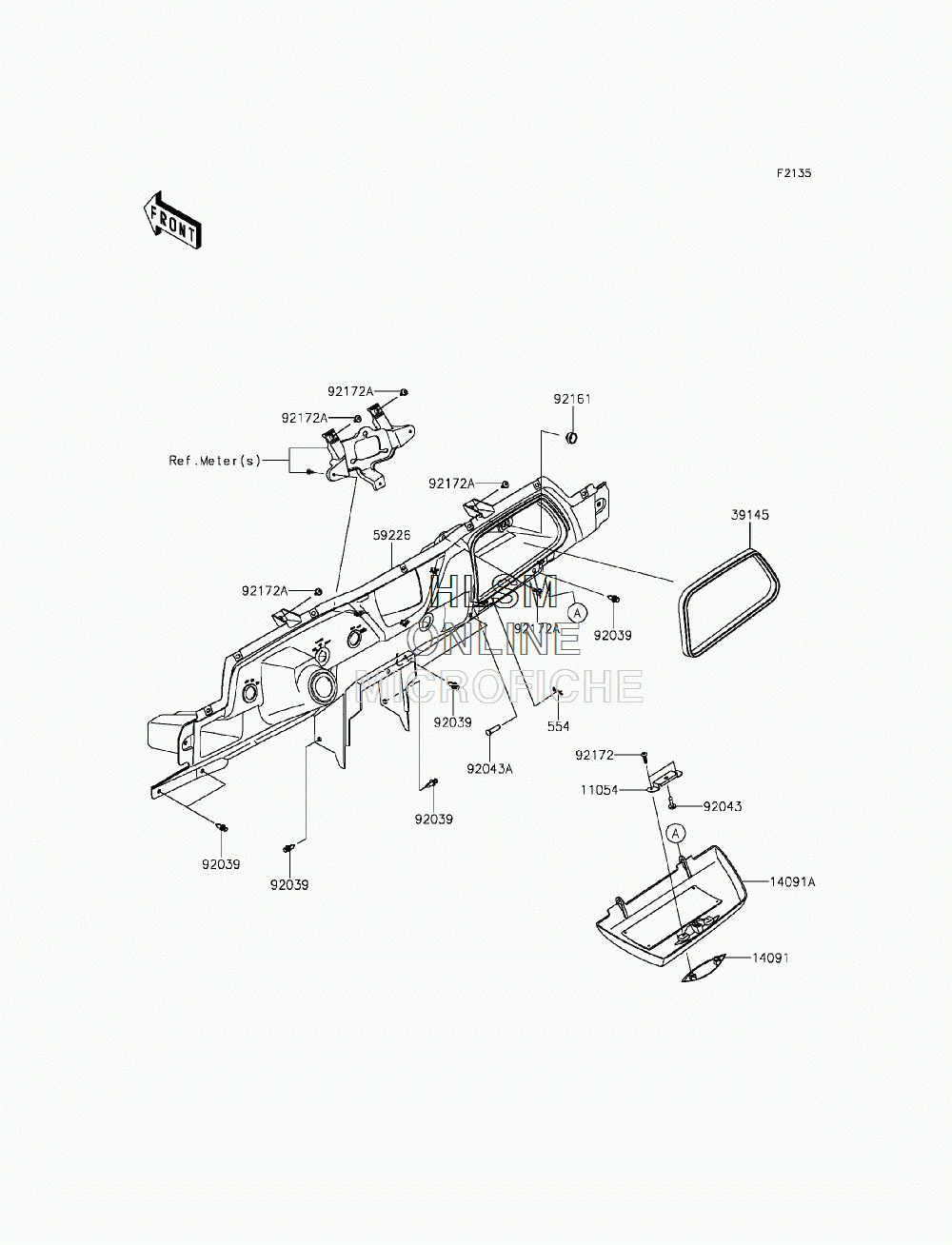

FRONT BOX для Kawasaki TERYX CAMO (KRF800DFF) - 2015 года выпуска`
-
№АртикулНазвание
-
554554DA0600 PIN-SNAPPIN-SNAP
-
1105411054-1789 BRACKETBRACKET
-
1409114091-0700-6Z COVER,STORAGE CAP,(F.BLACK) (FOR 42H)COVER,STORAGE CAP,(F.BLACK) (FOR 42H)
-
14091A14091-0985-6Z COVER,STORAGE,(F.BLACK) (FOR 42H)COVER,STORAGE,(F.BLACK) (FOR 42H)
-
3914539145-0029 TRIM-SEAL,L=940TRIM-SEAL,L=940
-
5922659226-0033 PANEL-CONTROLPANEL-CONTROL
-
9203992039-1229 RIVETRIVET
-
9204392043-0138 PINPIN
-
92043A92043-0164 PIN,6X23PIN,6X23
-
9216192161-0568 DAMPERDAMPER
-
9217292172-0347 SCREW,TAPPING,4X16SCREW,TAPPING,4X16
-
92172A92172-0826 SCREW,6X16SCREW,6X16
