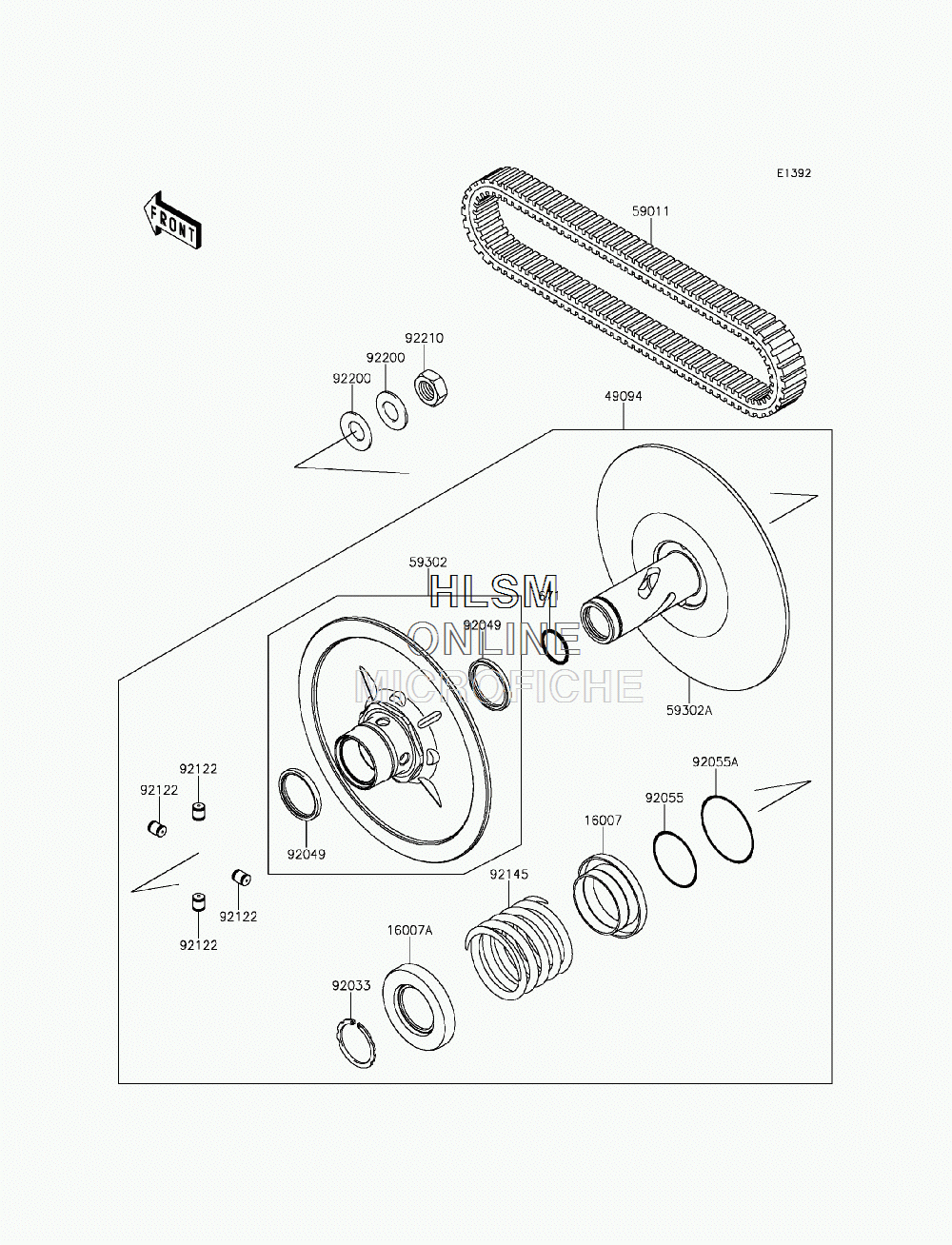

DRIVEN CONVERTER W/ DRIVE BELT для Kawasaki TERYX CAMO (KRF800DFF) - 2015 года выпуска`
-
№АртикулНазвание
-
671671D2530 O RINGO RING
-
1600716007-0049 SEAT-SPRING,MOVABLESEAT-SPRING,MOVABLE
-
16007A16007-0050 SEAT-SPRING,FIXEDSEAT-SPRING,FIXED
-
4909449094-0086 CONVERTER-ASSY-DRIVENCONVERTER-ASSY-DRIVEN
-
5901159011-0040 BELT,CVTBELT,CVT
-
5930259302-0042 SHEAVE-COMP,MOVABLESHEAVE-COMP,MOVABLE
-
59302A59302-0043 SHEAVE-COMP,FIXEDSHEAVE-COMP,FIXED
-
9203392033-1317 RING-SNAPRING-SNAP
-
9204992049-1528 SEAL-OILSEAL-OIL
-
9205592055-0752 RING-O,46.4X3.1RING-O,46.4X3.1
-
92055A92055-0753 RING-O,59.5X2.4RING-O,59.5X2.4
-
9212292122-0043 ROLLERROLLER
-
9214592145-0959 SPRINGSPRING
-
9220092200-1505 WASHERWASHER
-
9221092210-0821 NUT,18MMNUT,18MM
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - FRONT W/ HUB
- BRAKE - MASTER CYLINDER
- BRAKE - REAR W/ HUBS
- BRAKE PEDAL W/ THROTTLE LEVER
- BRAKE PIPING
- CABLES
- CAMSHAFT(S) W/TENSIONER
- CARRIER(S)
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- COLOR INFO
- CONVERTER COVER
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER W/ PISTON(S)
- DECALS
- DOOR
- DRIVE CONVERTER
- DRIVE SHAFT (FRONT)
- DRIVE SHAFT (PROPELLER)
- DRIVE SHAFT (REAR)
- • DRIVEN CONVERTER W/ DRIVE BELT
- ENGINE COVER(S)
- ENGINE MOUNT
- FENDER - FRONT
- FENDER - REAR
- FRAME
- FRAME FITTINGS (FRONT)
- FRAME FITTINGS (REAR)
- FRONT BEVEL GEAR
- FRONT BOX
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GEAR CHANGE DRUM/SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- GUARD(S) / CAB FRAME
- HEADLIGHT(S)
- IGNITION SYSTEM
- LABELS
- MANUALS
- METER(S)
- MUFFLER(S)
- OIL PAN W/ OIL FILTER
- RADIATOR
- REFLECTORS (CANADA ONLY)
- SEAT
- SHIFT LEVER(S)
- STARTER MOTOR
- STEERING WHEEL
- SUN TOP
- SUSPENSION - FRONT
- SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER(S)
- SWITCHES
- TAILLIGHT(S)
- THROTTLE BODY
- TRANSMISSION
- VALVE(S)
- WHEELS - TIRES
