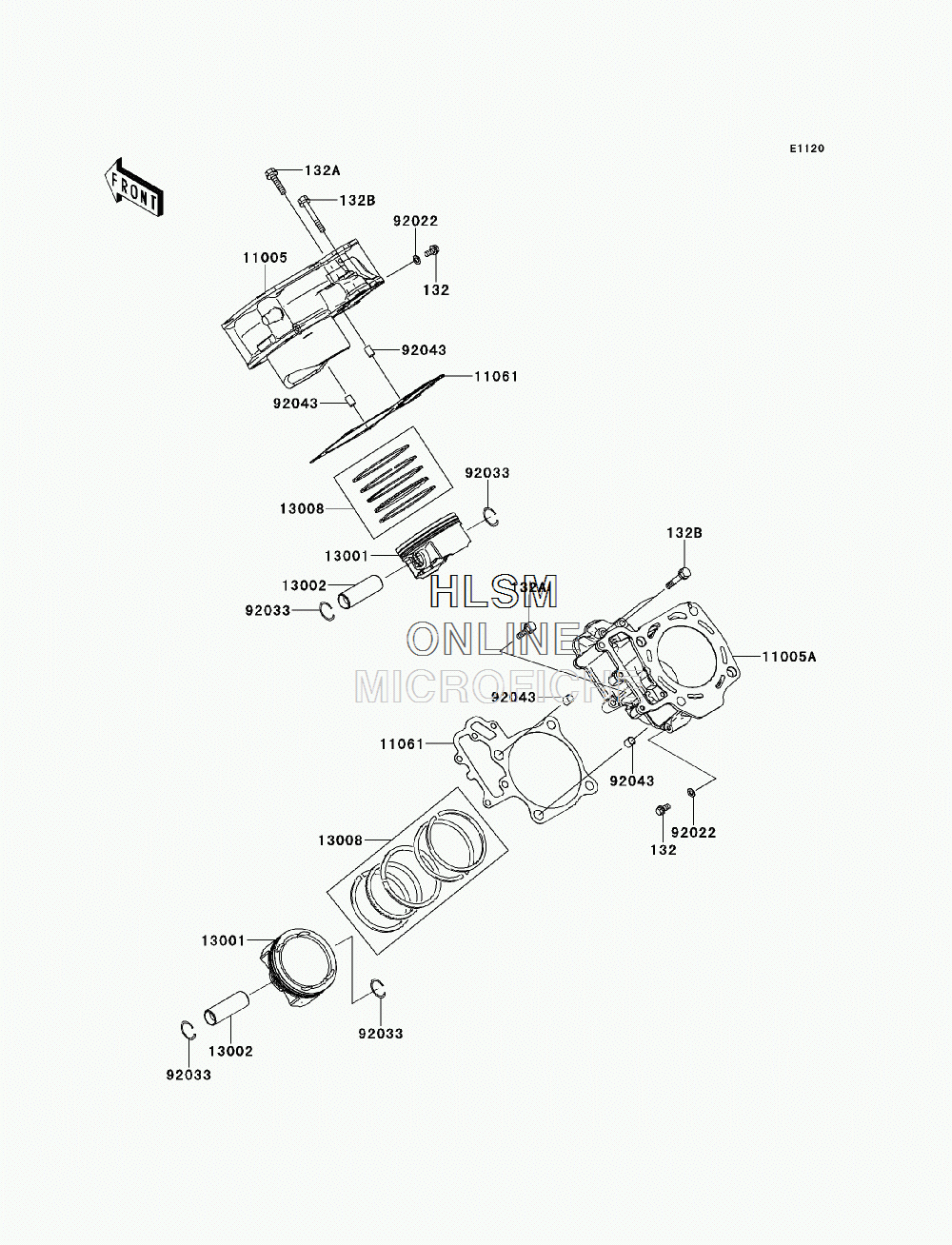

CYLINDER W/ PISTON(S) для Kawasaki TERYX4 LE (KRT800CEF) - 2014 года выпуска
-
№АртикулНазвание
-
132132BA0612 BOLT-FLANGED-SMALL, 6X12BOLT-FLANGED-SMALL, 6X12
-
132A132BA0630 BOLT-FLANGED-SMALL, 6X30BOLT-FLANGED-SMALL, 6X30
-
132B132BA0640 BOLT-FLANGED-SMALL, 6X40BOLT-FLANGED-SMALL, 6X40
-
1100511005-0628 CYLINDER-ENGINE, FRONTCYLINDER-ENGINE, FRONT
-
11005A11005-0629 CYLINDER-ENGINE, REARCYLINDER-ENGINE, REAR
-
1106111061-0730 GASKET, CYLINDER BASEGASKET, CYLINDER BASE
-
1300113001-0740 PISTON-ENGINEPISTON-ENGINE
-
1300213002-0711 PIN-PISTONPIN-PISTON
-
1300813008-0042 RING-SET-PISTONRING-SET-PISTON
-
9202292022-304 WASHER, 6.2X11X1WASHER, 6.2X11X1
-
9203392033-1207 RING-SNAPRING-SNAP
-
9204392043-4009 PIN, 10.1X12X14PIN, 10.1X12X14
