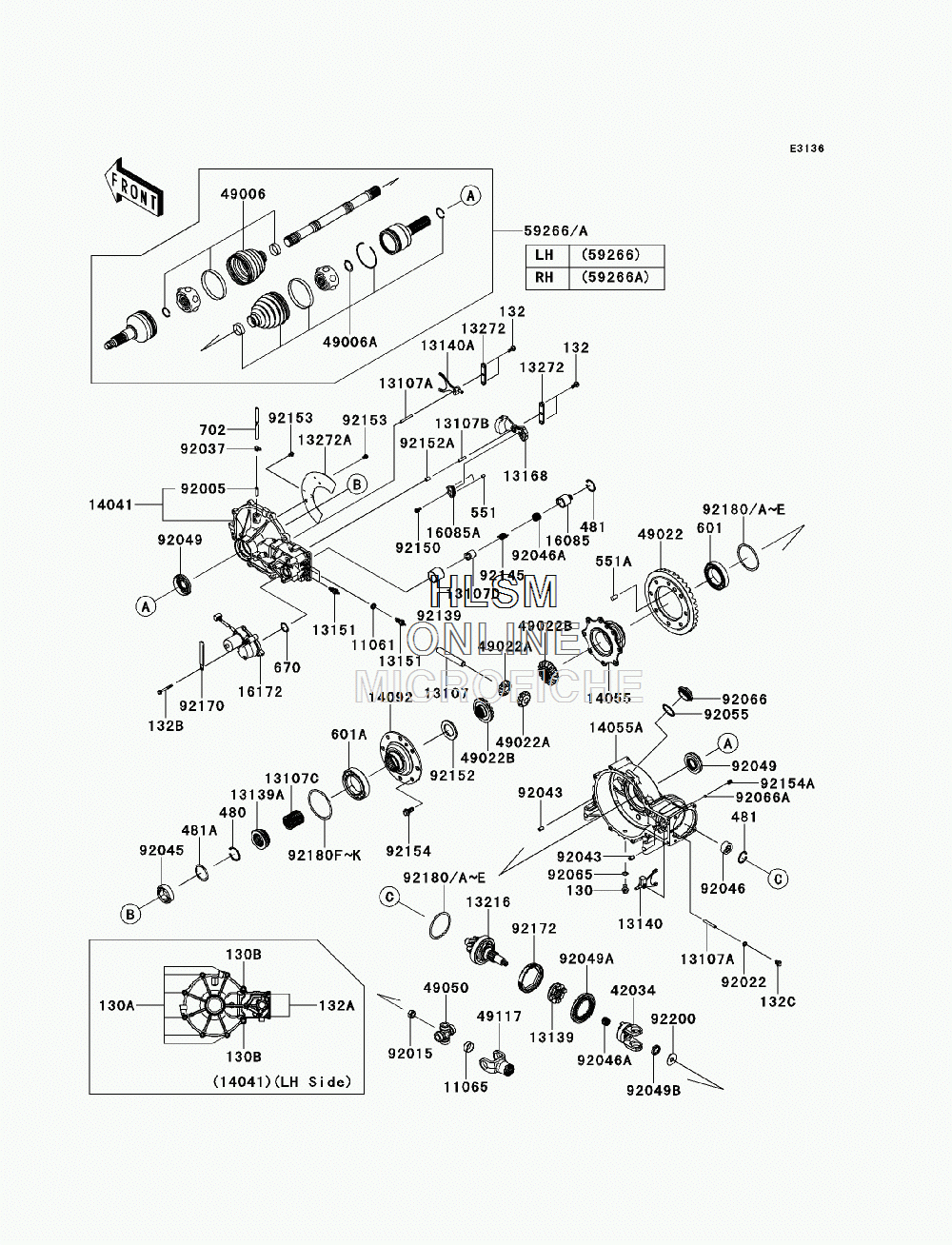

DRIVE SHAFT (FRONT) (UP TO JKBRTCB1 EB500852) для Kawasaki TERYX4 (KRT800BEF) - 2014 года выпуска`
-
№АртикулНазвание
-
130130BA1014 BOLT-FLANGED, 10X14BOLT-FLANGED, 10X14
-
130A130CA0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
130B130CA1030 BOLT-FLANGED, 10X30BOLT-FLANGED, 10X30
-
132132BA0616 BOLT-FLANGED-SMALL, 6X16BOLT-FLANGED-SMALL, 6X16
-
132A132BA0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
132B132BA0645 BOLT-FLANGED-SMALL, 6X45BOLT-FLANGED-SMALL, 6X45
-
132C132BA0810 BOLT-FLANGED-SMALL, 8X10BOLT-FLANGED-SMALL, 8X10
-
480480J3800 CIRCLIP-TYPE-C, 38MMCIRCLIP-TYPE-C, 38MM
-
481481J3200 CIRCLIP-TYPE-C, 32MMCIRCLIP-TYPE-C, 32MM
-
481A481J5200 CIRCLIPCIRCLIP
-
551551A0410 PIN-DOWELPIN-DOWEL
-
551A551A1016 PIN-DOWELPIN-DOWEL
-
601601B6010 BEARING-BALLBEARING-BALL
-
601A601B6011 BEARING-BALLBEARING-BALL
-
670670D3022 O RINGO RING
-
702702A05930 TUBE-RUBBER, 5X8X930TUBE-RUBBER, 5X8X930
-
1106111061-0805 GASKET, 10.5X16X3GASKET, 10.5X16X3
-
1106511065-0073 CAPCAP
-
1310713107-0245 SHAFT, CROSSSHAFT, CROSS
-
13107A13107-0246 SHAFT, 6X43.7SHAFT, 6X43.7
-
13107B13107-0729 SHAFT, 6X25.1SHAFT, 6X25.1
-
13107C13107-0746 SHAFT, 29X38X43.5SHAFT, 29X38X43.5
-
13107D13107-0747 SHAFTSHAFT
-
1313913139-0017 SHIFTERSHIFTER
-
13139A13139-0627 SHIFTER, DIFFERENTIAL LOCKSHIFTER, DIFFERENTIAL LOCK
-
1314013140-0069 FORK-SHIFTFORK-SHIFT
-
13140A13140-0070 FORK-SHIFTFORK-SHIFT
-
1315113151-1086 SWITCH-COMPSWITCH-COMP
-
1316813168-0731 LEVERLEVER
-
1321613216-0873 GEAR-COMP, BEVEL, 8TGEAR-COMP, BEVEL, 8T
-
1327213272-0985 PLATEPLATE
-
13272A13272-0986 PLATEPLATE
-
1404114041-0554 COVER-COMP, LEFT HANDCOVER-COMP, LEFT HAND
-
1405514055-0052 CASE-GEAR, CROSSCASE-GEAR, CROSS
-
14055A14055-0053 CASE-GEAR, RIGHT HANDCASE-GEAR, RIGHT HAND
-
1409214092-0269 COVER, CROSS CASECOVER, CROSS CASE
-
1608516085-0604 GEAR, 13TGEAR, 13T
-
16085A16085-0605 GEAR, 65TGEAR, 65T
-
1617216172-0025 ACTUATORACTUATOR
-
4203442034-0716 COUPLINGCOUPLING
-
4900649006-0563 BOOT, OUTSIDEBOOT, OUTSIDE
-
49006A49006-0578 BOOT, INSIDEBOOT, INSIDE
-
4902249022-0067 GEAR-BEVEL, 35TGEAR-BEVEL, 35T
-
49022A49022-0068 GEAR-BEVEL, 10TGEAR-BEVEL, 10T
-
49022B49022-0069 GEAR-BEVEL, 16TGEAR-BEVEL, 16T
-
4905049050-0034 SPIDERSPIDER
-
4911749117-0047 YOKEYOKE
-
5926659266-0047 JOINT-BALL, LEFT HANDJOINT-BALL, LEFT HAND
-
59266A59266-0048 JOINT-BALL, RIGHT HANDJOINT-BALL, RIGHT HAND
-
9200592005-1142 FITTINGFITTING
-
9201592015-1190 NUT, LOCK, 12MM, (BLACK)NUT, LOCK, 12MM, (BLACK)
-
9202292022-1488 WASHER, 8.2X14X1.0WASHER, 8.2X14X1.0
-
9203792037-1461 CLAMP, TUBECLAMP, TUBE
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-1176 BEARING-BALL, 60/28BEARING-BALL, 60/28
-
9204692046-0025 BEARING-NEEDLE, AJ501907BEARING-NEEDLE, AJ501907
-
92046A92046-1234 BEARING-NEEDLEBEARING-NEEDLE
-
9204992049-0089 SEAL-OIL, 28X60X7SEAL-OIL, 28X60X7
-
92049A92049-0166 SEAL-OIL, 55X89X9SEAL-OIL, 55X89X9
-
92049B92049-0736 SEAL-OIL, 20X28X5SEAL-OIL, 20X28X5
-
9205592055-1281 RING-O, 35.8MMRING-O, 35.8MM
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-0744 PLUG, 36X7.5PLUG, 36X7.5
-
92066A92066-1272 PLUG, 6.2X3PLUG, 6.2X3
-
9213992139-0780 BUSHING, 29X33X30BUSHING, 29X33X30
-
9214592145-0907 SPRINGSPRING
-
9215092150-1650 BOLT, SOCKET, 6X10BOLT, SOCKET, 6X10
-
9215292152-1543 COLLAR, 35X57.5X4.7COLLAR, 35X57.5X4.7
-
92152A92152-1600 COLLAR, 6X8X12.1COLLAR, 6X8X12.1
-
9215392153-0964 BOLT, FLANGED-SMALL, 6X8BOLT, FLANGED-SMALL, 6X8
-
9215492154-0550 BOLT, FLANGED, 10X23BOLT, FLANGED, 10X23
-
92154A92154-1070 BOLT, SET, SOCKET, 8X14BOLT, SET, SOCKET, 8X14
-
9217092170-1925 CLAMPCLAMP
-
9217292172-0810 SCREW, SET, 85X12.5SCREW, SET, 85X12.5
-
9218092180-0301 SHIM, 70X80X0.15SHIM, 70X80X0.15
-
92180A92180-0302 SHIM, 70X80X0.2SHIM, 70X80X0.2
-
92180B92180-0303 SHIM, 70X80X0.5SHIM, 70X80X0.5
-
92180C92180-0304 SHIM, 70X80X0.8SHIM, 70X80X0.8
-
92180D92180-0305 SHIM, 70X80X1.0SHIM, 70X80X1.0
-
92180E92180-0306 SHIM, 70X80X1.2SHIM, 70X80X1.2
-
92180F92180-0307 SHIM, 80X90X0.15SHIM, 80X90X0.15
-
92180G92180-0308 SHIM, 80X90X0.2SHIM, 80X90X0.2
-
92180H92180-0309 SHIM, 80X90X0.5SHIM, 80X90X0.5
-
92180I92180-0310 SHIM, 80X90X0.8SHIM, 80X90X0.8
-
92180J92180-0311 SHIM, 80X90X1.0SHIM, 80X90X1.0
-
92180K92180-0312 SHIM, 80X90X1.2SHIM, 80X90X1.2
-
9220092200-0831 WASHER, 12X35.5X2.5WASHER, 12X35.5X2.5
