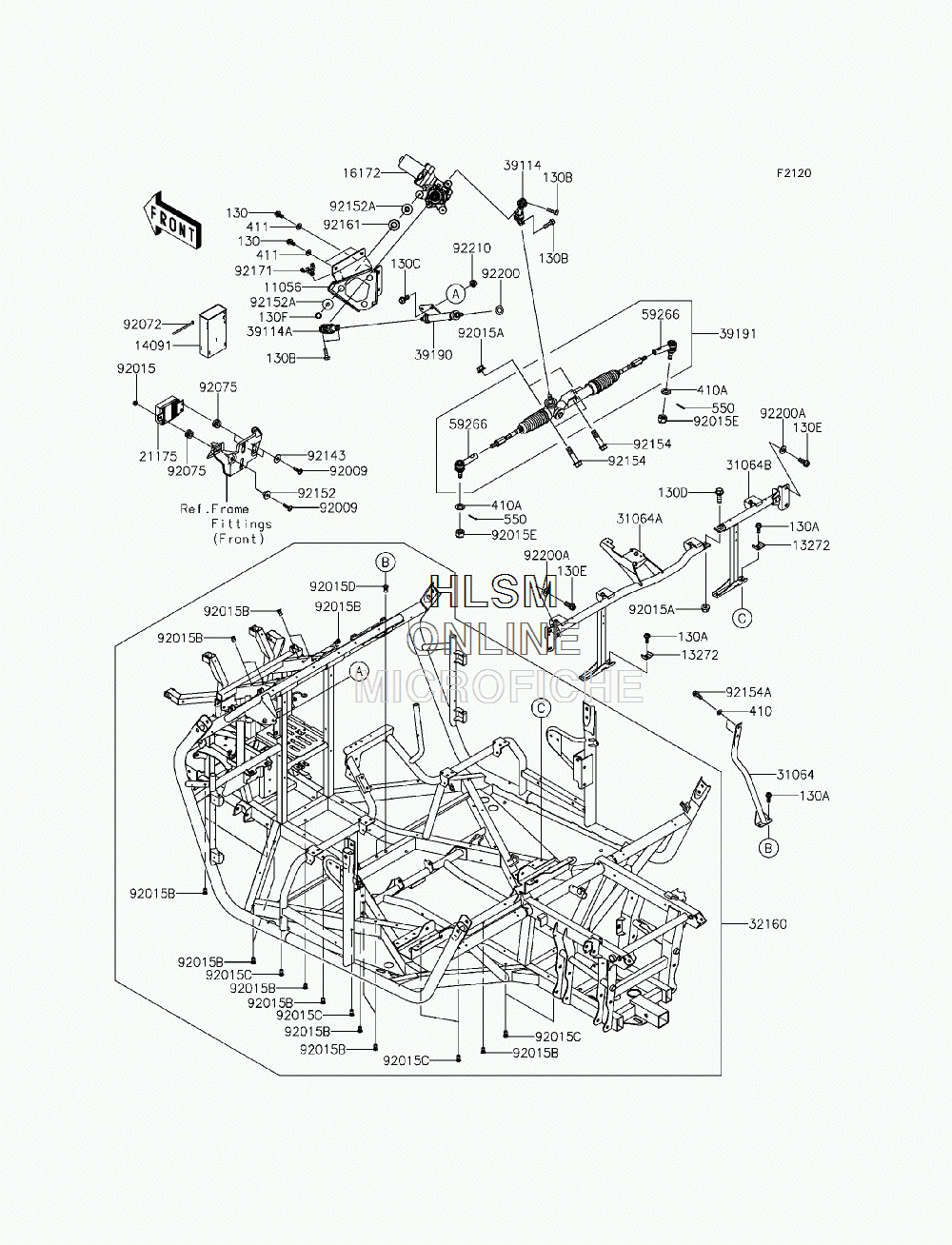

FRAME для Kawasaki TERYX (KRF800BEF) - 2014 года выпуска

  • №
    Артикул
    Название
  • 130
    130BA0816 BOLT-FLANGED, 8X16
    BOLT-FLANGED, 8X16
  • 130A
    130BA0820 BOLT-FLANGED, 8X20
    BOLT-FLANGED, 8X20
  • 130B
    130BA0825 BOLT-FLANGED, 8X25
    BOLT-FLANGED, 8X25
  • 130C
    130BA1022 BOLT-FLANGED, 10X22
    BOLT-FLANGED, 10X22
  • 130D
    130BA1235 BOLT-FLANGED, 12X35
    BOLT-FLANGED, 12X35
  • 130E
    130BB1025 BOLT-FLANGED, 10X25
    BOLT-FLANGED, 10X25
  • 130F
    130CA0845 BOLT-FLANGED, 8X45
    BOLT-FLANGED, 8X45
  • 410
    410AA0800 WASHER-PLAIN-SMALL, 8MM
    WASHER-PLAIN-SMALL, 8MM
  • 410A
    410AA1400 WASHER-PLAIN-SMALL, 14MM
    WASHER-PLAIN-SMALL, 14MM
  • 411
    411AA0800 WASHER-PLAIN
    WASHER-PLAIN
  • 550
    550AA3025 PIN-COTTER, 3.0X25
    PIN-COTTER, 3.0X25
  • 11056
    11056-1416 BRACKET, EPS ACTUATOR
    BRACKET, EPS ACTUATOR
  • 13272
    13272-1336 PLATE
    PLATE
  • 14091
    14091-7560 COVER, ECU
    COVER, ECU
  • 16172
    16172-0557 ACTUATOR, EPS
    ACTUATOR, EPS
  • 21175
    21175-0809 CONTROL UNIT-ELECTRONIC
    CONTROL UNIT-ELECTRONIC
  • 31064
    31064-0594 PIPE-COMP
    PIPE-COMP
  • 31064A
    31064-0624 PIPE-COMP, SUB FRAME, SEAT, LEFT HAND
    PIPE-COMP, SUB FRAME, SEAT, LEFT HAND
  • 31064B
    31064-0632 PIPE-COMP, SUB FRAME, SEAT, RIGHT HAND
    PIPE-COMP, SUB FRAME, SEAT, RIGHT HAND
  • 32160
    32160-0726 FRAME-COMP
    FRAME-COMP
  • 39114
    39114-0306 SHAFT-COMP-STRG
    SHAFT-COMP-STRG
  • 39114A
    39114-0308 SHAFT-COMP-STRG
    SHAFT-COMP-STRG
  • 39190
    39190-7501 SHAFT-ASSY-STEERING
    SHAFT-ASSY-STEERING
  • 39191
    39191-0018 GEAR-ASSY-STEERING
    GEAR-ASSY-STEERING
  • 59266
    59266-0706 JOINT-BALL
    JOINT-BALL
  • 92009
    92009-1465 SCREW, 6X25
    SCREW, 6X25
  • 92015
    92015-1367 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92015A
    92015-1433 NUT, LOCK, FLANGED, 12MM
    NUT, LOCK, FLANGED, 12MM
  • 92015B
    92015-1791 NUT, POP, 6MM, L=15
    NUT, POP, 6MM, L=15
  • 92015C
    92015-1792 NUT, POP, 6MM, L=16.5
    NUT, POP, 6MM, L=16.5
  • 92015D
    92015-1793 NUT, POP, 8MM, L=16.5
    NUT, POP, 8MM, L=16.5
  • 92015E
    92015-1841 NUT, CASTLE, 14MM
    NUT, CASTLE, 14MM
  • 92072
    92072-030 BAND, L=123
    BAND, L=123
  • 92075
    92075-1123 DAMPER, RUBBER
    DAMPER, RUBBER
  • 92143
    92143-1025 COLLAR, L=6.5
    COLLAR, L=6.5
  • 92152
    92152-0957 COLLAR, 6.5X10X13.3
    COLLAR, 6.5X10X13.3
  • 92152A
    92152-7513 COLLAR
    COLLAR
  • 92154
    92154-1008 BOLT, FLANGED, 12X50
    BOLT, FLANGED, 12X50
  • 92154A
    92154-1130 BOLT, FLANGED, 8X20
    BOLT, FLANGED, 8X20
  • 92161
    92161-7517 DAMPER, ACTUATOR
    DAMPER, ACTUATOR
  • 92171
    92171-0453 CLAMP
    CLAMP
  • 92200
    92200-0460 WASHER, 15X25X1.6
    WASHER, 15X25X1.6
  • 92200A
    92200-7506 WASHER, 10.2X23X2.5
    WASHER, 10.2X23X2.5
  • 92210
    92210-1080 NUT, LOCK, FLANGED, 10MM
    NUT, LOCK, FLANGED, 10MM
