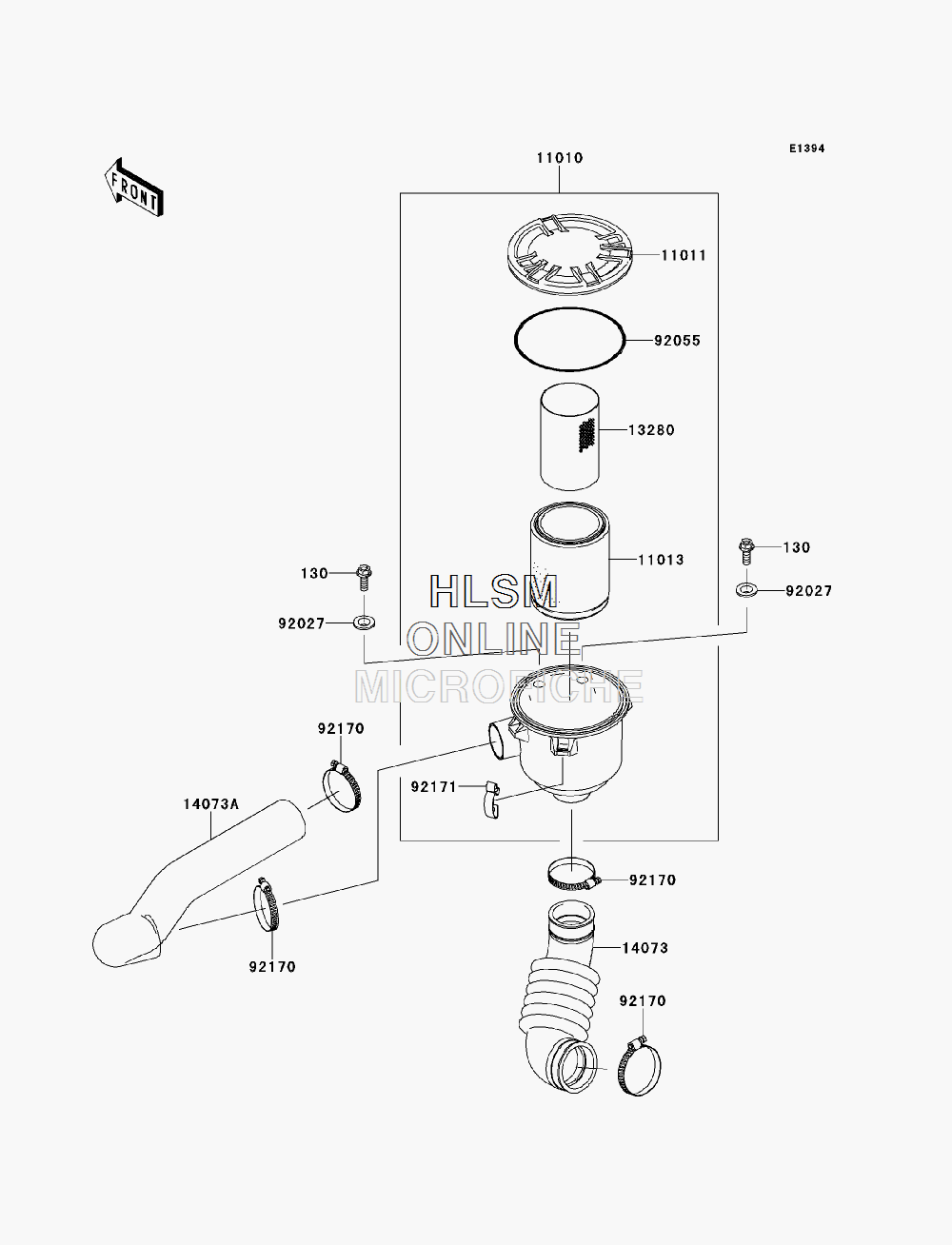

AIR CLEANER W/ BELT CONVERTER для Kawasaki MULE 610 4X4 XC (KAF400DEF) - 2014 года выпуска`
-
№АртикулНазвание
-
130130BB0822 BOLT-FLANGED, 8X22BOLT-FLANGED, 8X22
-
1101011010-0172 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101111011-0135 CASE-AIR FILTER, CAPCASE-AIR FILTER, CAP
-
1101311013-0037 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1328013280-0312 HOLDERHOLDER
-
1407314073-0061 DUCT, AIR FILTER-CASEDUCT, AIR FILTER-CASE
-
14073A14073-0080 DUCT, BAR-AIR FILTERDUCT, BAR-AIR FILTER
-
9202792027-1354 COLLARCOLLAR
-
9205592055-0167 RING-O, 122X4RING-O, 122X4
-
9217092170-1674 CLAMPCLAMP
-
9217192171-0225 CLAMPCLAMP
