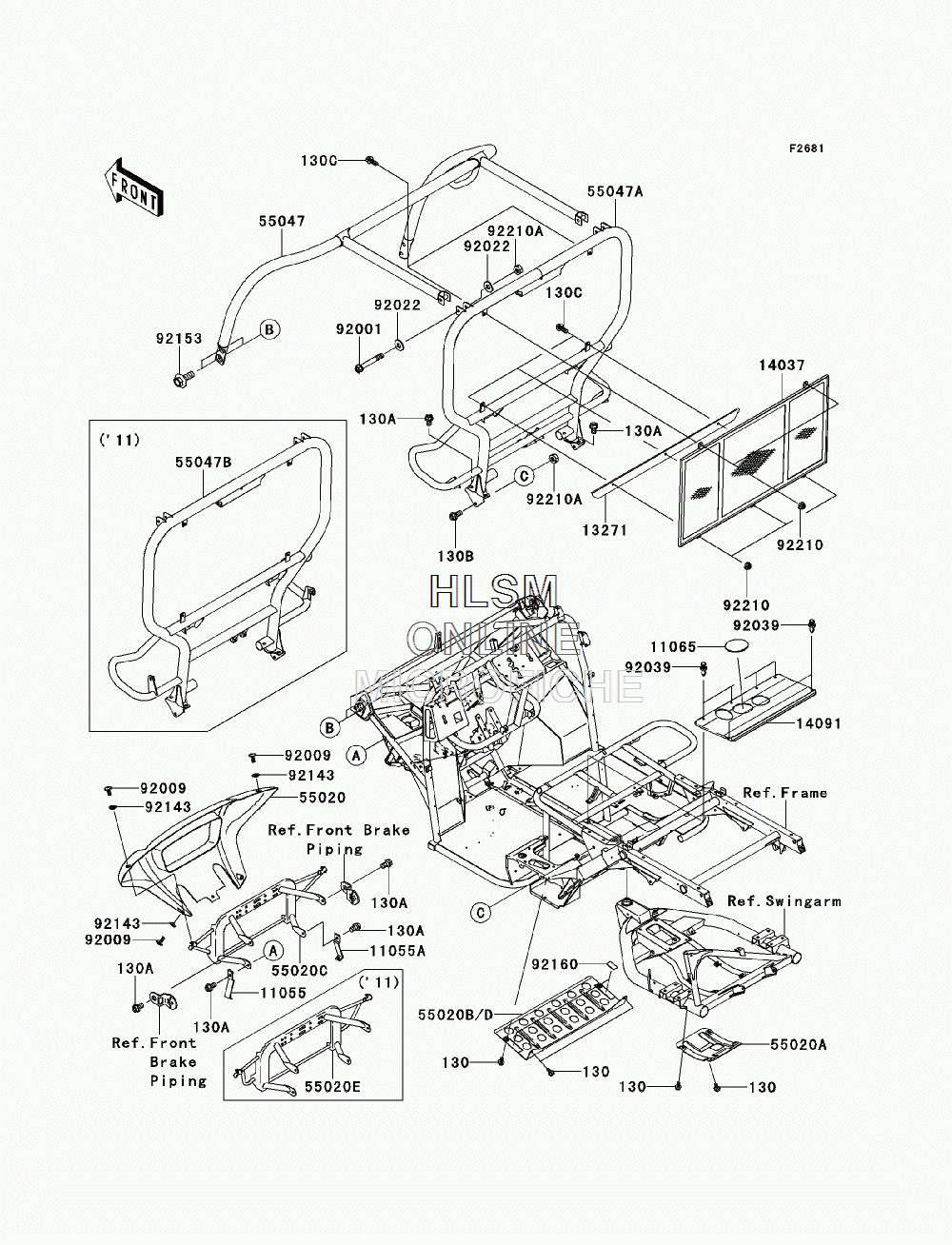

GUARD(S) / CAB FRAME для Kawasaki MULE 600 (KAF400BEF) - 2014 года выпуска`
-
№АртикулНазвание
-
130130BA0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
130A130BA1016 BOLT-FLANGED,10X16BOLT-FLANGED,10X16
-
130B130BA1020 BOLT-FLANGED,10X20BOLT-FLANGED,10X20
-
130C130BB0820 BOLT-FLANGED,8X20BOLT-FLANGED,8X20
-
1105511055-7510 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
11055A11055-7511 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
1106511065-1053-6Z CAP,(F.BLACK)CAP,(F.BLACK)
-
1327113271-0560-388 PLATE,SCREEN,(T.BLACK)PLATE,SCREEN,(T.BLACK)
-
1403714037-0035-388 SCREEN,(T.BLACK)SCREEN,(T.BLACK)
-
1409114091-0355 COVERCOVER
-
5502055020-0090-6Z GUARD, FRONT BUMPER,(F.BLACK)GUARD, FRONT BUMPER,(F.BLACK)
-
55020A55020-0141 GUARD,DIFFGUARD,DIFF
-
55020C55020-0777 GUARD, FRONTGUARD, FRONT
-
55020D55020-0883 GUARDGUARD
-
5504755047-0006-388 BAR-COMP, FRONT,(T.BLACK)BAR-COMP, FRONT,(T.BLACK)
-
55047A55047-0329-388 BAR-COMP, REAR,(T.BLACK)BAR-COMP, REAR,(T.BLACK)
-
9200192001-1618 BOLT,FLANGED,10X70BOLT,FLANGED,10X70
-
9200992009-1621 SCREW,6X16SCREW,6X16
-
9202292022-1396 WASHER,10.5X26X2.3,(BLACK)WASHER,10.5X26X2.3,(BLACK)
-
9203992039-1229 RIVETRIVET
-
9214392143-1087 COLLARCOLLAR
-
9215392153-1282 BOLT,FLANGED,14X36BOLT,FLANGED,14X36
-
9216092160-1102 DAMPERDAMPER
-
9221092210-0005 NUT,FLANGED,LOCK,8MMNUT,FLANGED,LOCK,8MM
-
92210A92210-1204 NUT,LOCK,10MMNUT,LOCK,10MM
