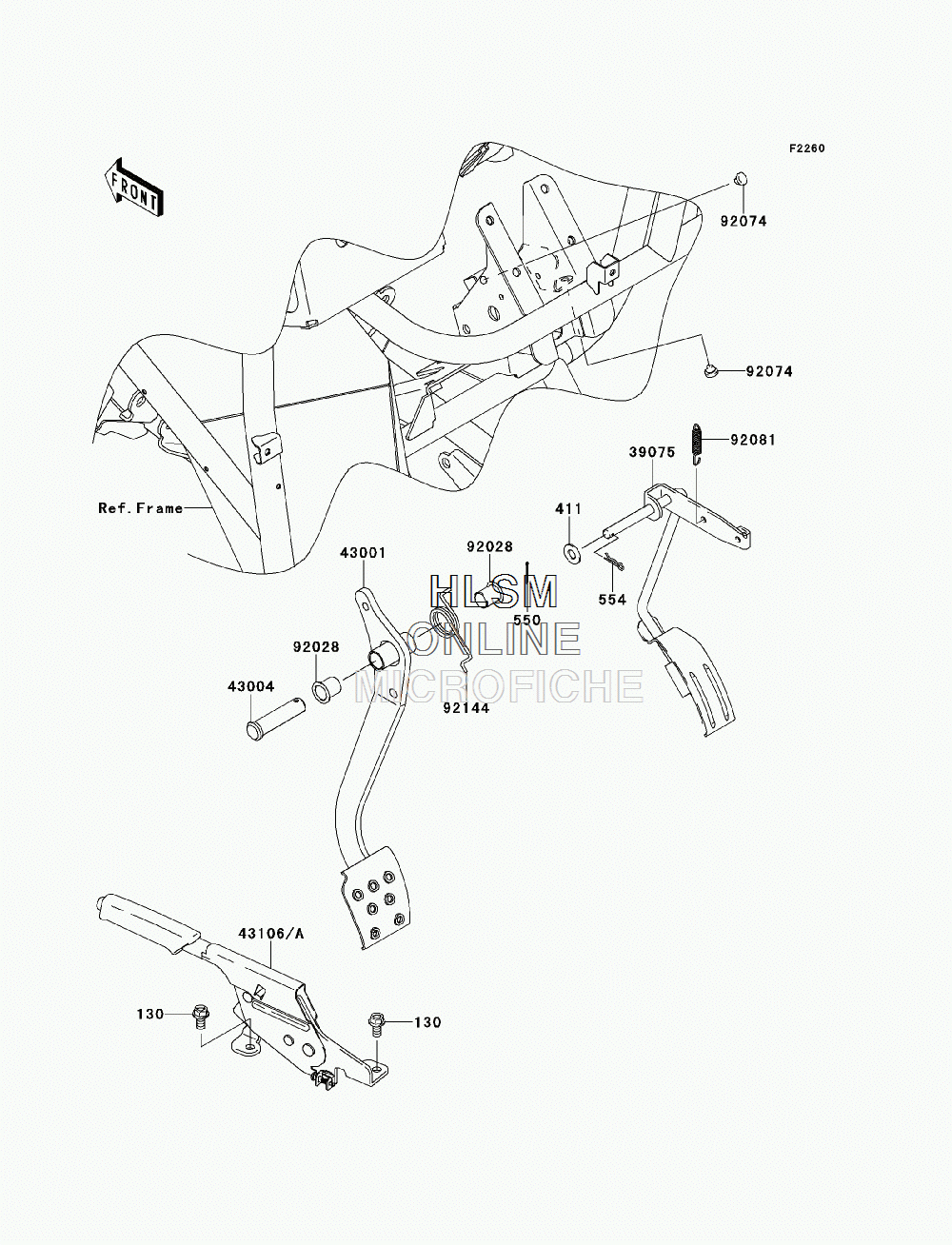

BRAKE PEDAL W/ THROTTLE LEVER для Kawasaki MULE 600 (KAF400BEF) - 2014 года выпуска`
-
№АртикулНазвание
-
130130AA0816 BOLT-FLANGED,8X16BOLT-FLANGED,8X16
-
411411AA1000 WASHER-PLAIN,10MMWASHER-PLAIN,10MM
-
550550AA2525 PIN-COTTER,2.5X25PIN-COTTER,2.5X25
-
554554DA1000 PIN-SNAP,10MMPIN-SNAP,10MM
-
3907539075-0005 LEVER-THROTTLELEVER-THROTTLE
-
4300143001-7502 LEVER-BRAKE,PEDALLEVER-BRAKE,PEDAL
-
4300443004-1128 SHAFT-BRAKESHAFT-BRAKE
-
43106A43106-7502 LEVER-ASSY-PARKING BRAKELEVER-ASSY-PARKING BRAKE
-
9202892028-1571 BUSHINGBUSHING
-
9207492074-028 PLUG,7X2PLUG,7X2
-
9208192081-1922 SPRINGSPRING
-
9214492144-1536 SPRINGSPRING
