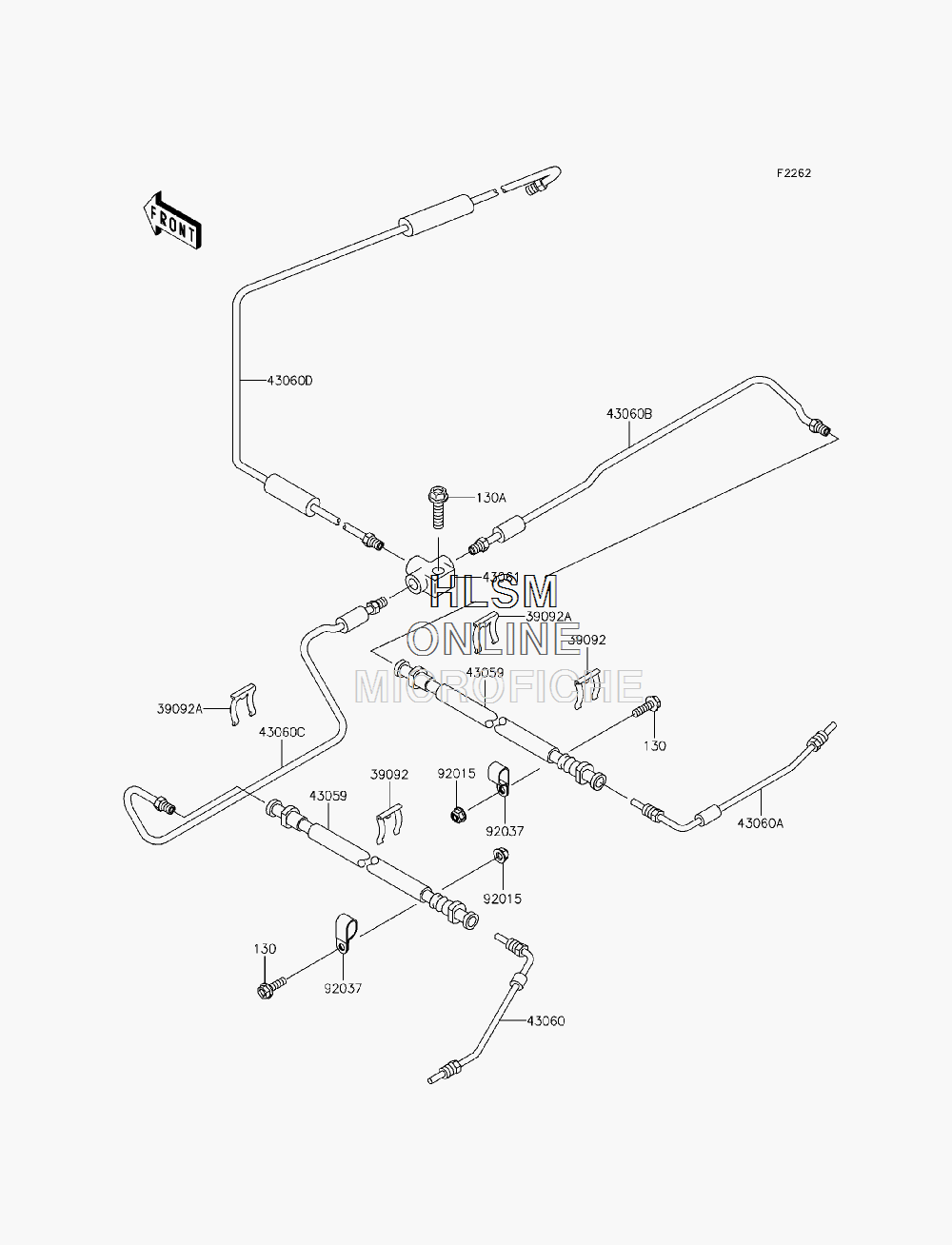

BRAKE PIPING для Kawasaki MULE 4010 TRANS4X4 (KAF620REF) - 2014 года выпуска`
-
№АртикулНазвание
-
130130AA0620 BOLT-FLANGED,6X20BOLT-FLANGED,6X20
-
130A130AA0830 BOLT-FLANGED,8X30BOLT-FLANGED,8X30
-
3909239092-1052 PIN-HAIRPIN-HAIR
-
39092A39092-1059 PIN-HAIRPIN-HAIR
-
4305943059-1490 HOSE-BRAKE, REARHOSE-BRAKE, REAR
-
4306043060-1083 PIPE-BRAKE, REAR, LEFT HANDPIPE-BRAKE, REAR, LEFT HAND
-
43060A43060-1084 PIPE-BRAKE, REAR, RIGHT HANDPIPE-BRAKE, REAR, RIGHT HAND
-
43060B43060-7503 PIPE-BRAKE,MIDDLE, RIGHT HANDPIPE-BRAKE,MIDDLE, RIGHT HAND
-
43060C43060-7504 PIPE-BRAKE,MIDDLE, LEFT HANDPIPE-BRAKE,MIDDLE, LEFT HAND
-
43060D43060-7505 PIPE-BRAKE, FRONTPIPE-BRAKE, FRONT
-
4306143061-1063 JOINT-BRAKEJOINT-BRAKE
-
9201592015-1675 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
9203792037-1608 CLAMPCLAMP
