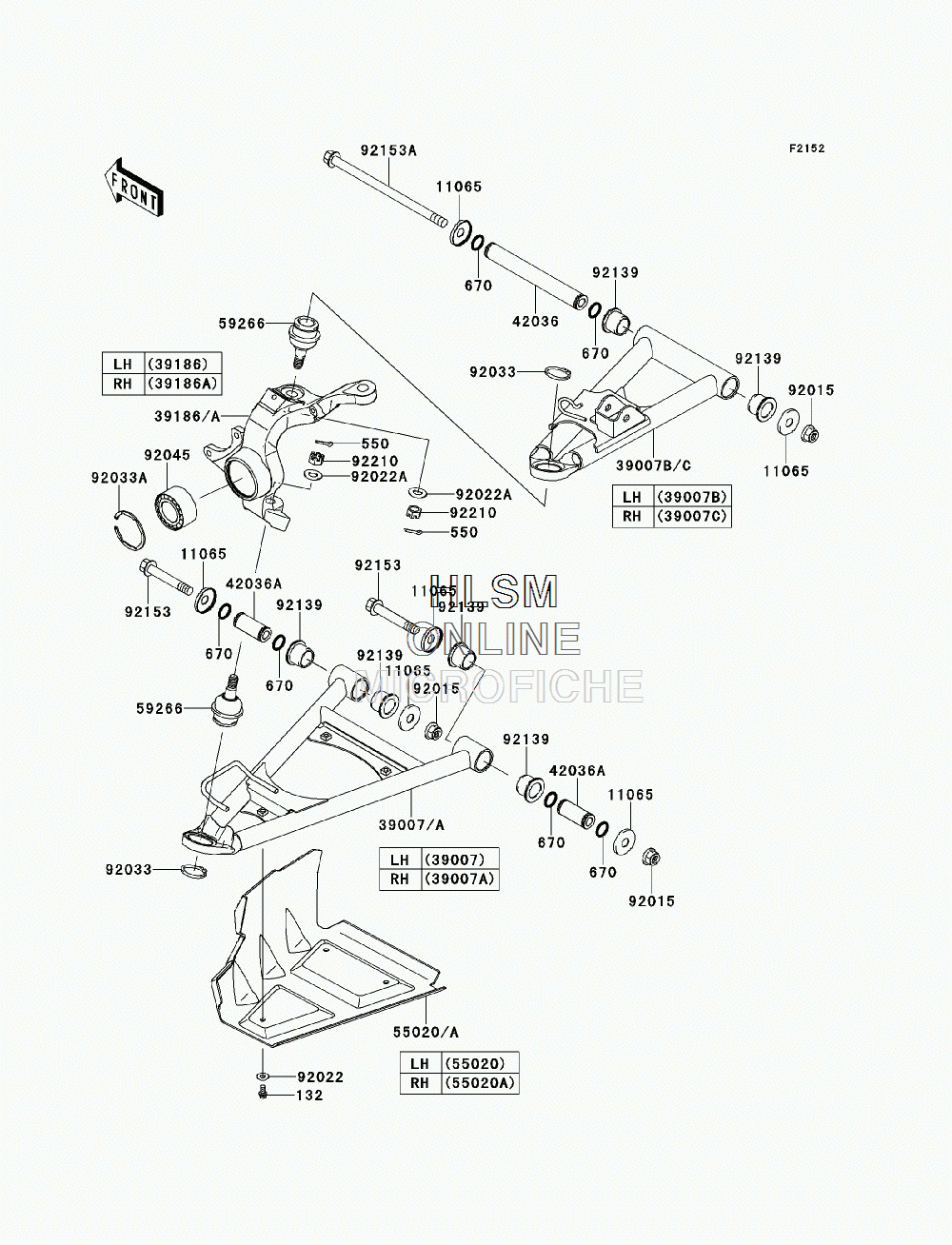

SUSPENSION - FRONT для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SDF) - 2013 года выпуска

  • №
    Артикул
    Название
  • 132
    132BA0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 550
    550AA3025 PIN-COTTER, 3.0X25
    PIN-COTTER, 3.0X25
  • 670
    670B2018 O RING, 18MM
    O RING, 18MM
  • 11065
    11065-0253 CAP
    CAP
  • 39007
    39007-0161 ARM-SUSP, FRONT, LWR, LEFT HAND
    ARM-SUSP, FRONT, LWR, LEFT HAND
  • 39007A
    39007-0162 ARM-SUSP, FRONT, LWR, RIGHT HAND
    ARM-SUSP, FRONT, LWR, RIGHT HAND
  • 39007B
    39007-0353 ARM-SUSP, FRONT, UPP, LEFT HAND
    ARM-SUSP, FRONT, UPP, LEFT HAND
  • 39007C
    39007-0354 ARM-SUSP, FRONT, UPP, RIGHT HAND
    ARM-SUSP, FRONT, UPP, RIGHT HAND
  • 39186
    39186-0096 KNUCKLE, FRONT, LEFT HAND
    KNUCKLE, FRONT, LEFT HAND
  • 39186A
    39186-0097 KNUCKLE, FRONT, RIGHT HAND
    KNUCKLE, FRONT, RIGHT HAND
  • 42036
    42036-0061 SLEEVE
    SLEEVE
  • 42036A
    42036-0062 SLEEVE
    SLEEVE
  • 55020
    55020-0308 GUARD, FRONT, LEFT HAND
    GUARD, FRONT, LEFT HAND
  • 55020A
    55020-0309 GUARD, FRONT, RIGHT HAND
    GUARD, FRONT, RIGHT HAND
  • 59266
    59266-0014 JOINT-BALL
    JOINT-BALL
  • 92015
    92015-1433 NUT, LOCK, FLANGED, 12MM
    NUT, LOCK, FLANGED, 12MM
  • 92022
    92022-1344 WASHER, 7X16X1.2
    WASHER, 7X16X1.2
  • 92022A
    92022-1831 WASHER
    WASHER
  • 92033
    92033-1262 RING-SNAP, C-TYPE, 32MM
    RING-SNAP, C-TYPE, 32MM
  • 92033A
    92033-1274 RING-SNAP, 55MM
    RING-SNAP, 55MM
  • 92045
    92045-0123 BEARING-BALL, DAC3055W-3CS31
    BEARING-BALL, DAC3055W-3CS31
  • 92139
    92139-0231 BUSHING
    BUSHING
  • 92153
    92153-1733 BOLT, FLANGED, 12X76.5
    BOLT, FLANGED, 12X76.5
  • 92153A
    92153-1958 BOLT, FLANGED, 12X213
    BOLT, FLANGED, 12X213
  • 92210
    92210-0395 NUT, CASTLE, 12MM
    NUT, CASTLE, 12MM
