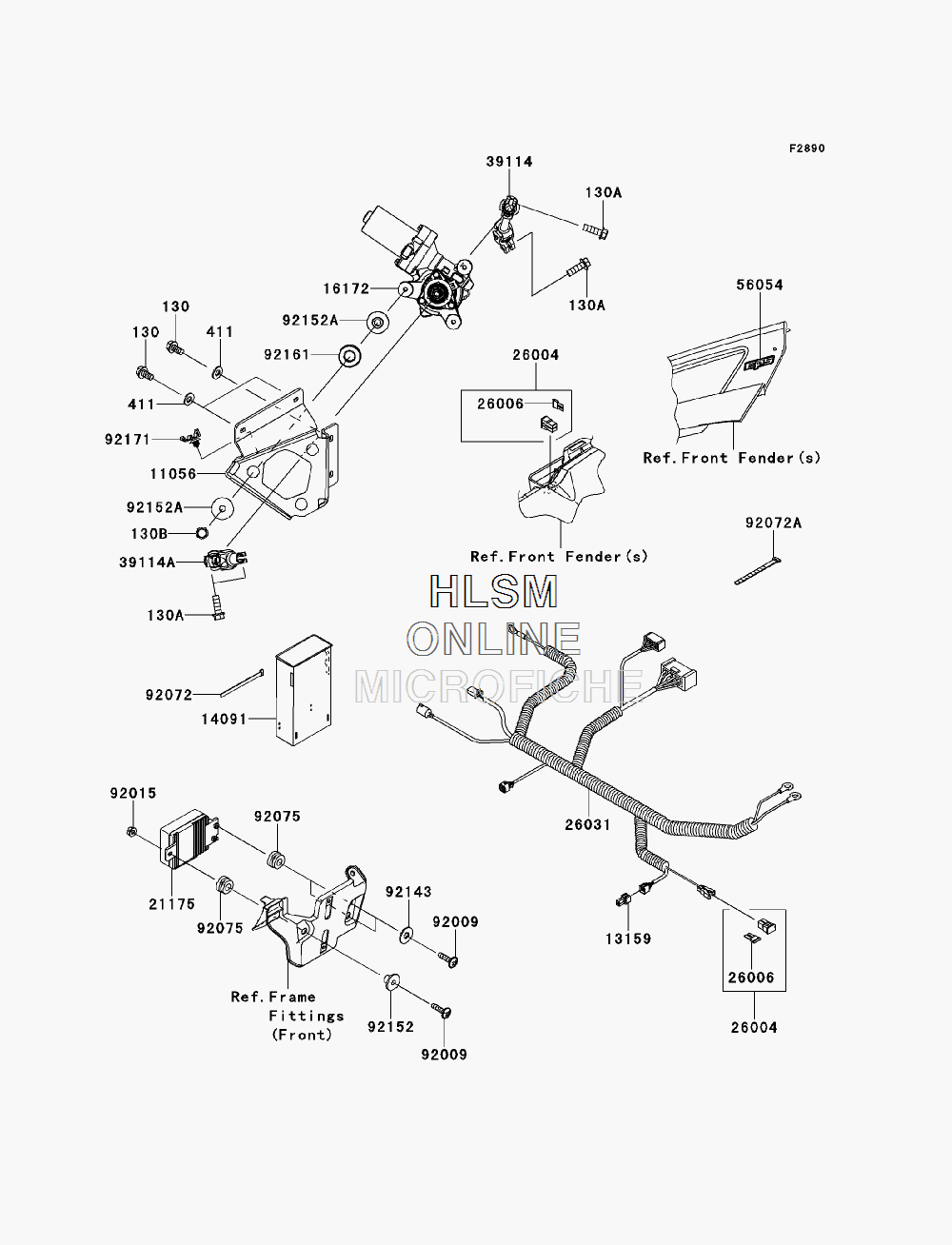

POWER STEERING (EPS) (OPTIONAL) для Kawasaki TERYX4 750 4X4 (KRT750ACF) - 2012 года выпуска`
-
№АртикулНазвание
-
130130BA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
130A130BA0825 BOLT-FLANGED, 8X25BOLT-FLANGED, 8X25
-
130B130CA0845 BOLT-FLANGED, 8X45BOLT-FLANGED, 8X45
-
411411AA0800 WASHER-PLAINWASHER-PLAIN
-
1105611056-1416 BRACKET, EPS ACTUATORBRACKET, EPS ACTUATOR
-
1315913159-0014 CONNECTORCONNECTOR
-
1409114091-7560 COVER, ECUCOVER, ECU
-
1617216172-0557 ACTUATOR, EPSACTUATOR, EPS
-
2117521175-0809 CONTROL UNIT-ELECTRONICCONTROL UNIT-ELECTRONIC
-
2600426004-1093 FUSE-ASSY, 40AFUSE-ASSY, 40A
-
2600626006-0014 FUSE, SLOW BLOW, BT, 40A, (GREEN)FUSE, SLOW BLOW, BT, 40A, (GREEN)
-
2603126031-1180 HARNESSHARNESS
-
3911439114-0306 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
39114A39114-0308 SHAFT-COMP-STRGSHAFT-COMP-STRG
-
5605456054-1201 MARK, FRONT FENDER, EPSMARK, FRONT FENDER, EPS
-
9200992009-1465 SCREW, 6X25SCREW, 6X25
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9207292072-030 BAND, L=123BAND, L=123
-
92072A92072-1239 BAND, L=188BAND, L=188
-
9207592075-1123 DAMPER, RUBBERDAMPER, RUBBER
-
9214392143-1025 COLLAR, L=6.5COLLAR, L=6.5
-
9215292152-0957 COLLAR, 6.5X10X13.3COLLAR, 6.5X10X13.3
-
92152A92152-7513 COLLARCOLLAR
-
9216192161-7517 DAMPER, ACTUATORDAMPER, ACTUATOR
-
9217192171-0453 CLAMPCLAMP
