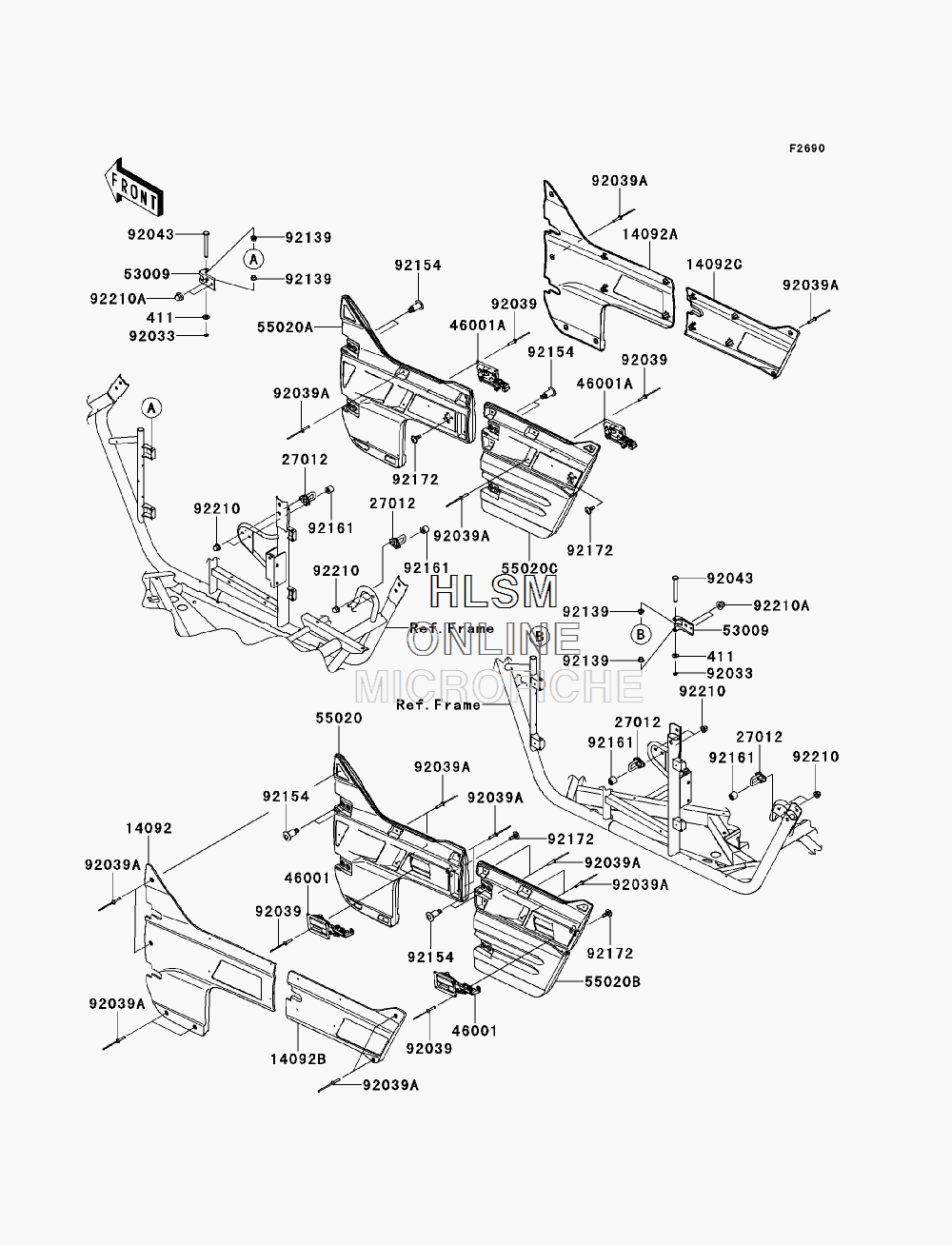

DOOR для Kawasaki TERYX4 750 4X4 EPS REALTREE AGP HD (KRT750DCF) - 2012 года выпуска

  • №
    Артикул
    Название
  • 411
    411AB0600 WASHER-PLAIN, 6.5X13X1
    WASHER-PLAIN, 6.5X13X1
  • 14092
    14092-0806-16P COVER, SIDE GUARD, FRONT, LEFT HAND, (CAMO)
    COVER, SIDE GUARD, FRONT, LEFT HAND, (CAMO)
  • 14092A
    14092-0807-16P COVER, SIDE GUARD, FRONT, RIGHT HAND, (CAMO)
    COVER, SIDE GUARD, FRONT, RIGHT HAND, (CAMO)
  • 14092B
    14092-0808-16P COVER, SIDE GUARD, REAR, LEFT HAND, (CAMO)
    COVER, SIDE GUARD, REAR, LEFT HAND, (CAMO)
  • 14092C
    14092-0809-16P COVER, SIDE GUARD, REAR, RIGHT HAND, (CAMO)
    COVER, SIDE GUARD, REAR, RIGHT HAND, (CAMO)
  • 27012
    27012-0705 HOOK
    HOOK
  • 46001
    46001-0556 HANDLE-ASSY, SIDE GUARD, LEFT HAND
    HANDLE-ASSY, SIDE GUARD, LEFT HAND
  • 46001A
    46001-0557 HANDLE-ASSY, SIDE GUARD, RIGHT HAND
    HANDLE-ASSY, SIDE GUARD, RIGHT HAND
  • 53009
    53009-0303 HINGE
    HINGE
  • 55020
    55020-0737 GUARD, SIDE, FRONT, LEFT HAND
    GUARD, SIDE, FRONT, LEFT HAND
  • 55020A
    55020-0738 GUARD, SIDE, FRONT, RIGHT HAND
    GUARD, SIDE, FRONT, RIGHT HAND
  • 55020B
    55020-0739 GUARD, SIDE, REAR, LEFT HAND
    GUARD, SIDE, REAR, LEFT HAND
  • 55020C
    55020-0740 GUARD, SIDE, REAR, RIGHT HAND
    GUARD, SIDE, REAR, RIGHT HAND
  • 92033
    92033-0719 RING-SNAP
    RING-SNAP
  • 92039
    92039-0703 RIVET, 4.0X17.5
    RIVET, 4.0X17.5
  • 92039A
    92039-0704 RIVET, 4.9X19.8
    RIVET, 4.9X19.8
  • 92043
    92043-0743 PIN, 6X56
    PIN, 6X56
  • 92139
    92139-0709 BUSHING, 6X8X6
    BUSHING, 6X8X6
  • 92154
    92154-0712 BOLT, SOCKET, 8X30
    BOLT, SOCKET, 8X30
  • 92161
    92161-1456 DAMPER, 9X28X24.3
    DAMPER, 9X28X24.3
  • 92172
    92172-0711 SCREW, 6X16
    SCREW, 6X16
  • 92210
    92210-0003 NUT, CAP, 6MM
    NUT, CAP, 6MM
  • 92210A
    92210-0488 NUT, CAP, 8MM
    NUT, CAP, 8MM
