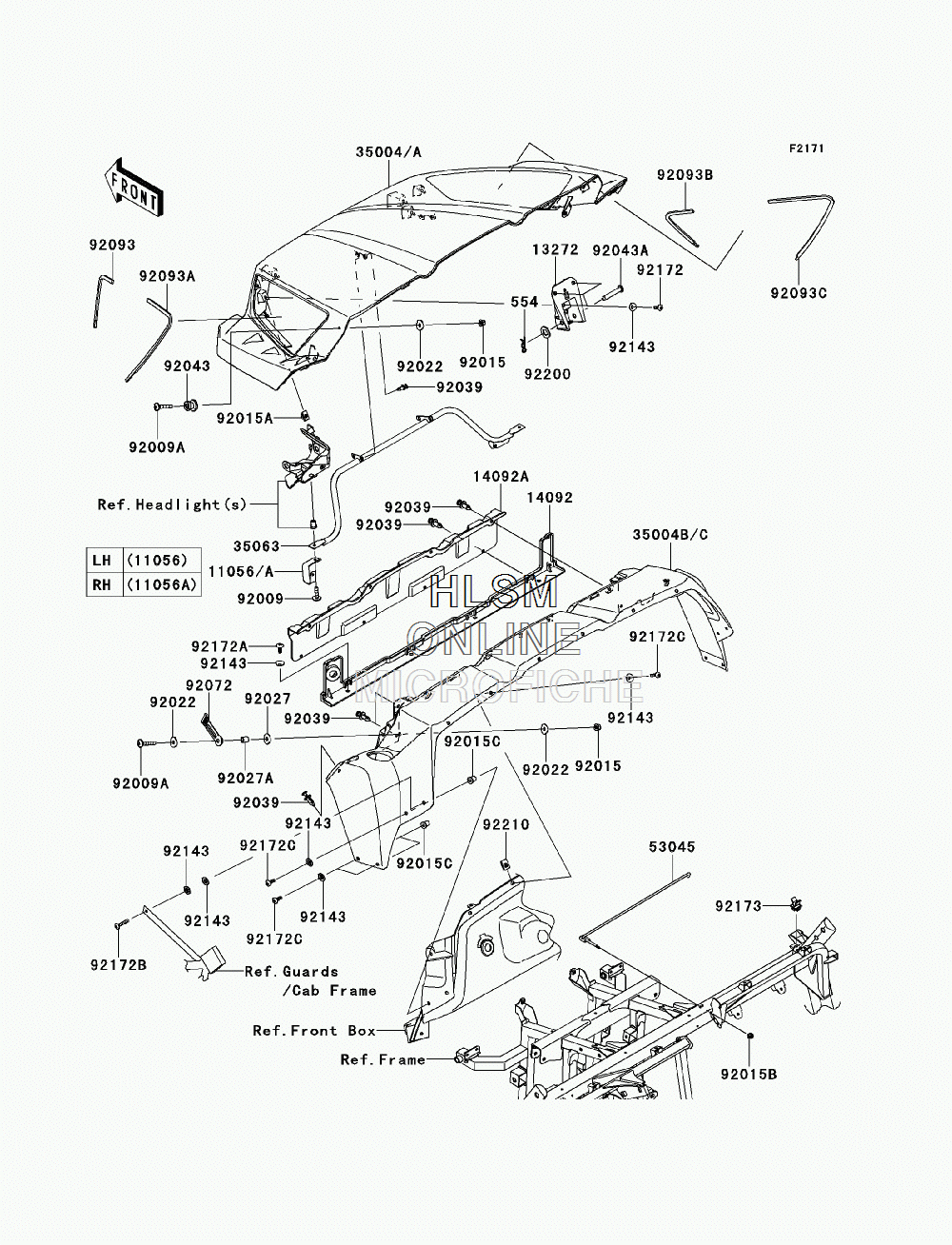

FENDER - FRONT для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SCSA) - 2012 года выпуска`
-
№АртикулНазвание
-
554554DA1200 PIN-SNAP,12MMPIN-SNAP,12MM
-
1105611056-0129 BRACKET, LEFT HANDBRACKET, LEFT HAND
-
11056A11056-0130 BRACKET, RIGHT HANDBRACKET, RIGHT HAND
-
1327213272-0871 PLATEPLATE
-
1409214092-0059 COVER,BASE PLATECOVER,BASE PLATE
-
14092A14092-0060 COVER,CHECK PLATECOVER,CHECK PLATE
-
35004A35004-0132-839 FENDER-FRONT, FRONT,S.BLACKFENDER-FRONT, FRONT,S.BLACK
-
35004C35004-0142-839 FENDER-FRONT, REAR,S.BLACKFENDER-FRONT, REAR,S.BLACK
-
3506335063-0677 STAY,HEAD LAMPSTAY,HEAD LAMP
-
5304553045-0018 HOOK-ASSYHOOK-ASSY
-
9200992009-1465 SCREW,6X25SCREW,6X25
-
92009A92009-1672 SCREW,6X35SCREW,6X35
-
9201592015-1339 NUT,LOCK,FLANGED,6MMNUT,LOCK,FLANGED,6MM
-
92015A92015-1627 NUT,5MMNUT,5MM
-
92015B92015-1752 NUT,LOCK,FLANGED,5MMNUT,LOCK,FLANGED,5MM
-
92015C92015-1757 NUT,WELL,5MMNUT,WELL,5MM
-
9202292022-193 WASHER,6.5X20X1.6,WHITEWASHER,6.5X20X1.6,WHITE
-
9202792027-1260 COLLAR,L=5.1COLLAR,L=5.1
-
92027A92027-162 COLLAR,6.8X10X12COLLAR,6.8X10X12
-
9203992039-1229 RIVETRIVET
-
9204392043-0197 PINPIN
-
92043A92043-0716 PIN,12.4X62.4PIN,12.4X62.4
-
9207292072-0144 BANDBAND
-
9209392093-0168 SEAL, FRONT, LEFT HANDSEAL, FRONT, LEFT HAND
-
92093A92093-0169 SEAL, REAR, LEFT HANDSEAL, REAR, LEFT HAND
-
92093B92093-0170 SEAL, FRONT, RIGHT HANDSEAL, FRONT, RIGHT HAND
-
92093C92093-0171 SEAL, REAR, RIGHT HANDSEAL, REAR, RIGHT HAND
-
9214392143-1087 COLLARCOLLAR
-
9217292172-0322 SCREW,5X16SCREW,5X16
-
92172A92172-0739 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
92172B92172-0783 SCREW,5X30SCREW,5X30
-
92172C92172-2081 SCREW,5X20SCREW,5X20
-
9217392173-0106 CLAMPCLAMP
-
9220092200-0451 WASHER,13X24X2WASHER,13X24X2
-
9221092210-0499 NUT,5MMNUT,5MM
