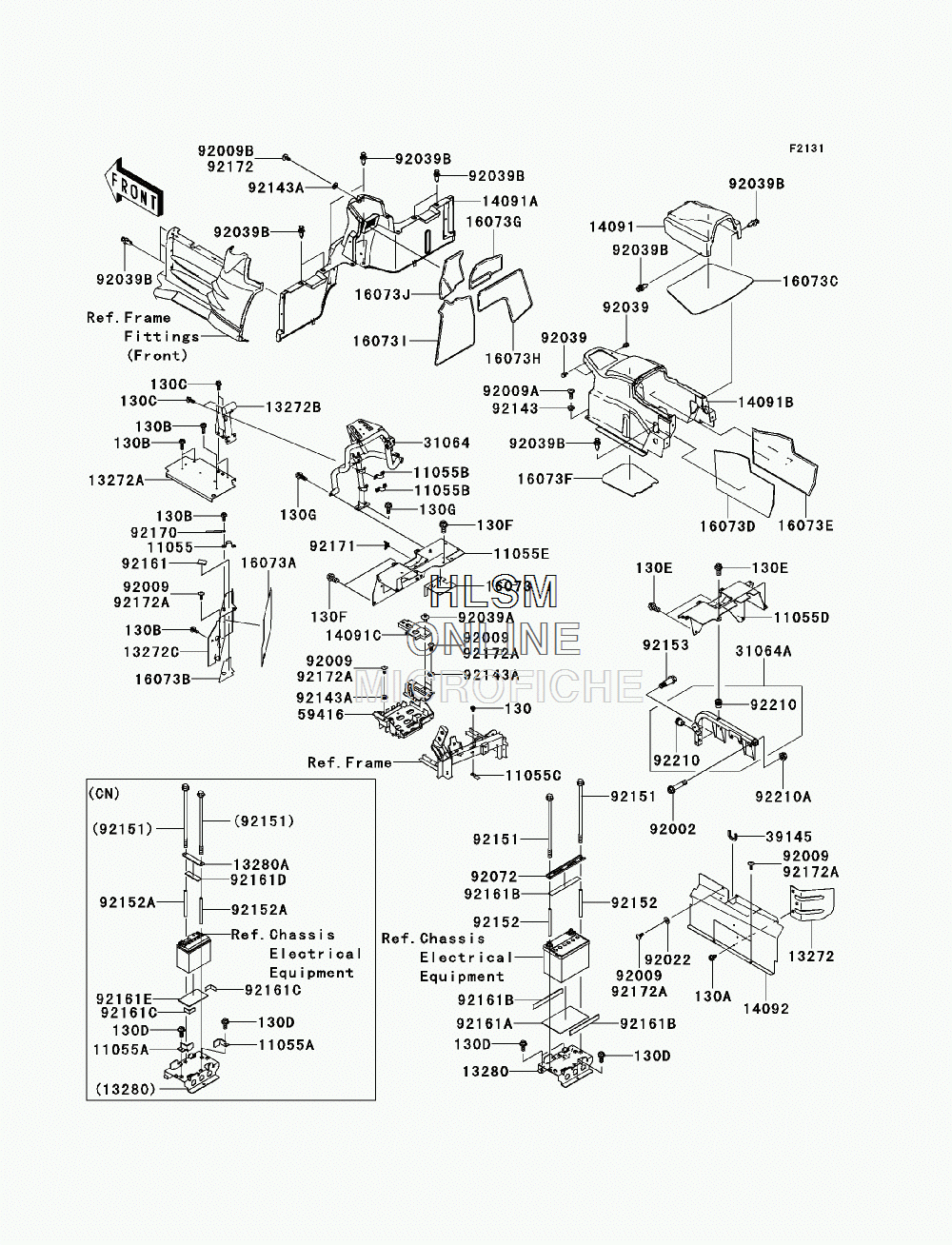

FRAME FITTINGS (REAR) для Kawasaki TERYX 750 FI 4X4 LE (KRF750PCS) - 2012 года выпуска`
-
№АртикулНазвание
-
1105511055-0419 BRACKETBRACKET
-
11055A11055-0433 BRACKET (CANADA ONLY)BRACKET (CANADA ONLY)
-
11055B11055-0896 BRACKETBRACKET
-
11055C11055-1384 BRACKETBRACKET
-
11055D11055-1409 BRACKET,SEAT LOCK PLATE, RIGHT HANDBRACKET,SEAT LOCK PLATE, RIGHT HAND
-
11055E11055-1921 BRACKET,SEAT LOCK PLATE, LEFT HANDBRACKET,SEAT LOCK PLATE, LEFT HAND
-
1327213272-0318 PLATEPLATE
-
13272A13272-0421 PLATE,TUNNEL PLATEPLATE,TUNNEL PLATE
-
13272B13272-0434 PLATEPLATE
-
13272C13272-0731 PLATE,HEAT GUARDPLATE,HEAT GUARD
-
1328013280-0361 HOLDER,BATTERYHOLDER,BATTERY
-
13280A13280-7505 HOLDER,BATTERY (CANADA ONLY)HOLDER,BATTERY (CANADA ONLY)
-
1409114091-0975-6Z COVER,CONSOLE CENTER,F.BLACKCOVER,CONSOLE CENTER,F.BLACK
-
14091A14091-0982-6Z COVER,SEAT,F.BLACKCOVER,SEAT,F.BLACK
-
14091B14091-1724-6Z COVER,CONSOLE CENTER,F.BLACKCOVER,CONSOLE CENTER,F.BLACK
-
14091C14091-1761 COVER,ELECTRICCOVER,ELECTRIC
-
1409214092-0051 COVER,HEATCOVER,HEAT
-
1607316073-0097 INSULATOR,SEAT BRACKETINSULATOR,SEAT BRACKET
-
16073A16073-0112 INSULATOR,EXHAUST PIPEINSULATOR,EXHAUST PIPE
-
16073B16073-0113 INSULATOR,EXHAUST PIPEINSULATOR,EXHAUST PIPE
-
16073C16073-0115 INSULATOR,A/C,UPPINSULATOR,A/C,UPP
-
16073D16073-0116 INSULATOR,CONSOLE, LEFT HANDINSULATOR,CONSOLE, LEFT HAND
-
16073E16073-0117 INSULATOR,CONSOLE, RIGHT HANDINSULATOR,CONSOLE, RIGHT HAND
-
16073F16073-0118 INSULATOR,CONSOLE,UPPINSULATOR,CONSOLE,UPP
-
16073G16073-0119 INSULATOR,UPPINSULATOR,UPP
-
16073H16073-0120 INSULATOR, RIGHT HANDINSULATOR, RIGHT HAND
-
16073I16073-0121 INSULATOR, LEFT HAND,LWRINSULATOR, LEFT HAND,LWR
-
16073J16073-0122 INSULATOR, LEFT HAND,UPPINSULATOR, LEFT HAND,UPP
-
3106431064-0193 PIPE-COMP,SHIFTPIPE-COMP,SHIFT
-
31064A31064-0201 PIPE-COMP,SEAT RAILPIPE-COMP,SEAT RAIL
-
3914539145-0040 TRIM-SEAL,L=120TRIM-SEAL,L=120
-
5941659416-0018 CASE-ELECTRICCASE-ELECTRIC
-
9200292002-1740 BOLT,FLANGED,10X46BOLT,FLANGED,10X46
-
92009A92009-1256 SCREW,6X22,BLACKSCREW,6X22,BLACK
-
9202292022-1093 WASHER,6.5X16X1.0WASHER,6.5X16X1.0
-
9203992039-0046 RIVETRIVET
-
130130BA0510 BOLT-FLANGED,5X10BOLT-FLANGED,5X10
-
130A130BA0612 BOLT-FLANGED,6X12BOLT-FLANGED,6X12
-
130B130BA0614 BOLT-FLANGED,6X14BOLT-FLANGED,6X14
-
130C130BA0616 BOLT-FLANGED,6X16BOLT-FLANGED,6X16
-
130D130BA0818 BOLT-FLANGED,8X18 (USA ONLY)BOLT-FLANGED,8X18 (USA ONLY)
-
130D130BA0818 BOLT-FLANGED,8X18 (CANADA ONLY)BOLT-FLANGED,8X18 (CANADA ONLY)
-
130E130BA1020 BOLT-FLANGED,10X20BOLT-FLANGED,10X20
-
130F130BB1020 BOLT-FLANGED,10X20BOLT-FLANGED,10X20
-
130G130CA0820 BOLT-FLANGED,8X20BOLT-FLANGED,8X20
-
92039A92039-0086 RIVETRIVET
-
92039B92039-1229 RIVETRIVET
-
9207292072-0128 BAND,BATTERY,UPP (USA ONLY)BAND,BATTERY,UPP (USA ONLY)
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9215192151-1788 BOLT,8X177BOLT,8X177
-
9215292152-0794 COLLAR,10.22X12.7X158.8 (USA ONLY)COLLAR,10.22X12.7X158.8 (USA ONLY)
-
92152A92152-0841 COLLAR,10.2X12.7X150.6 (CANADA ONLY)COLLAR,10.2X12.7X150.6 (CANADA ONLY)
-
9215392153-1742 BOLT,FLANGED,10X38BOLT,FLANGED,10X38
-
9216192161-0273 DAMPERDAMPER
-
92161A92161-0578 DAMPER (USA ONLY)DAMPER (USA ONLY)
-
92161B92161-0579 DAMPER (USA ONLY)DAMPER (USA ONLY)
-
92161C92161-0580 DAMPER (CANADA ONLY)DAMPER (CANADA ONLY)
-
92161D92161-0844 DAMPER,88X25X4 (CANADA ONLY)DAMPER,88X25X4 (CANADA ONLY)
-
92161E92161-0846 DAMPER,130X74X4 (CANADA ONLY)DAMPER,130X74X4 (CANADA ONLY)
-
9217092170-1925 CLAMPCLAMP
-
9217192171-0453 CLAMPCLAMP
-
9217292172-0236 SCREW,6X16SCREW,6X16
-
92172A92172-0739 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
9221092210-0573 NUT,10MMNUT,10MM
-
92210A92210-1080 NUT,LOCK,FLANGED,10MMNUT,LOCK,FLANGED,10MM
