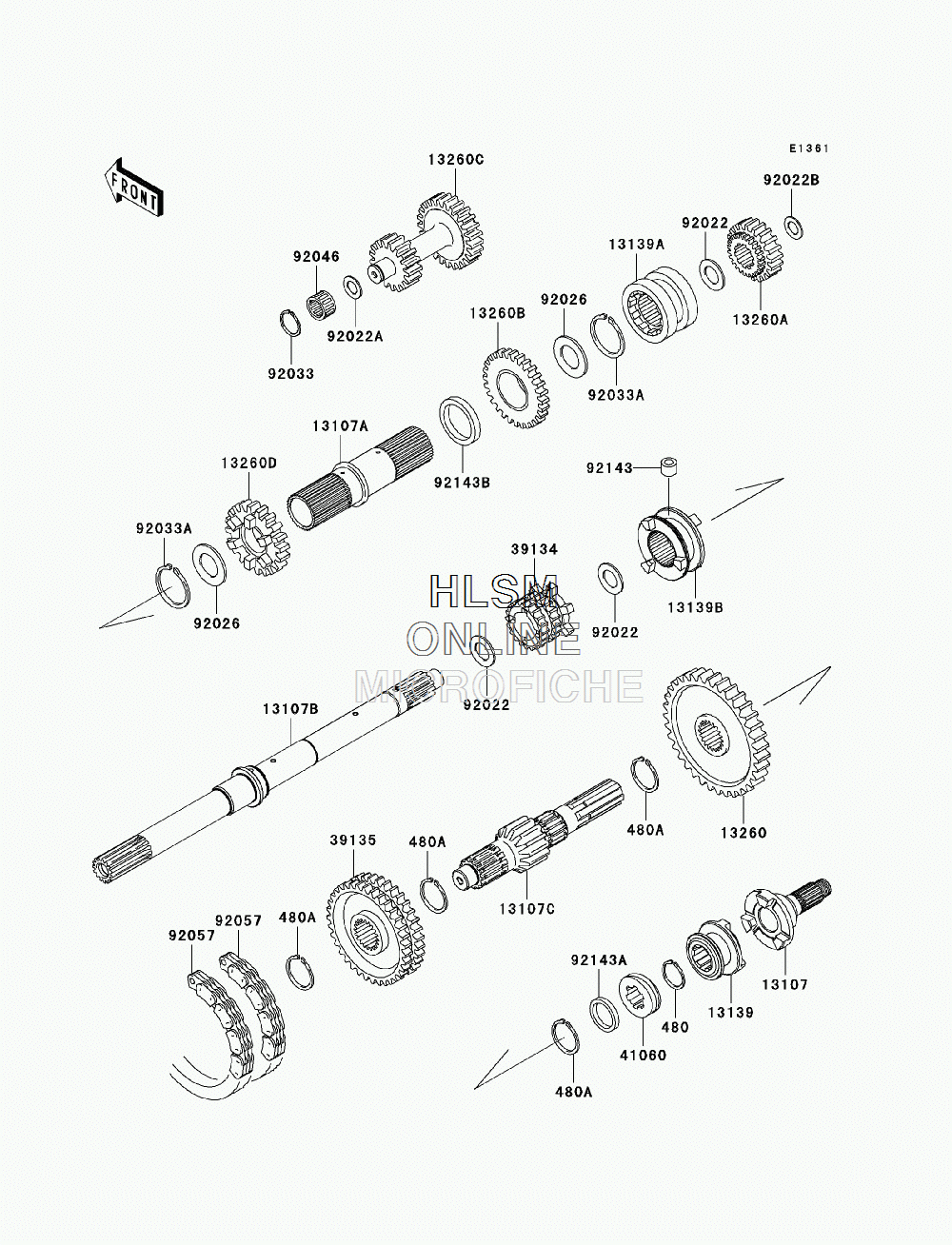

TRANSMISSION для Kawasaki MULE 4010 TRANS4X4 REALTREE APG HD (KAF620SCF) - 2012 года выпуска

  • №
    Артикул
    Название
  • 480
    480J2500 CIRCLIP-TYPE-C,25MM
    CIRCLIP-TYPE-C,25MM
  • 480A
    480J3000 CIRCLIP-TYPE-C,30MM
    CIRCLIP-TYPE-C,30MM
  • 13107
    13107-0106 SHAFT,2WD/4WD
    SHAFT,2WD/4WD
  • 13107A
    13107-1309 SHAFT,INPUT OUTER
    SHAFT,INPUT OUTER
  • 13107B
    13107-1470 SHAFT,INPUT
    SHAFT,INPUT
  • 13107C
    13107-1517 SHAFT,OUTPUT,14T
    SHAFT,OUTPUT,14T
  • 13139
    13139-0010 SHIFTER,2WD/4WD
    SHIFTER,2WD/4WD
  • 13139A
    13139-1069 SHIFTER,SPEED,HI/LOW
    SHIFTER,SPEED,HI/LOW
  • 13139B
    13139-1072 SHIFTER, FR/REAR
    SHIFTER, FR/REAR
  • 13260
    13260-1288 GEAR,OUTPUT REVERSE,51T
    GEAR,OUTPUT REVERSE,51T
  • 13260A
    13260-1289 GEAR,INPUT REDUCTION,20T
    GEAR,INPUT REDUCTION,20T
  • 13260B
    13260-1290 GEAR,INPUT REDUCTION,28T
    GEAR,INPUT REDUCTION,28T
  • 13260C
    13260-1291 GEAR, REDUCTION,17T & 25T
    GEAR, REDUCTION,17T & 25T
  • 13260D
    13260-1462 GEAR,INPUT 28T
    GEAR,INPUT 28T
  • 39134
    39134-1055 SPROCKET-DRIVE,20T
    SPROCKET-DRIVE,20T
  • 39135
    39135-1055 SPROCKET-DRIVEN,41T
    SPROCKET-DRIVEN,41T
  • 41060
    41060-1147 GEAR-METER SCREW
    GEAR-METER SCREW
  • 92022
    92022-1109 WASHER,25.3X33X1
    WASHER,25.3X33X1
  • 92022A
    92022-255 WASHER,17.3X28X1
    WASHER,17.3X28X1
  • 92022B
    92022-270 WASHER,17.3X30X1.4
    WASHER,17.3X30X1.4
  • 92026
    92026-1375 SPACER,35.3X44X0.5
    SPACER,35.3X44X0.5
  • 92033
    92033-032 RING-SNAP
    RING-SNAP
  • 92033A
    92033-1269 RING-SNAP
    RING-SNAP
  • 92046
    92046-1184 BEARING-NEEDLE,K17X23X13.8
    BEARING-NEEDLE,K17X23X13.8
  • 92057
    92057-1364 CHAIN, REVERSE,81RIGHT HAND2520,54L
    CHAIN, REVERSE,81RIGHT HAND2520,54L
  • 92143
    92143-1497 COLLAR,8X14X10.5
    COLLAR,8X14X10.5
  • 92143A
    92143-1597 COLLAR,25X32X4.5
    COLLAR,25X32X4.5
  • 92143B
    92143-1599 COLLAR
    COLLAR
