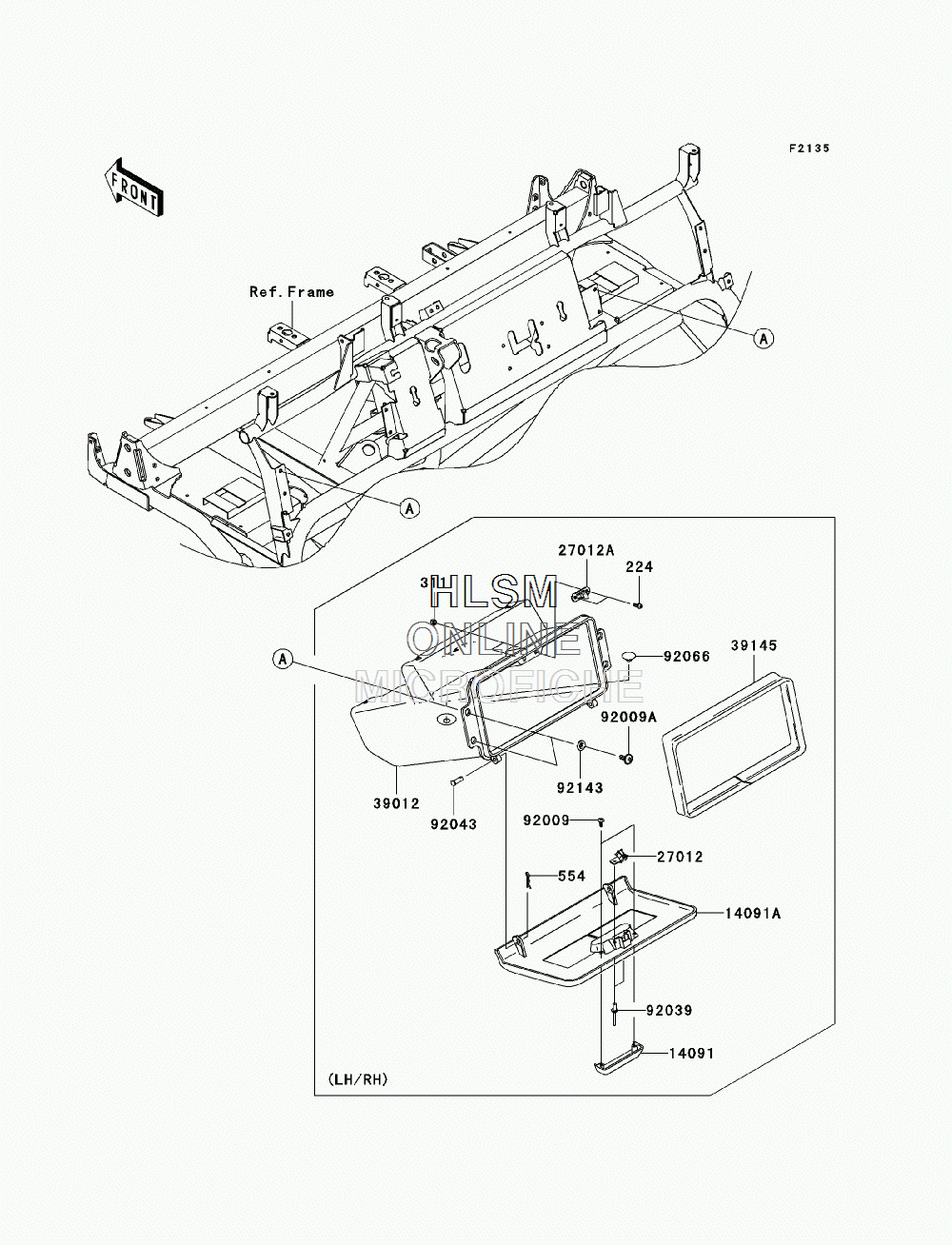

FRONT BOX для Kawasaki MULE 4010 TRANS4X4 (KAF620RCFA) - 2012 года выпуска`
-
№АртикулНазвание
-
224224AB0412 SCREW-PAN-WP-CROS,4X12SCREW-PAN-WP-CROS,4X12
-
311311AA0400 NUT-HEXNUT-HEX
-
554554DA0600 PIN-SNAPPIN-SNAP
-
1409114091-1659-6Z COVER,STORAGE GRIP,F.BLACKCOVER,STORAGE GRIP,F.BLACK
-
14091A14091-1660-6Z COVER,CONTROL PANEL,F.BLACKCOVER,CONTROL PANEL,F.BLACK
-
2701227012-1607 HOOKHOOK
-
27012A27012-1612 HOOKHOOK
-
3901239012-1061-6Z CASE-STORAGE,F.BLACKCASE-STORAGE,F.BLACK
-
3914539145-1130 TRIM-SEAL,L=774TRIM-SEAL,L=774
-
9200992009-1444 SCREW,TAPPING,4X12SCREW,TAPPING,4X12
-
92009A92009-1621 SCREW,6X16SCREW,6X16
-
9203992039-1041 RIVETRIVET
-
9204392043-125 PIN,6X14.5PIN,6X14.5
-
9206692066-1485 PLUGPLUG
-
9214392143-1087 COLLARCOLLAR
