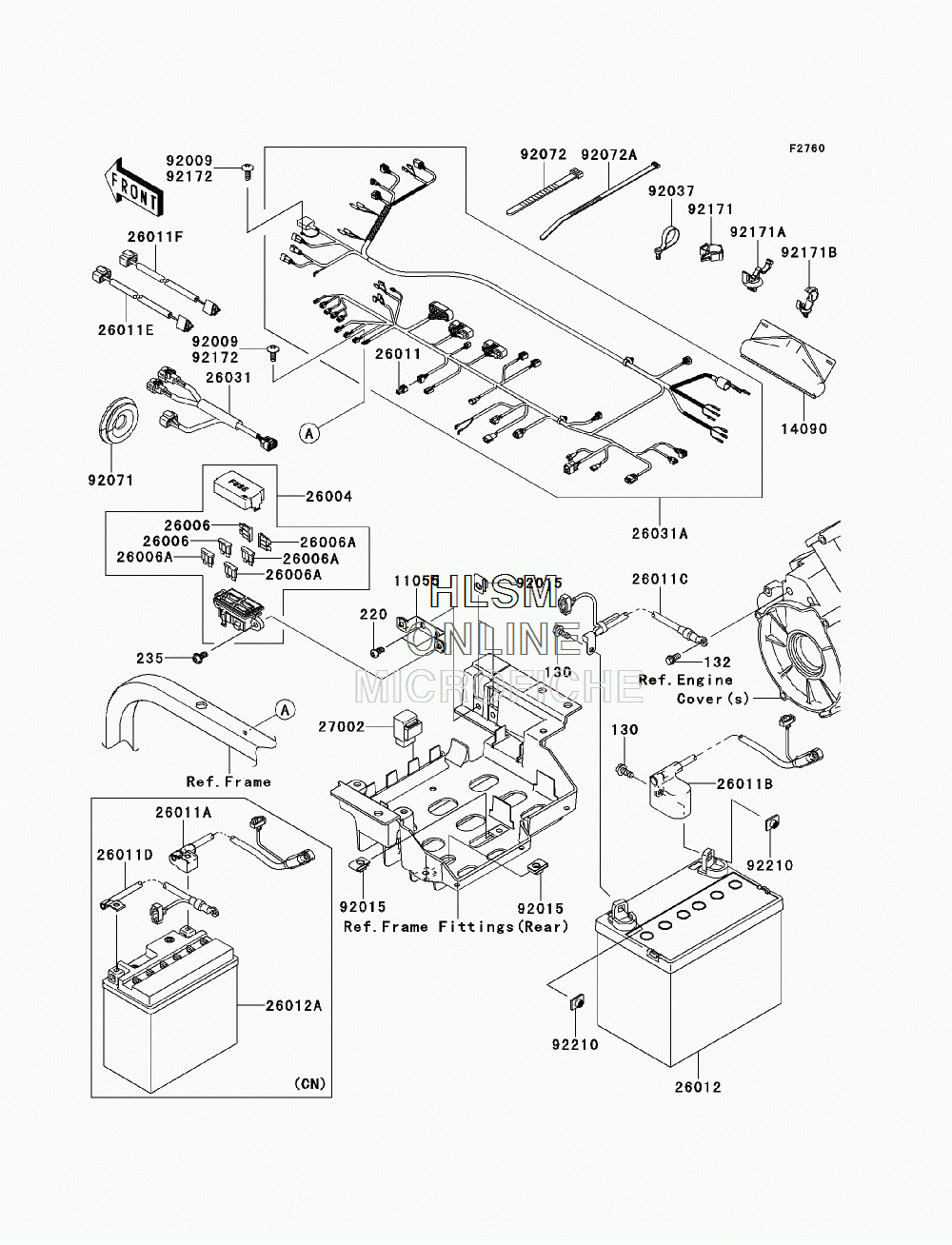

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki TERYX 750 FI 4X4 (KRF750NBF) - 2011 года выпуска`
-
№АртикулНазвание
-
1105511055-1391 BRACKET,FUSE & CONTROL UNITBRACKET,FUSE & CONTROL UNIT
-
1409014090-1331 COVER,COUPLERCOVER,COUPLER
-
2600426004-0016 FUSE-ASSYFUSE-ASSY
-
2600626006-0004 FUSE,BLADE,30A,GREENFUSE,BLADE,30A,GREEN
-
26006A26006-0005 FUSE,BLADE,10A, REDFUSE,BLADE,10A, RED
-
2601126011-0037 WIRE-LEADWIRE-LEAD
-
26011A26011-0130 WIRE-LEAD,BATTERY(+) (CANADA ONLY)WIRE-LEAD,BATTERY(+) (CANADA ONLY)
-
26011B26011-0190 WIRE-LEAD,BATTERY(+) (USA ONLY)WIRE-LEAD,BATTERY(+) (USA ONLY)
-
26011C26011-0231 WIRE-LEAD,BATTERY(-) (USA ONLY)WIRE-LEAD,BATTERY(-) (USA ONLY)
-
26011D26011-0269 WIRE-LEAD,BATTERY(-) (CANADA ONLY)WIRE-LEAD,BATTERY(-) (CANADA ONLY)
-
26011E26011-0276 WIRE-LEAD,HEAD LAMP, LEFT HANDWIRE-LEAD,HEAD LAMP, LEFT HAND
-
26011F26011-0277 WIRE-LEAD,HEAD LAMP, RIGHT HANDWIRE-LEAD,HEAD LAMP, RIGHT HAND
-
2601226012-0107 BATTERY,12V 14AH (USA ONLY)BATTERY,12V 14AH (USA ONLY)
-
26012A26012-1414 BATTERY,MF,KMX14-BS,12V 12AH (CANADA ONLY)BATTERY,MF,KMX14-BS,12V 12AH (CANADA ONLY)
-
2603126031-0752 HARNESS,SUBHARNESS,SUB
-
26031A26031-0931 HARNESS,MAINHARNESS,MAIN
-
2700227002-1062 RELAY-ASSYRELAY-ASSY
-
9200992009-1166 SCREW,TAPPING,6X16SCREW,TAPPING,6X16
-
9201592015-1602 NUT,6MMNUT,6MM
-
9203792037-1903 CLAMP,SPEED,L=80.5CLAMP,SPEED,L=80.5
-
9207192071-0030 GROMMETGROMMET
-
9207292072-030 BAND,L=123BAND,L=123
-
92072A92072-3509 BAND,L=292.1BAND,L=292.1
-
130130BA0616 BOLT-FLANGED,6X16 (USA ONLY)BOLT-FLANGED,6X16 (USA ONLY)
-
132132BD0612 BOLT-FLANGED-SMALL,6X12BOLT-FLANGED-SMALL,6X12
-
220220AA0612 SCREW-PAN-CROSS,6X12SCREW-PAN-CROSS,6X12
-
235235AA0614 SCREW-PAN-WP-CROS,6X14SCREW-PAN-WP-CROS,6X14
-
9217192171-0316 CLAMP,BRAKE HOSECLAMP,BRAKE HOSE
-
92171A92171-0453 CLAMPCLAMP
-
92171B92171-1415 CLAMP,DIA=13CLAMP,DIA=13
-
9221092210-1352 NUT,PLATE,6MM (USA ONLY)NUT,PLATE,6MM (USA ONLY)
