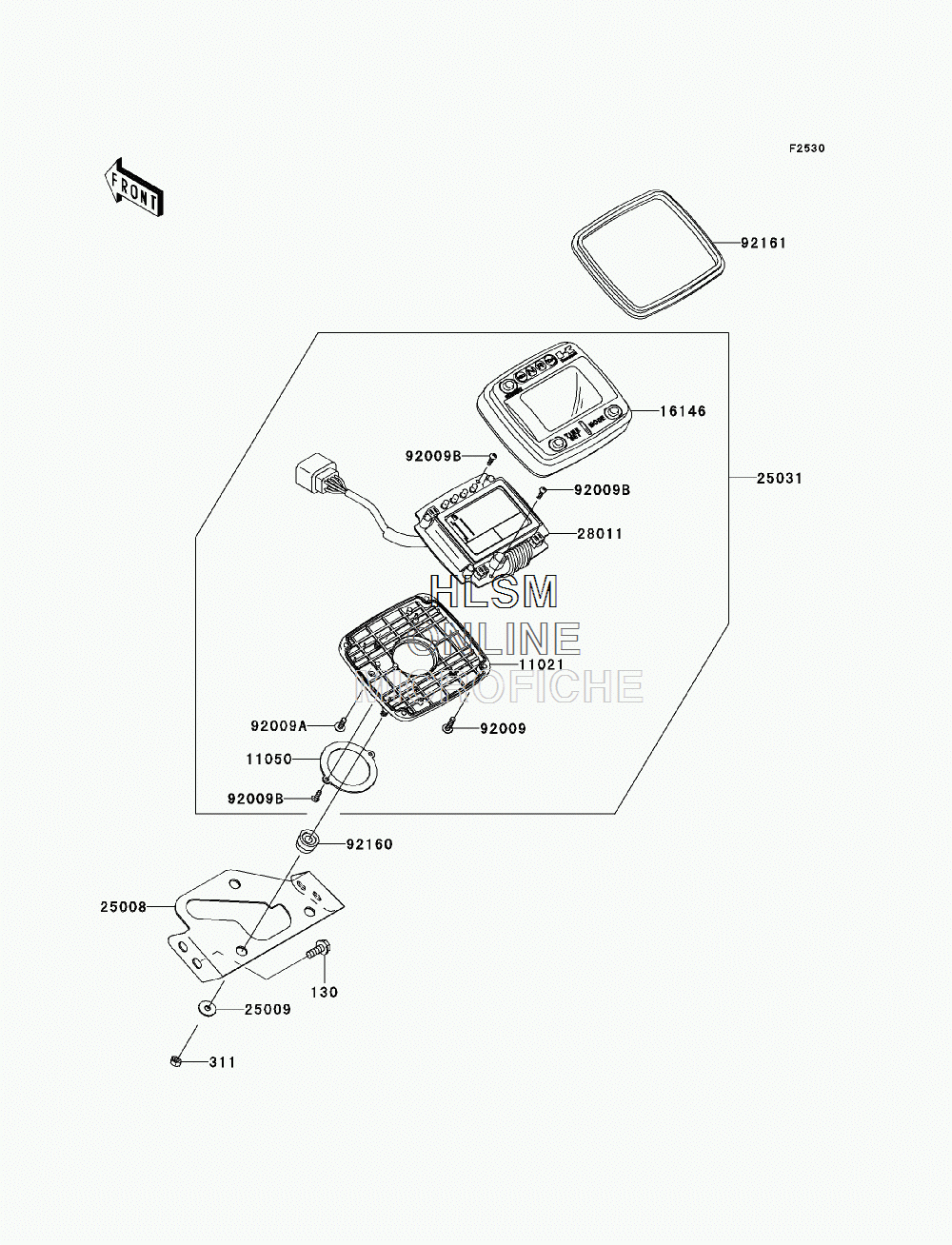

METER(S) для Kawasaki TERYX 750 FI 4X4 SPORT (KRF750SAF) - 2010 года выпуска`
-
№АртикулНазвание
-
130130BA0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
311311AB0500 NUT-HEXNUT-HEX
-
1102111021-0018 CASE-ASSY, METER (LOWER)CASE-ASSY, METER (LOWER)
-
1105011050-1932 BRACKET, METERBRACKET, METER
-
1614616146-0011 COVER-ASSY (UPPER)COVER-ASSY (UPPER)
-
2500825008-0021 BRACKET-METERBRACKET-METER
-
2500925009-004 WASHER, 5.2X16X1.2WASHER, 5.2X16X1.2
-
2503125031-0301 METER-ASSY, LCD, MPHMETER-ASSY, LCD, MPH
-
2801128011-0161 METER, LCD, MPHMETER, LCD, MPH
-
9200992009-1163 SCREW, TAPPING, 4X16SCREW, TAPPING, 4X16
-
92009A92009-1254 SCREW, TAPPING, 4X12SCREW, TAPPING, 4X12
-
92009B92009-1326 SCREW, 3X12SCREW, 3X12
-
9216092160-1460 DAMPERDAMPER
-
9216192161-1114 DAMPER, METER (UPPER)DAMPER, METER (UPPER)
