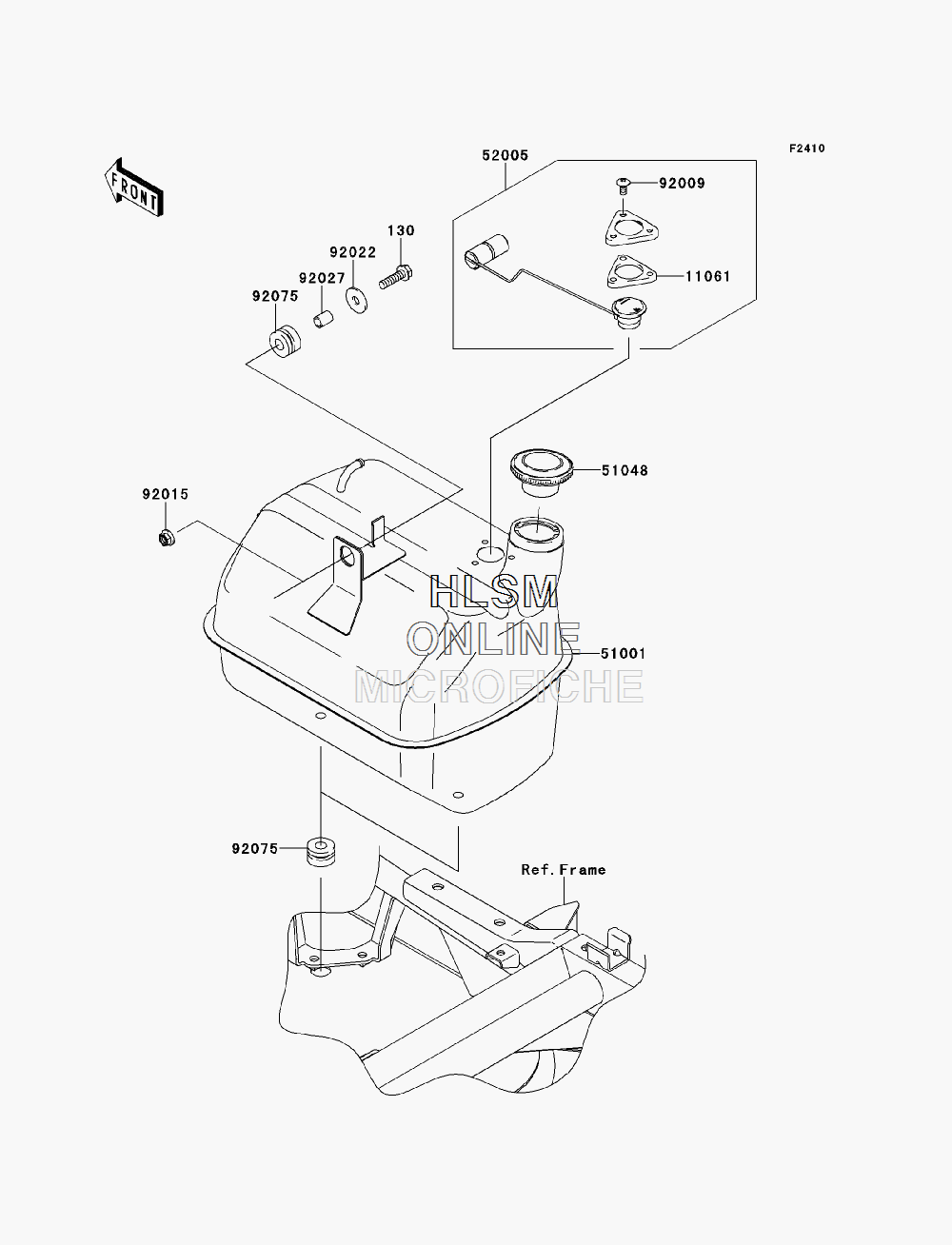

FUEL TANK (EXCEPT CALIF.) для Kawasaki MULE 610 4X4 XC (KAF400DAF) - 2010 года выпуска`
-
№АртикулНазвание
-
130130AA0830 BOLT-FLANGED, 8X30 (EXCEPT CALIF.)BOLT-FLANGED, 8X30 (EXCEPT CALIF.)
-
1106111061-0120 GASKET, FUEL GAUGE (EXCEPT CALIF.)GASKET, FUEL GAUGE (EXCEPT CALIF.)
-
5100151001-0093 TANK-COMP-FUEL (EXCEPT CALIF.)TANK-COMP-FUEL (EXCEPT CALIF.)
-
5104851048-0005 CAP-ASSY-TANK, FUEL (EXCEPT CALIF.)CAP-ASSY-TANK, FUEL (EXCEPT CALIF.)
-
5200552005-0080 GAUGE, FUEL (EXCEPT CALIF.)GAUGE, FUEL (EXCEPT CALIF.)
-
9200992009-1541 SCREW, 6X14 (EXCEPT CALIF.)SCREW, 6X14 (EXCEPT CALIF.)
-
9201592015-1397 NUT, LOCK, FLANGED, 8MM (EXCEPT CALIF.)NUT, LOCK, FLANGED, 8MM (EXCEPT CALIF.)
-
9202292022-1632 WASHER, 9X28X2.3 (EXCEPT CALIF.)WASHER, 9X28X2.3 (EXCEPT CALIF.)
-
9202792027-1081 COLLAR, 8.8X12X15.5 (EXCEPT CALIF.)COLLAR, 8.8X12X15.5 (EXCEPT CALIF.)
-
9207592075-1736 DAMPER (EXCEPT CALIF.)DAMPER (EXCEPT CALIF.)
