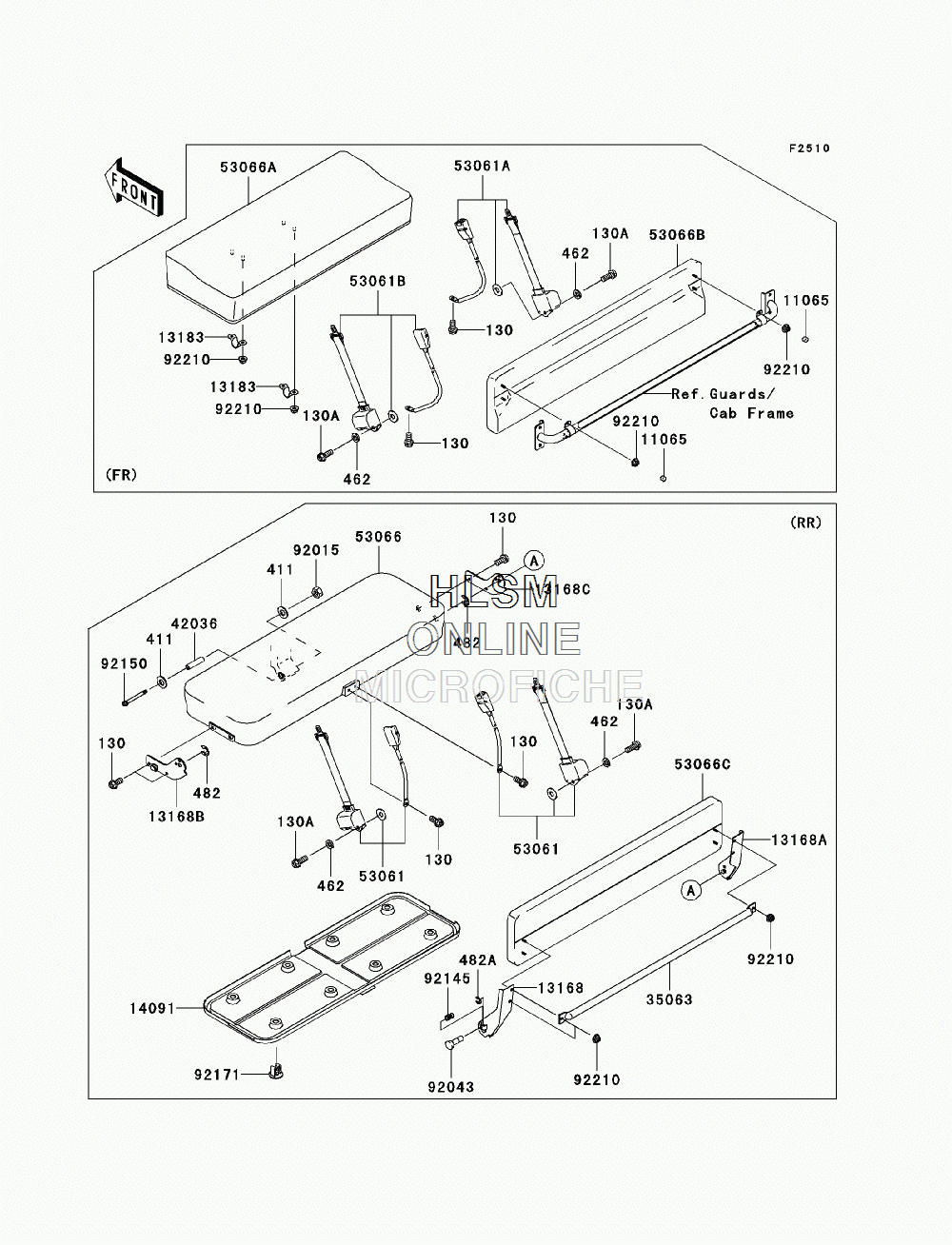

SEAT для Kawasaki MULE 4010 TRANS4X4 (KAF620RAF) - 2010 года выпуска

  • №
    Артикул
    Название
  • 130
    130BB1020 BOLT-FLANGED,10X20
    BOLT-FLANGED,10X20
  • 130A
    130BB1025 BOLT-FLANGED,10X25
    BOLT-FLANGED,10X25
  • 411
    411AB1200 WASHER-PLAIN
    WASHER-PLAIN
  • 462
    462DB1000 WASHER-SPRING,10MM
    WASHER-SPRING,10MM
  • 482
    482EA0200 CIRCLIP-TYPE-E
    CIRCLIP-TYPE-E
  • 482A
    482EA8000 CIRCLIP-TYPE-E,8MM
    CIRCLIP-TYPE-E,8MM
  • 11065
    11065-7504 CAP
    CAP
  • 13168
    13168-7502 LEVER,SEAT,TOP, LEFT HAND
    LEVER,SEAT,TOP, LEFT HAND
  • 13168A
    13168-7503 LEVER,SEAT,TOP, RIGHT HAND
    LEVER,SEAT,TOP, RIGHT HAND
  • 13168B
    13168-7504 LEVER,SEAT,LWR, LEFT HAND
    LEVER,SEAT,LWR, LEFT HAND
  • 13168C
    13168-7505 LEVER,SEAT,LWR, RIGHT HAND
    LEVER,SEAT,LWR, RIGHT HAND
  • 13183
    13183-1400 PLATE,SEAT
    PLATE,SEAT
  • 14091
    14091-1740 COVER, REAR SEAT,BOTTOM
    COVER, REAR SEAT,BOTTOM
  • 35063
    35063-7510 STAY, REAR BACK
    STAY, REAR BACK
  • 42036
    42036-7501 SLEEVE,12.1X20X85
    SLEEVE,12.1X20X85
  • 53061
    53061-7506 BELT-SEAT, REAR
    BELT-SEAT, REAR
  • 53061A
    53061-7507 BELT-SEAT, FRONT, RIGHT HAND
    BELT-SEAT, FRONT, RIGHT HAND
  • 53061B
    53061-7508 BELT-SEAT, FRONT, LEFT HAND
    BELT-SEAT, FRONT, LEFT HAND
  • 53066
    53066-0226-MA SEAT-ASSY, REAR,LWR,BLACK
    SEAT-ASSY, REAR,LWR,BLACK
  • 53066A
    53066-7502-MA SEAT-ASSY, FRONT,LWR,BLACK
    SEAT-ASSY, FRONT,LWR,BLACK
  • 53066B
    53066-7503-MA SEAT-ASSY, FRONT,BACK,BLACK
    SEAT-ASSY, FRONT,BACK,BLACK
  • 53066C
    53066-7507-MA SEAT-ASSY, REAR,BACK,BLACK
    SEAT-ASSY, REAR,BACK,BLACK
  • 92015
    92015-1190 NUT,LOCK,12MM,BLACK
    NUT,LOCK,12MM,BLACK
  • 92043
    92043-7503 PIN
    PIN
  • 92145
    92145-7507 SPRING
    SPRING
  • 92150
    92150-1895 BOLT,FLANGED,12X117
    BOLT,FLANGED,12X117
  • 92171
    92171-7509 CLAMP
    CLAMP
  • 92210
    92210-0005 NUT,FLANGED,LOCK,8MM
    NUT,FLANGED,LOCK,8MM
