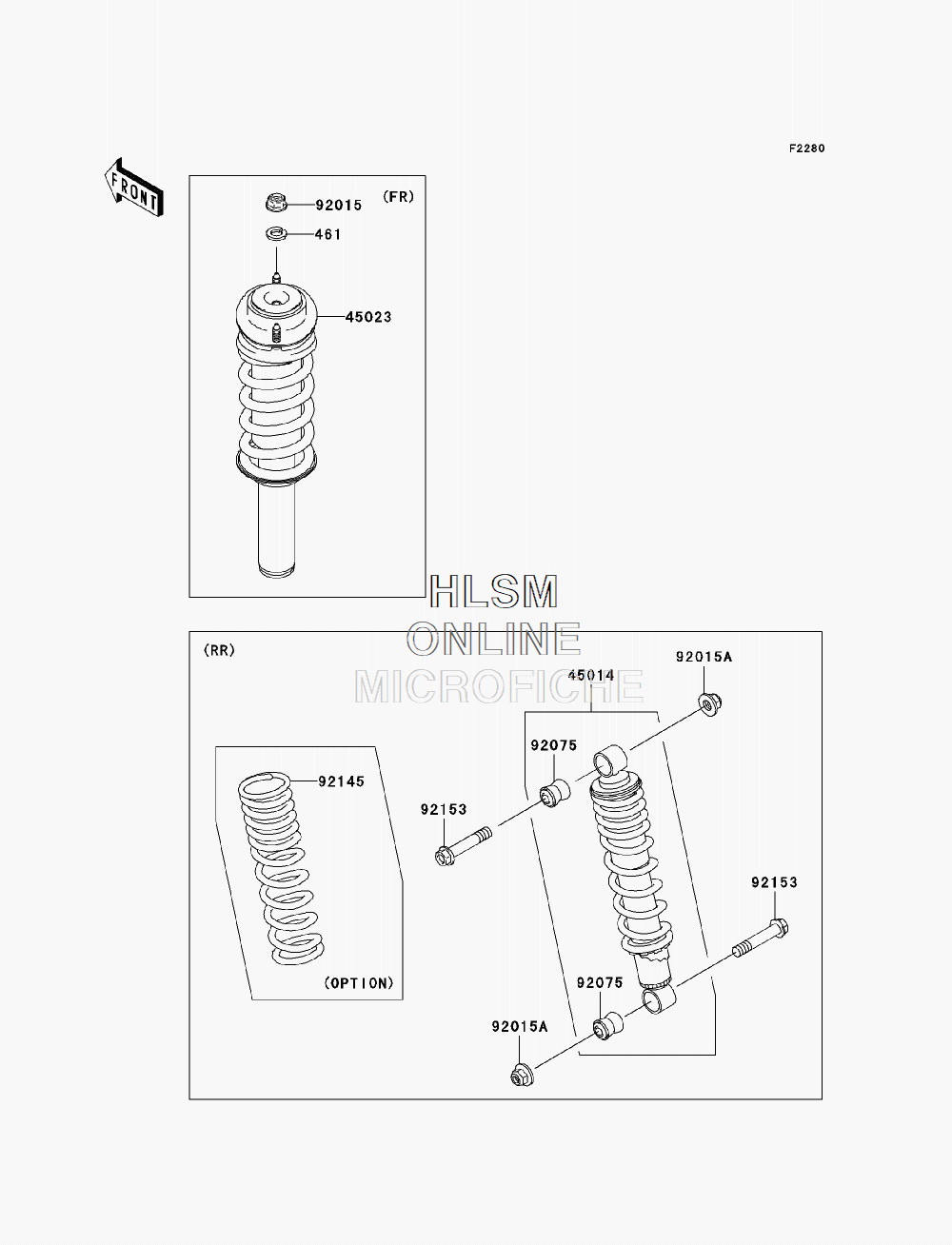

SUSPENSION - SHOCK ABSORBER(S) для Kawasaki MULE 600 (KAF400B9F) - 2009 года выпуска`
-
№АртикулНазвание
-
461461DA1000 WASHER-SPRING, 10MMWASHER-SPRING, 10MM
-
4501445014-0100 SHOCK ABSORBERSHOCK ABSORBER
-
4502345023-0003 STRUTSTRUT
-
9201592015-1428 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9207592075-1784 DAMPER, SHOCK ABSORBERDAMPER, SHOCK ABSORBER
-
9214592145-0400 SPRING, SHOCK, K=24.5/44.1N/MM (OPTION)SPRING, SHOCK, K=24.5/44.1N/MM (OPTION)
-
9215392153-1698 BOLT, FLANGED, 10X53.5BOLT, FLANGED, 10X53.5
