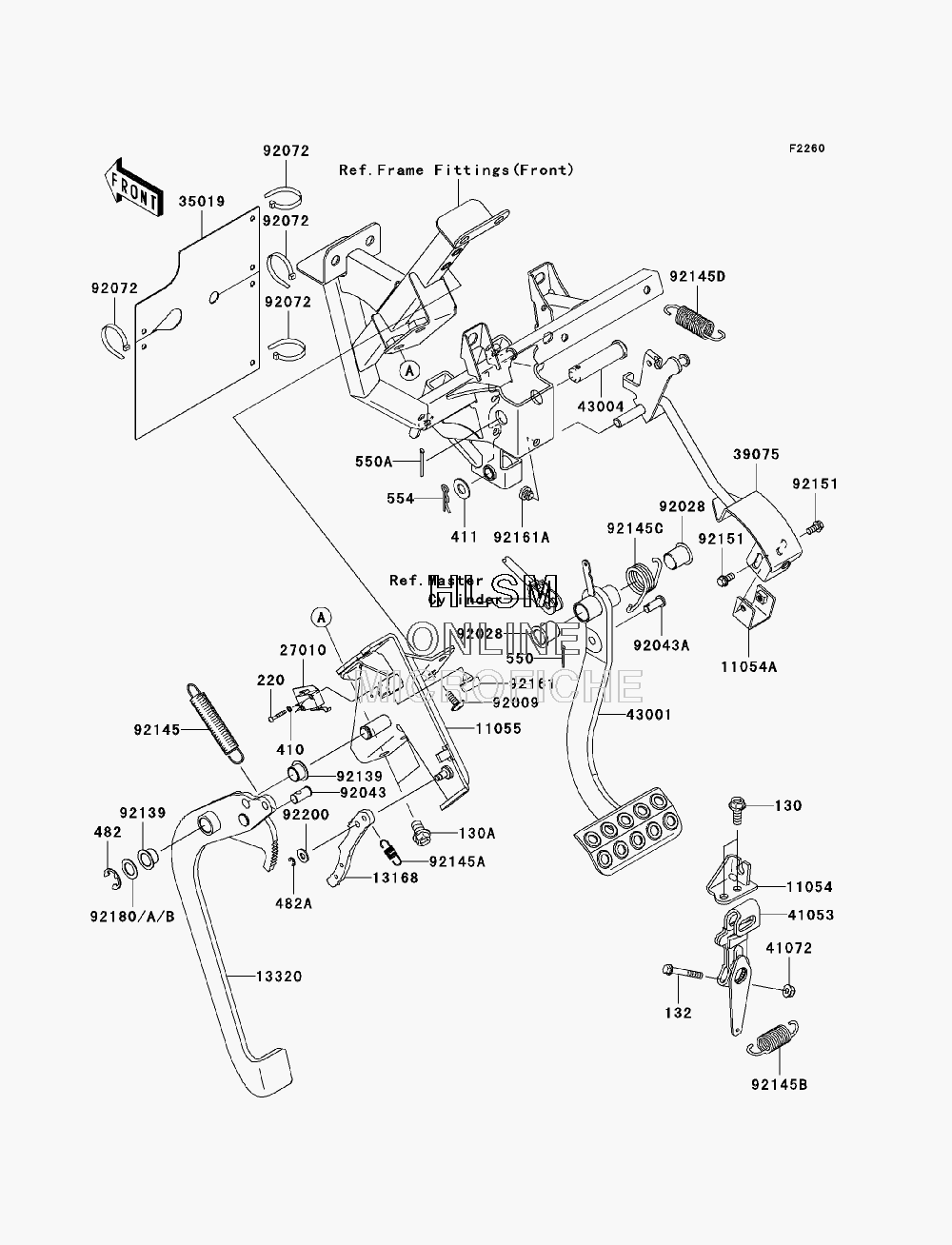

BRAKE PEDAL W/ THROTTLE LEVER для Kawasaki TERYX 750 4X4 LE (KRF750D8F) - 2008 года выпуска`
-
№АртикулНазвание
-
130130BB0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130A130BB1016 BOLT-FLANGED, 10X16BOLT-FLANGED, 10X16
-
132132BA0640 BOLT-FLANGED-SMALL, 6X40BOLT-FLANGED-SMALL, 6X40
-
220220AA0320 SCREW-PAN-CROSS, 3X20SCREW-PAN-CROSS, 3X20
-
410410AA0300 WASHER-PLAIN-SMALL, 3MMWASHER-PLAIN-SMALL, 3MM
-
411411AA1000 WASHER-PLAIN, 10MMWASHER-PLAIN, 10MM
-
482482J0100 CIRCLIP-TYPE-E, 10MMCIRCLIP-TYPE-E, 10MM
-
482A482J4000 CIRCLIP-TYPE-E, 4MMCIRCLIP-TYPE-E, 4MM
-
550550AA2518 PIN-COTTER, 2.5X18PIN-COTTER, 2.5X18
-
550A550AA2525 PIN-COTTER, 2.5X25PIN-COTTER, 2.5X25
-
1105411054-0933 BRACKET, BRAKE CABLEBRACKET, BRAKE CABLE
-
11054A11054-1137 BRACKETBRACKET
-
1105511055-0279 BRACKET, BRAKE LEVERBRACKET, BRAKE LEVER
-
1316813168-0174 LEVERLEVER
-
1332013320-0012 LEVER-ASSY, BRAKE PEDALLEVER-ASSY, BRAKE PEDAL
-
2701027010-0084 SWITCHSWITCH
-
3501935019-0079 FLAPFLAP
-
3907539075-0012 LEVER-THROTTLELEVER-THROTTLE
-
4105341053-0010 LEVER-BRAKE CAMLEVER-BRAKE CAM
-
4107241072-007 NUT, 6MMNUT, 6MM
-
4300143001-0103 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
4300443004-1128 SHAFT-BRAKESHAFT-BRAKE
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9202892028-1571 BUSHINGBUSHING
-
9204392043-0124 PINPIN
-
92043A92043-1039 PINPIN
-
9207292072-1239 BAND, L=188BAND, L=188
-
9213992139-0182 BUSHINGBUSHING
-
9214592145-0446 SPRINGSPRING
-
92145A92145-0447 SPRINGSPRING
-
92145B92145-0563 SPRINGSPRING
-
92145C92145-0575 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
-
92145D92145-0636 SPRINGSPRING
-
9215192151-1997 BOLT, 6X12BOLT, 6X12
-
9216192161-0590 DAMPERDAMPER
-
92161A92161-1084 DAMPERDAMPER
-
9218092180-0279 SHIM, T=0.8SHIM, T=0.8
-
92180A92180-0281 SHIM, T=1.0SHIM, T=1.0
-
92180B92180-0282 SHIM, T=1.2SHIM, T=1.2
-
9220092200-3775 WASHER, 6.5X14.5X1.5WASHER, 6.5X14.5X1.5
-
554554DA1000 PIN-SNAP, 10MMPIN-SNAP, 10MM
