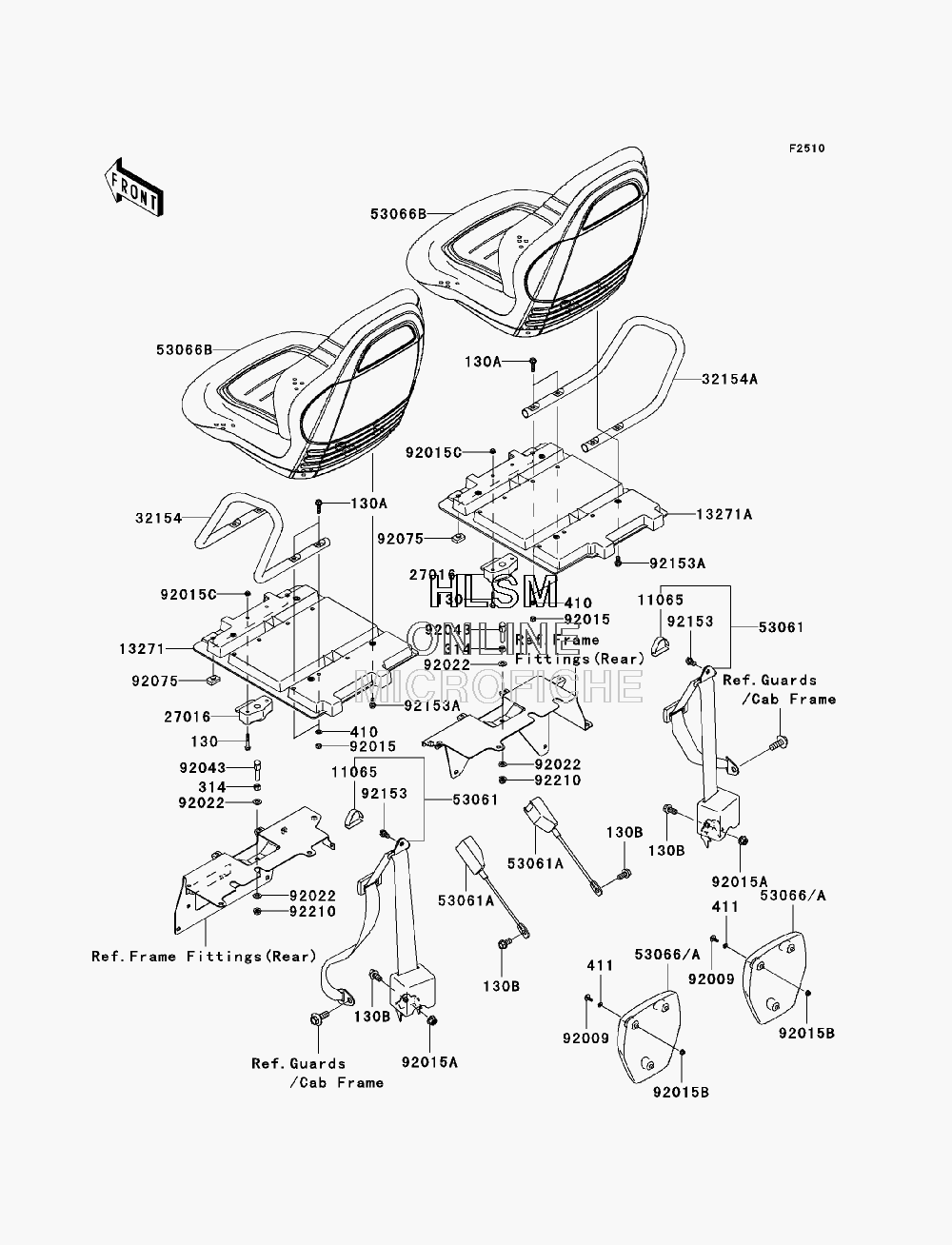

SEAT для Kawasaki TERYX 750 4X4 LE (KRF750C8F) - 2008 года выпуска
-
№АртикулНазвание
-
130130CA0640 BOLT-FLANGED, 6X40BOLT-FLANGED, 6X40
-
130A130CA0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130B130CA1225 BOLT-FLANGED, 12X25BOLT-FLANGED, 12X25
-
314314AA1000 NUT-HEX-FINE, 10MMNUT-HEX-FINE, 10MM
-
410410AA0800 WASHER-PLAIN-SMALL, 8MMWASHER-PLAIN-SMALL, 8MM
-
411411AB0600 WASHER-PLAIN, 6.5X13X1WASHER-PLAIN, 6.5X13X1
-
1106511065-0287 CAP, SEAT BELTCAP, SEAT BELT
-
1327113271-0894-6Z PLATE, SEAT, LWR, LEFT HAND, F. BLACKPLATE, SEAT, LWR, LEFT HAND, F. BLACK
-
13271A13271-0895-6Z PLATE, SEAT, LWR, RIGHT HAND, F. BLACKPLATE, SEAT, LWR, RIGHT HAND, F. BLACK
-
2701627016-3758 LOCK-ASSY, SEATLOCK-ASSY, SEAT
-
3215432154-1249 PIPE, SEAT PLATE, LEFT HANDPIPE, SEAT PLATE, LEFT HAND
-
32154A32154-1250 PIPE, SEAT PLATE, RIGHT HANDPIPE, SEAT PLATE, RIGHT HAND
-
5306153061-0001 BELT-SEATBELT-SEAT
-
53061A53061-0002 BELT-SEATBELT-SEAT
-
5306653066-0163-6B SEAT-ASSY, PAD HEAD, S. RED (FOR 6B)SEAT-ASSY, PAD HEAD, S. RED (FOR 6B)
-
53066A53066-0163-6D SEAT-ASSY, PAD HEAD, BLACK (FOR 286)SEAT-ASSY, PAD HEAD, BLACK (FOR 286)
-
53066B53066-0195 SEAT-ASSYSEAT-ASSY
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1124 NUT, LOCK, 8MMNUT, LOCK, 8MM
-
92015A92015-1368 NUT, 12MMNUT, 12MM
-
92015B92015-1603 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
92015C92015-1699 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1591 WASHER, 10.5X20X1.6WASHER, 10.5X20X1.6
-
9204392043-0126 PINPIN
-
9207592075-1153 DAMPER, SEATDAMPER, SEAT
-
9215392153-1740 BOLT, FLANGED, 10X16BOLT, FLANGED, 10X16
-
92153A92153-1924 BOLTBOLT
-
9221092210-0276 NUT, LOCK, FLANGED, 10MMNUT, LOCK, FLANGED, 10MM
