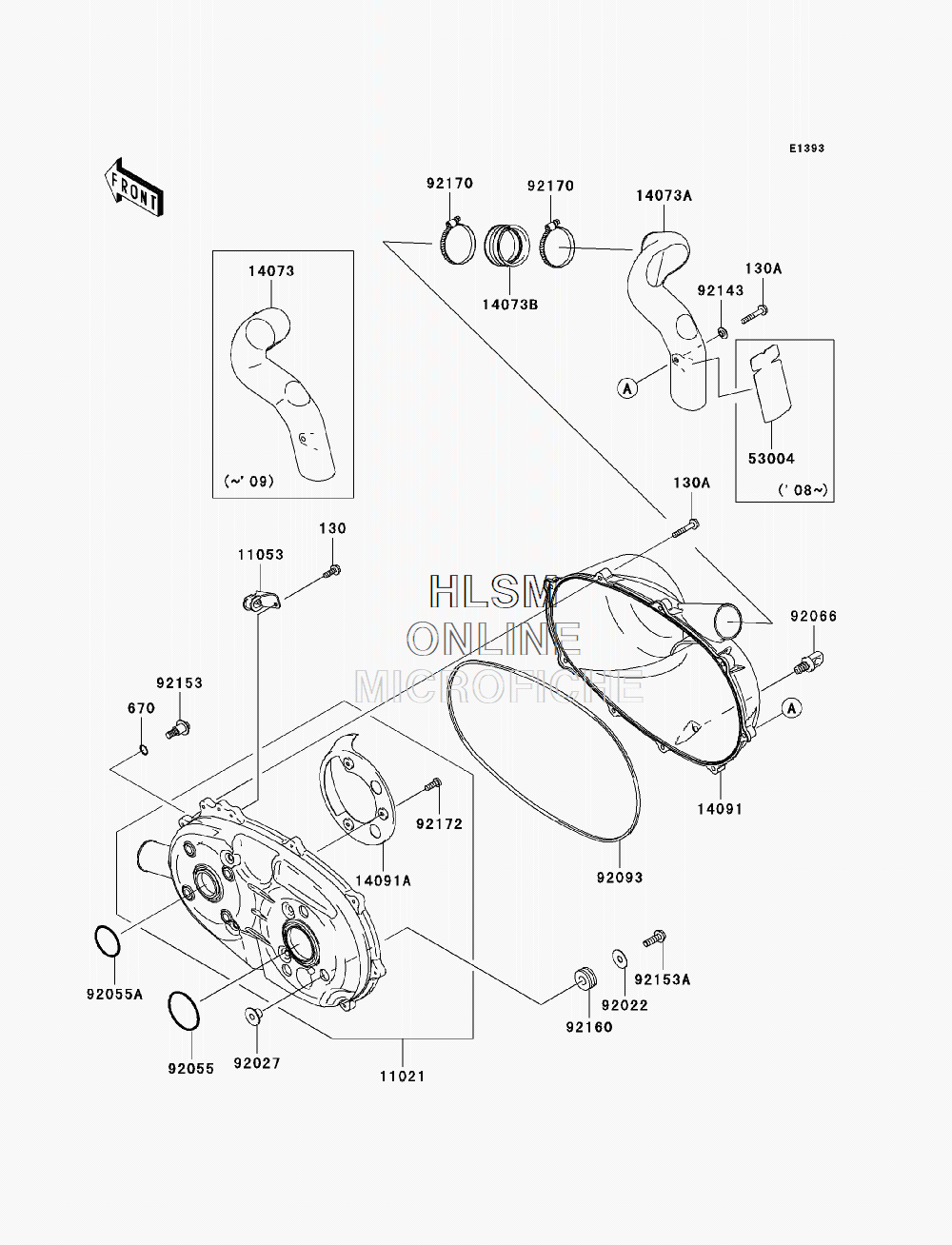

CONVERTER COVER для Kawasaki MULE 600 (KAF400B8F) - 2008 года выпуска`
-
№АртикулНазвание
-
130130BB0618 BOLT-FLANGED, 6X18BOLT-FLANGED, 6X18
-
130A130BB0635 BOLT-FLANGED, 6X35BOLT-FLANGED, 6X35
-
670670D2012 O RING, 12MMO RING, 12MM
-
1102111021-0003 CASE-ASSY, BELT CONVERTERCASE-ASSY, BELT CONVERTER
-
1105311053-1483 BRACKETBRACKET
-
1407314073-0071 DUCT, EXHAUSTDUCT, EXHAUST
-
14073A14073-1775 DUCT, JOINTDUCT, JOINT
-
1409114091-0192 COVER, BELT CONVERTERCOVER, BELT CONVERTER
-
14091A14091-0391 COVERCOVER
-
5300453004-0030 MAT (CALIF. ONLY)MAT (CALIF. ONLY)
-
9202292022-101 WASHER, 8.5X26X0.8WASHER, 8.5X26X0.8
-
9202792027-4015 COLLARCOLLAR
-
9205592055-0048 RING-O, 64X4RING-O, 64X4
-
92055A92055-1501 RING-O, 50X4RING-O, 50X4
-
9206692066-1580 PLUG, DRAIN, 11X19PLUG, DRAIN, 11X19
-
9209392093-0018 SEALSEAL
-
9214392143-1087 COLLARCOLLAR
-
9215392153-0594 BOLT, 8X26.5BOLT, 8X26.5
-
92153A92153-0953 BOLT, FLANGED, 8X25BOLT, FLANGED, 8X25
-
9216092160-1012 DAMPERDAMPER
-
9217092170-1764 CLAMPCLAMP
-
9217292172-0166 SCREW, 5X14SCREW, 5X14
