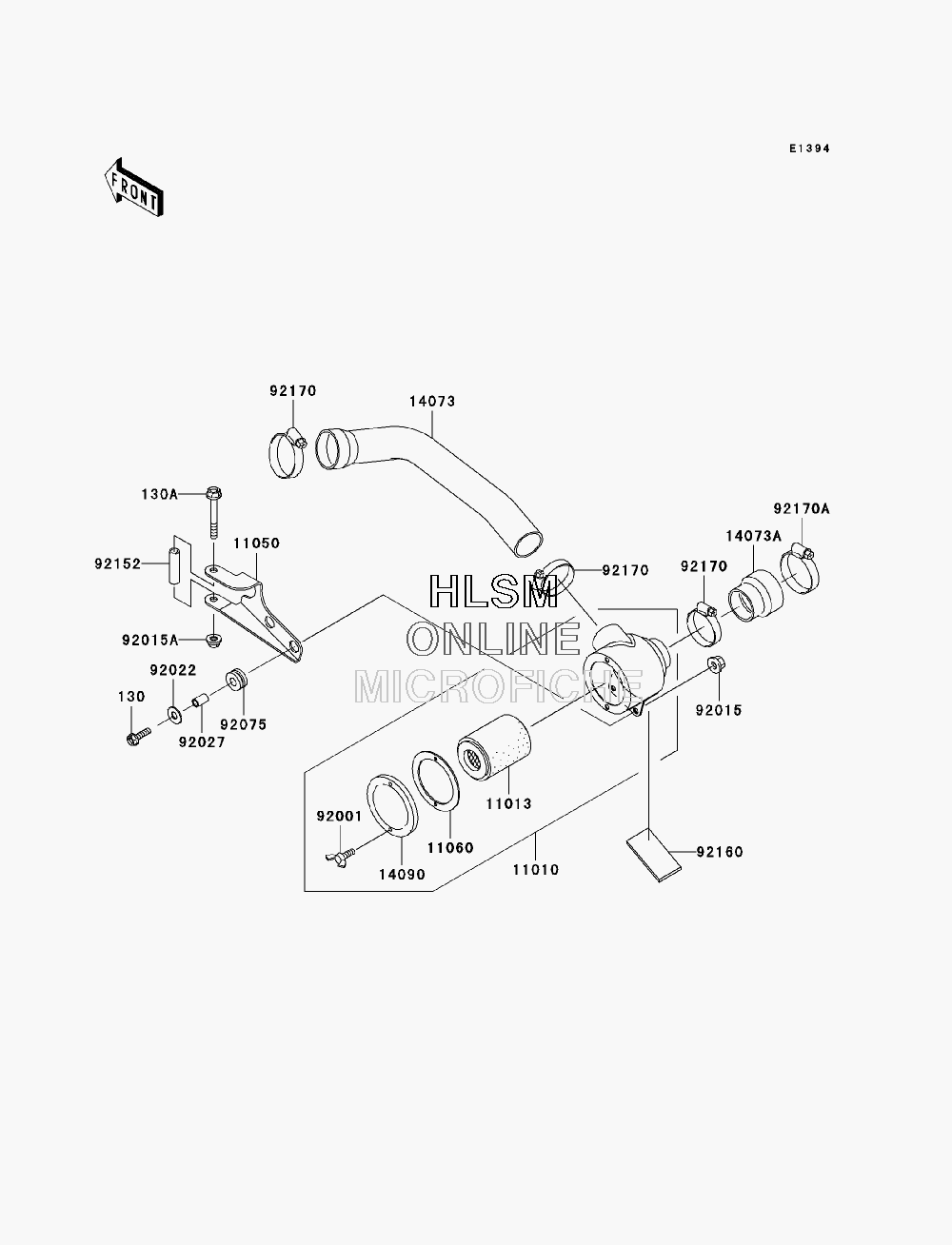

AIR CLEANER W/ BELT CONVERTER для Kawasaki MULE 3000 (KAF620G8F) - 2008 года выпуска`
-
№АртикулНазвание
-
130130AB0830 BOLT-FLANGED, 8X30BOLT-FLANGED, 8X30
-
130A130BB1075 BOLT-FLANGED, 10X75BOLT-FLANGED, 10X75
-
1101011010-0062 FILTER-ASSY-AIRFILTER-ASSY-AIR
-
1101311013-1263 ELEMENT-AIR FILTERELEMENT-AIR FILTER
-
1105011050-1404 BRACKETBRACKET
-
1106011060-1975 GASKET, AIR FILTER CASEGASKET, AIR FILTER CASE
-
1407314073-1699 DUCTDUCT
-
14073A14073-1700 DUCTDUCT
-
1409014090-1766 COVER, AIR FILTERCOVER, AIR FILTER
-
9200192001-1703 BOLT, WING, 6X15BOLT, WING, 6X15
-
9201592015-1432 NUT, 8MMNUT, 8MM
-
92015A92015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9202292022-1632 WASHER, 9X28X2.3WASHER, 9X28X2.3
-
9202792027-1081 COLLAR, 8.8X12X15.5COLLAR, 8.8X12X15.5
-
9207592075-1736 DAMPERDAMPER
-
9215292152-0083 COLLAR, 10.5X16X50COLLAR, 10.5X16X50
-
9216092160-1102 DAMPERDAMPER
-
9217092170-1674 CLAMPCLAMP
-
92170A92170-1764 CLAMPCLAMP
