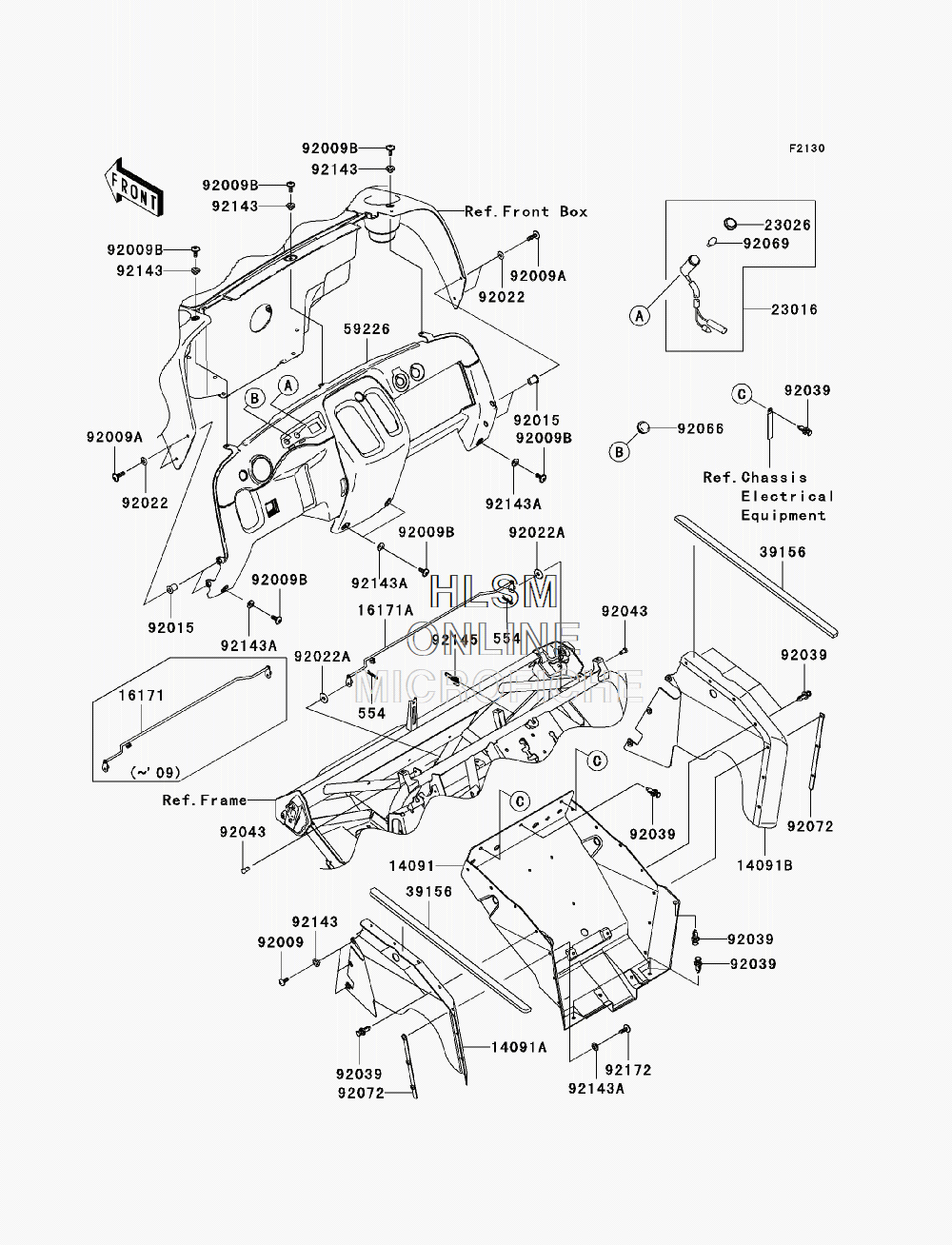

FRAME FITTINGS (FRONT) для Kawasaki MULE 600 (KAF400B7F) - 2007 года выпуска`
-
№АртикулНазвание
-
554554DA0600 PIN-SNAPPIN-SNAP
-
1409114091-0408 COVER, FLOOR, CNTCOVER, FLOOR, CNT
-
14091A14091-0424 COVER, FLOOR, SIDE, LEFT HANDCOVER, FLOOR, SIDE, LEFT HAND
-
14091B14091-0425 COVER, FLOOR, SIDE, RIGHT HANDCOVER, FLOOR, SIDE, RIGHT HAND
-
1617116171-0010 LINK, HOODLINK, HOOD
-
2301623016-1128 LAMP-ASSY, TEMPLAMP-ASSY, TEMP
-
2302623026-1157 LENS, TEMP LAMPLENS, TEMP LAMP
-
3915639156-0071 PADPAD
-
5922659226-0009-284 PANEL-CONTROL, GRAYPANEL-CONTROL, GRAY
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1256 SCREW, 6X22, BLACKSCREW, 6X22, BLACK
-
92009B92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1700 NUTNUT
-
9202292022-1143 WASHER, 6.5X16X1WASHER, 6.5X16X1
-
92022A92022-1346 WASHER, 6.5X20X1.6, BLACKWASHER, 6.5X20X1.6, BLACK
-
9203992039-1229 RIVETRIVET
-
9204392043-1626 PIN, 6X9PIN, 6X9
-
9206692066-1231 PLUGPLUG
-
9206992069-1059 BULB, 12V 1.7W, T10BULB, 12V 1.7W, T10
-
9207292072-0042 BANDBAND
-
9214392143-1057 COLLARCOLLAR
-
92143A92143-1087 COLLARCOLLAR
-
9214592145-0215 SPRINGSPRING
-
9217292172-0002 SCREW, 6X18SCREW, 6X18
