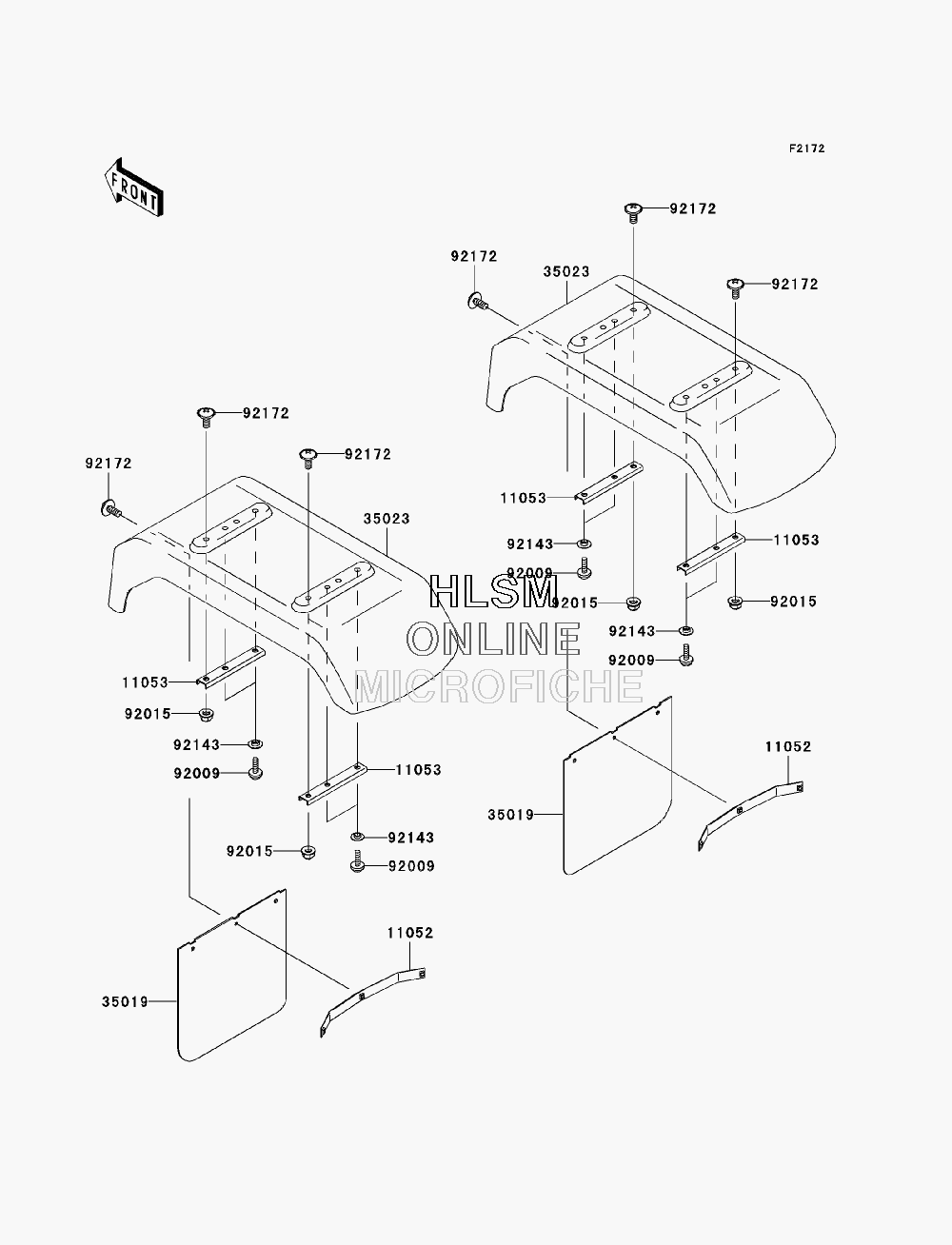

FENDER - REAR для Kawasaki MULE 3010 TRANS4X4 HARDWOODS GREEN HD (KAF620K7F) - 2007 года выпуска
-
№АртикулНазвание
-
1105211052-1313 BRACKET, REAR FLAPBRACKET, REAR FLAP
-
1105311053-7558 BRACKET, REAR FENDERBRACKET, REAR FENDER
-
3501935019-1244 FLAP, REAR FENDERFLAP, REAR FENDER
-
3502335023-1557 FENDER-REARFENDER-REAR
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9214392143-1087 COLLARCOLLAR
-
9217292172-0004 SCREW, 6X14SCREW, 6X14
