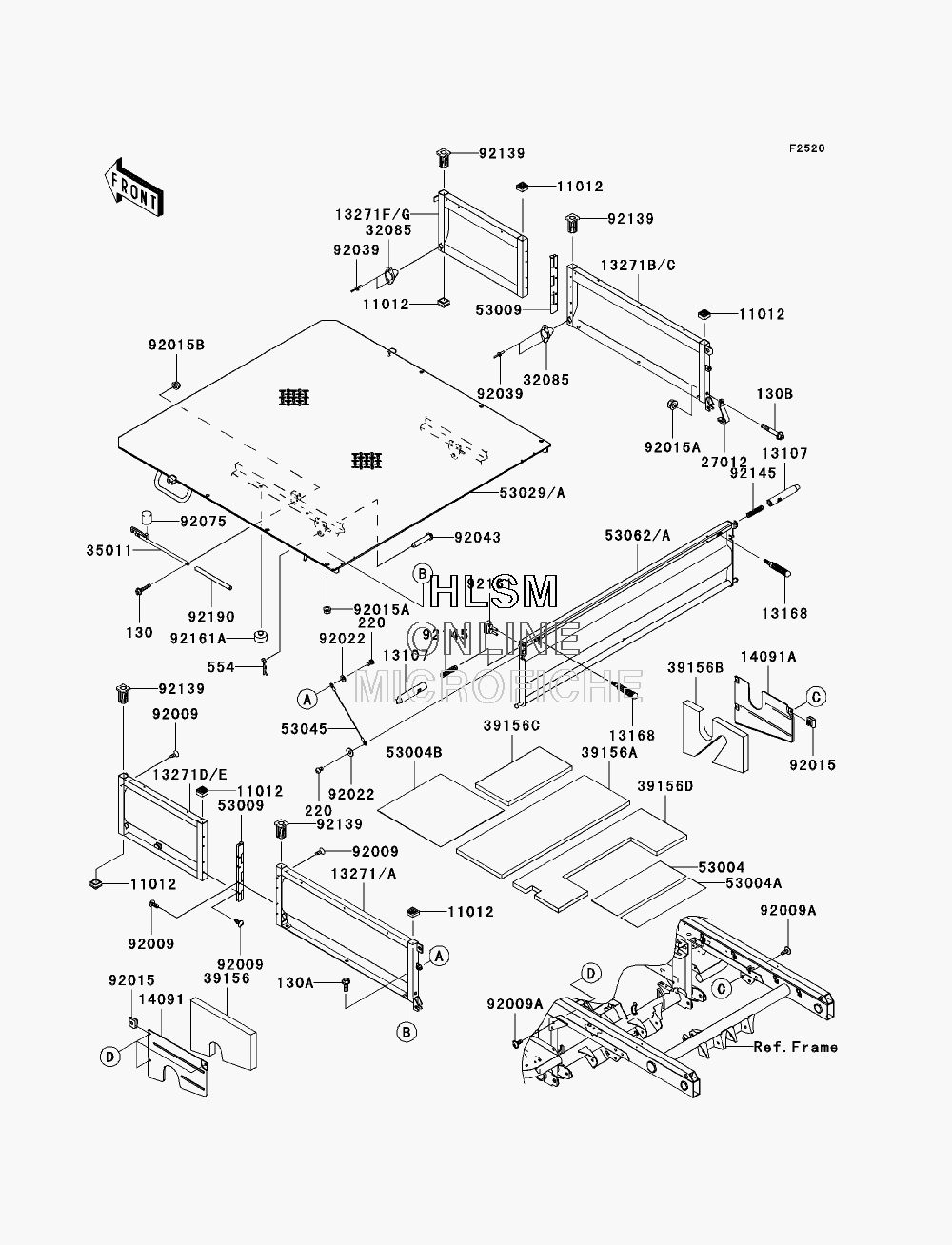

CARRIER(S) для Kawasaki MULE 3010 TRANS4X4 DIESEL (KAF950C7F) - 2007 года выпуска`
-
№АртикулНазвание
-
1101211012-1784 CAPCAP
-
1310713107-0001 SHAFTSHAFT
-
1316813168-7501 LEVERLEVER
-
1327113271-7532-398 PLATE, SIDE, REAR, LEFT HAND, W. GREEN (FOR 398)PLATE, SIDE, REAR, LEFT HAND, W. GREEN (FOR 398)
-
13271A13271-7532-467 PLATE, SIDE, REAR, LEFT HAND, A. RED (FOR 467)PLATE, SIDE, REAR, LEFT HAND, A. RED (FOR 467)
-
13271B13271-7534-398 PLATE, SIDE, REAR, RIGHT HAND, W. GREEN (FOR 398)PLATE, SIDE, REAR, RIGHT HAND, W. GREEN (FOR 398)
-
13271C13271-7534-467 PLATE, SIDE, REAR, RIGHT HAND, A. RED (FOR 467)PLATE, SIDE, REAR, RIGHT HAND, A. RED (FOR 467)
-
13271D13271-7535-398 PLATE, SIDE, FRONT, LEFT HAND, W. GREEN (FOR 398)PLATE, SIDE, FRONT, LEFT HAND, W. GREEN (FOR 398)
-
13271E13271-7535-467 PLATE, SIDE, FRONT, LEFT HAND, A. RED (FOR 467)PLATE, SIDE, FRONT, LEFT HAND, A. RED (FOR 467)
-
13271F13271-7537-398 PLATE, SIDE, FRONT, RIGHT HAND, W. GREEN (FOR 398)PLATE, SIDE, FRONT, RIGHT HAND, W. GREEN (FOR 398)
-
13271G13271-7537-467 PLATE, SIDE, FRONT, RIGHT HAND, A. RED (FOR 467)PLATE, SIDE, FRONT, RIGHT HAND, A. RED (FOR 467)
-
1409114091-7546 COVER, ENCLOSURE, LEFT HANDCOVER, ENCLOSURE, LEFT HAND
-
14091A14091-7555 COVER, ENCLOSURE, RIGHT HANDCOVER, ENCLOSURE, RIGHT HAND
-
2701227012-0022 HOOK, TAIL GATEHOOK, TAIL GATE
-
3208532085-7501 STOPPERSTOPPER
-
3501135011-1648 STAY, CARRIER STOPPERSTAY, CARRIER STOPPER
-
3915639156-0007 PAD, ENCLOSURE COVER, LEFT HANDPAD, ENCLOSURE COVER, LEFT HAND
-
39156A39156-0010 PAD, CARRIER, MIDDLEPAD, CARRIER, MIDDLE
-
39156B39156-7503 PAD, ENCLOSURE COVER, RIGHT HANDPAD, ENCLOSURE COVER, RIGHT HAND
-
39156C39156-7504 PAD, CARRIER, FRONTPAD, CARRIER, FRONT
-
39156D39156-7505 PAD, CARRIER, REARPAD, CARRIER, REAR
-
5300453004-0004 MAT, CARRIER, MIDDLEMAT, CARRIER, MIDDLE
-
53004A53004-0005 MAT, CARRIER, REARMAT, CARRIER, REAR
-
53004B53004-7502 MAT, CARRIER, FRONTMAT, CARRIER, FRONT
-
5300953009-7501 HINGE, CARRIERHINGE, CARRIER
-
5302953029-7512-398 CARRIER, W. GREEN (FOR 398)CARRIER, W. GREEN (FOR 398)
-
53029A53029-7512-467 CARRIER, A. RED (FOR 467)CARRIER, A. RED (FOR 467)
-
5304553045-0004 HOOK-ASSY, TAIL GATEHOOK-ASSY, TAIL GATE
-
5306253062-7503-398 GATE-TAIL, W. GREEN (FOR 398)GATE-TAIL, W. GREEN (FOR 398)
-
53062A53062-7503-467 GATE-TAIL, A. RED (FOR 467)GATE-TAIL, A. RED (FOR 467)
-
9200992009-1166 SCREW, TAPPING, 6X16SCREW, TAPPING, 6X16
-
92009A92009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1094 NUT, 6MMNUT, 6MM
-
92015A92015-1408 NUT, FLANGED, 8MMNUT, FLANGED, 8MM
-
92015B92015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-1545 WASHER, 7X18X1.2WASHER, 7X18X1.2
-
9203992039-1150 RIVETRIVET
-
9204392043-1428 PIN, 12X65PIN, 12X65
-
9207592075-1817 DAMPERDAMPER
-
9213992139-7501 BUSHING, REAR SCREENBUSHING, REAR SCREEN
-
130130H0630 BOLT-FLANGED, 6X30BOLT-FLANGED, 6X30
-
130A130J0820 BOLT-FLANGED, 8X20BOLT-FLANGED, 8X20
-
130B130J0850 BOLT-FLANGED, 8X50BOLT-FLANGED, 8X50
-
220220F0610 SCREW-PAN-CROSS, 6X10SCREW-PAN-CROSS, 6X10
-
554554A1200 PIN-SNAP, 12MMPIN-SNAP, 12MM
-
9214592145-1215 SPRING, TENSIONERSPRING, TENSIONER
-
9216192161-0258 DAMPERDAMPER
-
92161A92161-7510 DAMPERDAMPER
-
9219092190-1401 TUBE, 13X16X200TUBE, 13X16X200
