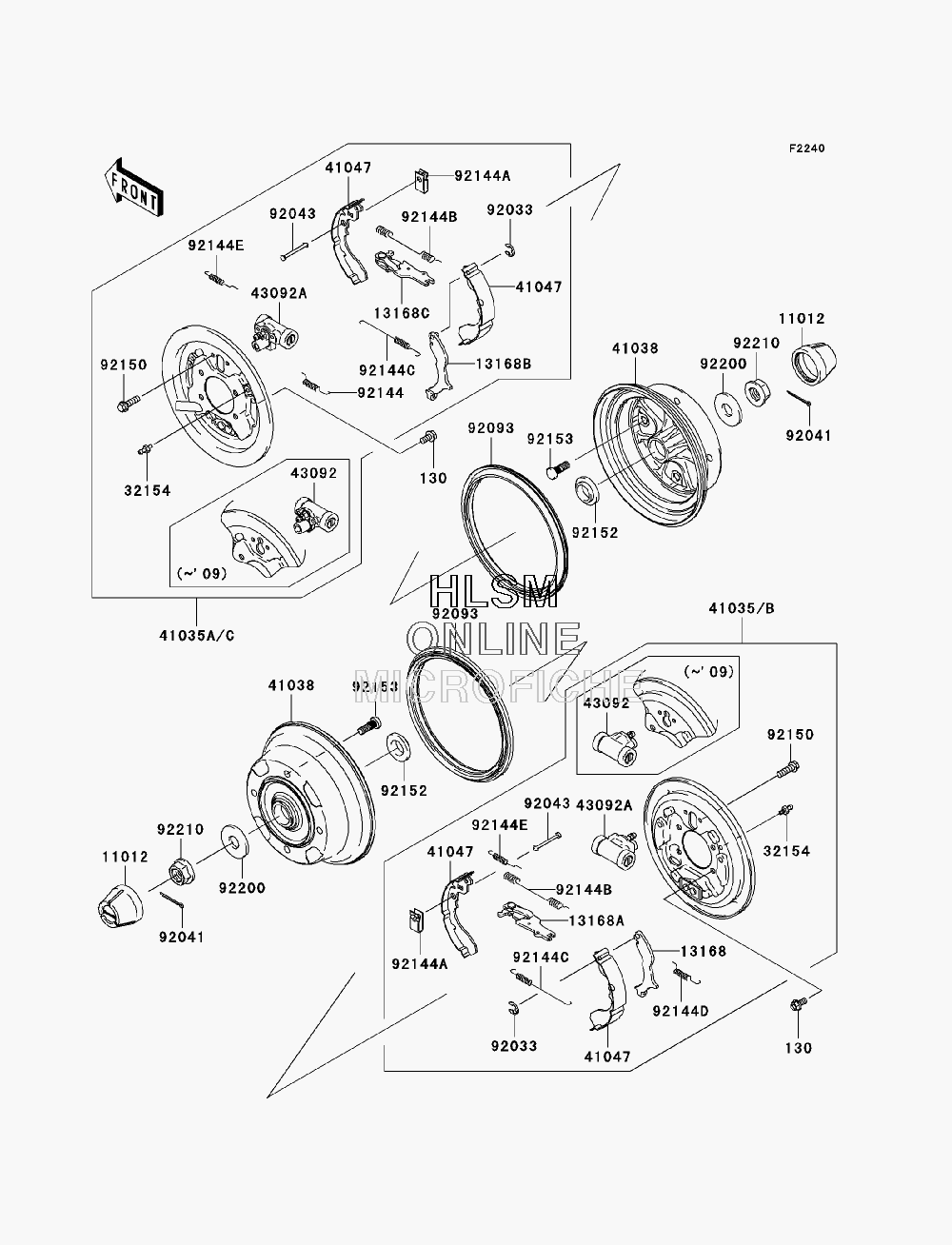

BRAKE - REAR W/ HUBS для Kawasaki MULE 610 4x4 (KAF400A6F) - 2006 года выпуска`
-
№АртикулНазвание
-
130130CA0816 BOLT-FLANGED, 8X16BOLT-FLANGED, 8X16
-
1101211012-1969 CAP, WHEELCAP, WHEEL
-
1316813168-0065 LEVER, BRAKE, LEFT HANDLEVER, BRAKE, LEFT HAND
-
13168A13168-0066 LEVER, BRAKE, LEFT HANDLEVER, BRAKE, LEFT HAND
-
13168B13168-0067 LEVER, BRAKE, RIGHT HANDLEVER, BRAKE, RIGHT HAND
-
13168C13168-0068 LEVER, BRAKE, RIGHT HANDLEVER, BRAKE, RIGHT HAND
-
3215432154-0335 PIPEPIPE
-
4103541035-0013 PANEL-ASSY-BRAKE, REAR, LEFT HANDPANEL-ASSY-BRAKE, REAR, LEFT HAND
-
41035A41035-0015 PANEL-ASSY-BRAKE, REAR, RIGHT HANDPANEL-ASSY-BRAKE, REAR, RIGHT HAND
-
4103841038-0018 DRUM, REAR BRAKEDRUM, REAR BRAKE
-
4104741047-1052 SHOE-ASSY-BRAKE, REARSHOE-ASSY-BRAKE, REAR
-
4309243092-0001 CYLINDERCYLINDER
-
9203392033-1279 RING-SNAPRING-SNAP
-
9204192041-1053 COTTER, 4.0X35COTTER, 4.0X35
-
9204392043-1460 PIN, SHOE HOLDPIN, SHOE HOLD
-
9209392093-0031 SEAL, BS184.8X13.5-1SEAL, BS184.8X13.5-1
-
9214492144-1608 SPRING, RIGHT HANDSPRING, RIGHT HAND
-
92144A92144-1609 SPRING, SHOE HOLDSPRING, SHOE HOLD
-
92144B92144-1612 SPRING, RETURN, UPPSPRING, RETURN, UPP
-
92144C92144-1613 SPRING, RETURN, LWRSPRING, RETURN, LWR
-
92144D92144-1614 SPRINGSPRING
-
92144E92144-1615 SPRINGSPRING
-
9215092150-1664 BOLT, FLANGED, 6X10BOLT, FLANGED, 6X10
-
9215292152-0284 COLLARCOLLAR
-
9215392153-0920 BOLT, 10X30BOLT, 10X30
-
9220092200-0130 WASHER, 20.3X52X4.5WASHER, 20.3X52X4.5
-
9221092210-2093 NUT, FLANGED, 20MMNUT, FLANGED, 20MM
