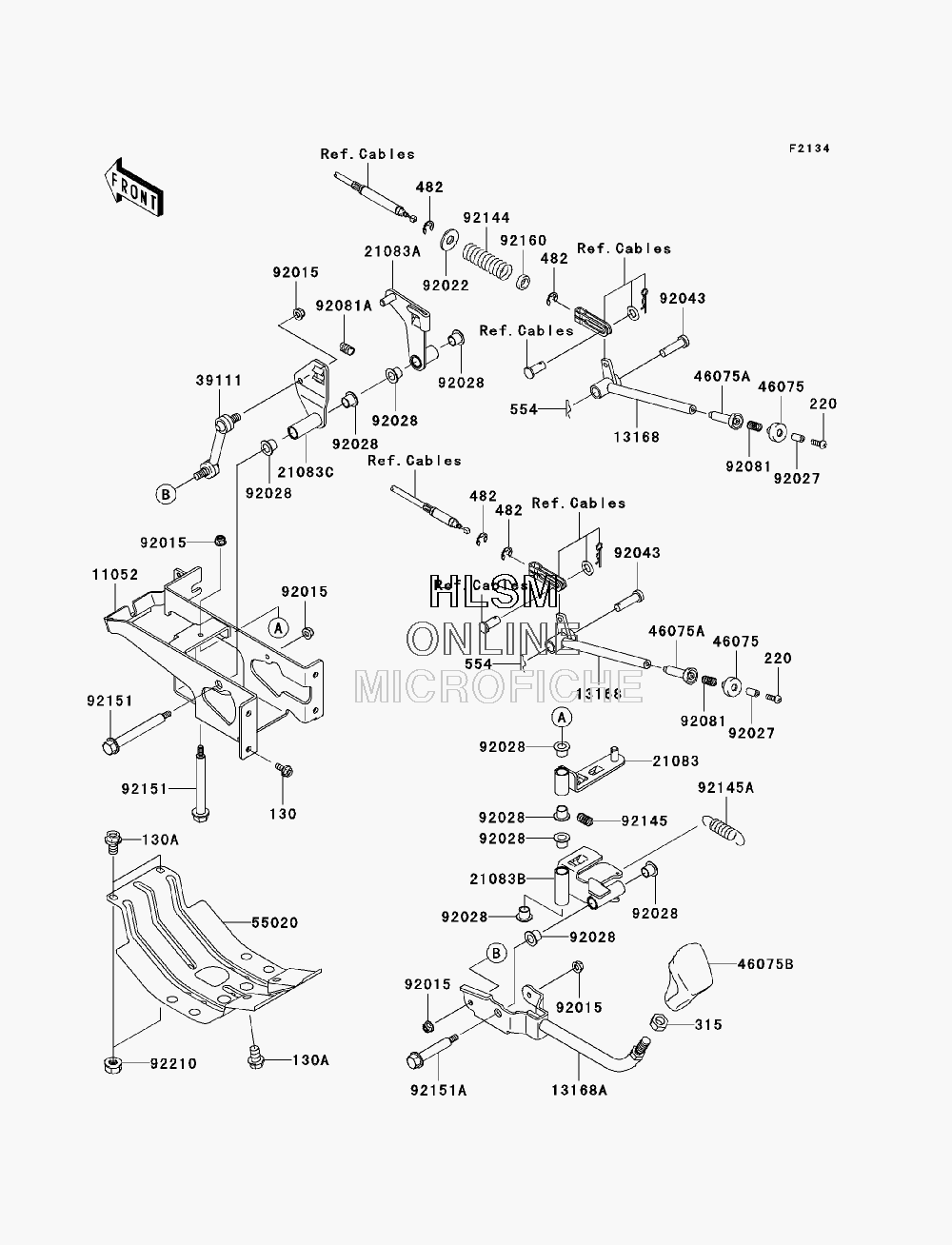

SHIFT LEVER(S) (UP TO JK1AFDB1 6B511025) для Kawasaki MULE 3010 Diesel 4x4 (KAF950B6F) - 2006 года выпуска
-
№АртикулНазвание
-
130130C0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130A130G1016 BOLT-FLANGED, 10X16BOLT-FLANGED, 10X16
-
220220F0514 SCREW-PAN-CROSS, 5X14SCREW-PAN-CROSS, 5X14
-
315315J1000 NUT-HEX-FINENUT-HEX-FINE
-
482482L8000 CIRCLIP-TYPE-E, 8MMCIRCLIP-TYPE-E, 8MM
-
554554A1000 PIN-SNAP, 10MMPIN-SNAP, 10MM
-
1105211052-1263 BRACKET, SHIFT CONTROLBRACKET, SHIFT CONTROL
-
1316813168-1428 LEVER, DIFF MODE CONTROLLEVER, DIFF MODE CONTROL
-
13168A13168-1719 LEVER, SHIFTLEVER, SHIFT
-
2108321083-1151 ARMARM
-
21083A21083-1152 ARMARM
-
21083B21083-1155 ARMARM
-
21083C21083-1162 ARMARM
-
3911139111-1169 ROD-TIEROD-TIE
-
4607546075-1085 GRIP, UPPGRIP, UPP
-
46075A46075-1086 GRIP, LWRGRIP, LWR
-
46075B46075-1187 GRIP, SHIFT LEVERGRIP, SHIFT LEVER
-
5502055020-0171 GUARD, FRONT DIFF CASEGUARD, FRONT DIFF CASE
-
9201592015-1675 NUT, LOCK, FLANGED, 6MMNUT, LOCK, FLANGED, 6MM
-
9202292022-044 WASHER, 10.5X26X2.3WASHER, 10.5X26X2.3
-
9202792027-1987 COLLARCOLLAR
-
9202892028-1507 BUSHINGBUSHING
-
9204392043-1069 PIN, 10X34PIN, 10X34
-
9208192081-1714 SPRINGSPRING
-
92081A92081-1847 SPRINGSPRING
-
9214492144-1510 SPRINGSPRING
-
9214592145-0073 SPRINGSPRING
-
92145A92145-1326 SPRINGSPRING
-
9215192151-1746 BOLT, 6MMBOLT, 6MM
-
92151A92151-1747 BOLT, 6MMBOLT, 6MM
-
9216092160-3754 DAMPERDAMPER
-
9221092210-1204 NUT, LOCK, 10MMNUT, LOCK, 10MM
