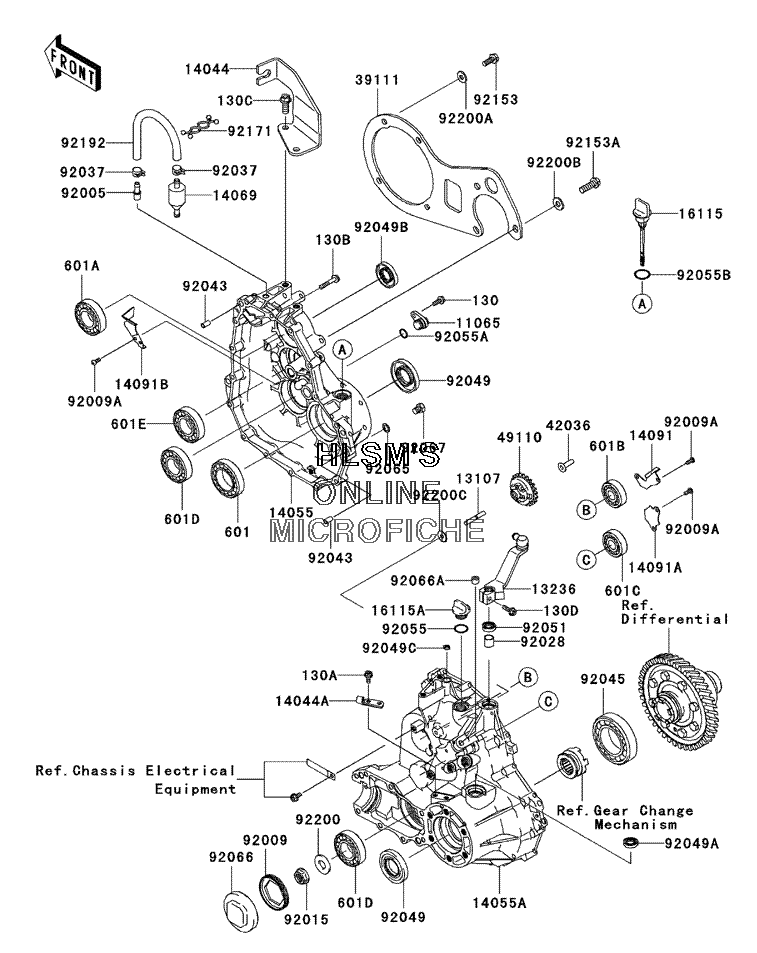

GEAR BOX для Kawasaki MULE 600 (KAF400-B1) - 2005 года выпуска`
-
№АртикулНазвание
-
1106511065-0062 CAP, GEAR CASE (RIGHT)CAP, GEAR CASE (RIGHT)
-
1310713107-2235 SHAFTSHAFT
-
1323613236-0039 LEVER-COMPLEVER-COMP
-
1404414044-0005 HOLDER-CABLE, SHIFT CONTROLHOLDER-CABLE, SHIFT CONTROL
-
14044A14044-0006 HOLDER-CABLE, DIFF-LOCKHOLDER-CABLE, DIFF-LOCK
-
1405514055-0008 CASE-GEAR (RIGHT)CASE-GEAR (RIGHT)
-
14055A14055-0013 CASE-GEAR (LEFT)CASE-GEAR (LEFT)
-
1406914069-1051 BREATHERBREATHER
-
1409114091-0350 COVERCOVER
-
14091A14091-0366 COVERCOVER
-
14091B14091-0394 COVERCOVER
-
1611516115-0015 CAP-OIL FILLERCAP-OIL FILLER
-
16115A16115-1053 CAP-OIL FILLERCAP-OIL FILLER
-
3911139111-0016 ROD-TIEROD-TIE
-
4203642036-2060 SLEEVESLEEVE
-
4911049110-0004 GOVERNOR-ASSY.GOVERNOR-ASSY.
-
9200592005-1127 FITTING, BREATHERFITTING, BREATHER
-
9200992009-1914 SCREW, 64MMSCREW, 64MM
-
92009A92009-2308 SCREWSCREW
-
9201592015-1581 NUT, 16MMNUT, 16MM
-
9202892028-1347 BUSHINGBUSHING
-
9203792037-1505 CLAMP, TUBECLAMP, TUBE
-
9204392043-1263 PIN, 6.2X8X14PIN, 6.2X8X14
-
9204592045-1213 BEARING-BALL, 6210CMBEARING-BALL, 6210CM
-
9204992049-0049 SEAL-OIL, HTC 30 60 8SEAL-OIL, HTC 30 60 8
-
92049A92049-1520 SEAL-OIL, TC14245SEAL-OIL, TC14245
-
92049B92049-1576 SEAL-OIL, HTC 28X45X7SEAL-OIL, HTC 28X45X7
-
92049C92049-2097 SEAL-OIL, VC-6X10X2.5SEAL-OIL, VC-6X10X2.5
-
9205192051-005 SEAL-OIL, TB13225.5SEAL-OIL, TB13225.5
-
9205592055-012 RING-ORING-O
-
92055A92055-1141 RING-O, ID=13.8RING-O, ID=13.8
-
92055B92055-2185 RING-O, 20X3RING-O, 20X3
-
9206592065-058 GASKET, 10.5X16X1GASKET, 10.5X16X1
-
9206692066-0033 PLUGPLUG
-
92066A92066-1227 PLUG, PT1/8X7PLUG, PT1/8X7
-
9206792067-001 PLUG, DRAIN, 10X12PLUG, DRAIN, 10X12
-
9215392153-0898 BOLT, FLANGED, 8X21BOLT, FLANGED, 8X21
-
92153A92153-0908 BOLT, 10X30BOLT, 10X30
-
9217192171-0476 CLAMPCLAMP
-
9219292192-0216 TUBETUBE
-
130130G0616 BOLT-FLANGED, 6X16BOLT-FLANGED, 6X16
-
130A130H0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
130B130H0635 BOLT-FLANGED, 6X35BOLT-FLANGED, 6X35
-
130C130H1025 BOLT-FLANGED, 10X25BOLT-FLANGED, 10X25
-
130D130T0620 BOLT-FLANGED, 6X20BOLT-FLANGED, 6X20
-
601601B6008 BEARING-BALLBEARING-BALL
-
601A601B6206 BEARING-BALL, #6206BEARING-BALL, #6206
-
601B601B6303 BEARING-BALL, #6303BEARING-BALL, #6303
-
601C601B6303U BEARING-BALLBEARING-BALL
-
601D601B6305 BEARING-BALL, #6305BEARING-BALL, #6305
-
601E601B6305U BEARING-BALL, #6305UBEARING-BALL, #6305U
-
9220092200-0119 WASHER, 16.3X35X3.2WASHER, 16.3X35X3.2
-
92200A92200-0205 WASHER, 8.2X20.0X2.5WASHER, 8.2X20.0X2.5
-
92200B92200-0211 WASHER, 10.2X23.0X2.5WASHER, 10.2X23.0X2.5
-
92200C92200-2036 WASHER, 6.2X20X0.5WASHER, 6.2X20X0.5
