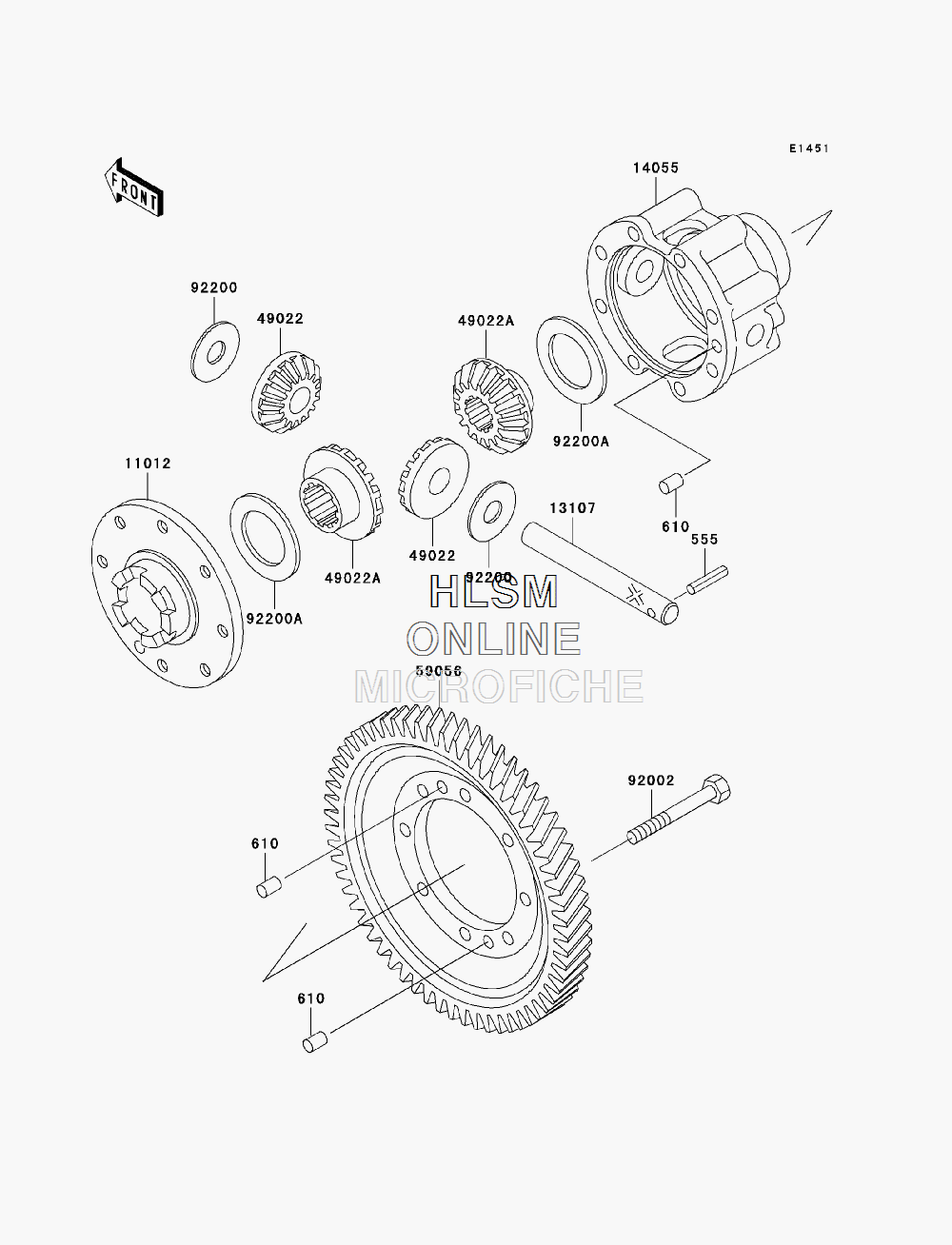

DIFFERENTIAL для Kawasaki MULE 3010 4x4 (KAF620-E3) - 2003 года выпуска
-
№АртикулНазвание
-
555555A0528 PIN-SPRINGPIN-SPRING
-
610610A0812 ROLLER, 8X12ROLLER, 8X12
-
1101211012-1613 CAP, GEAR CASECAP, GEAR CASE
-
1310713107-1219 SHAFTSHAFT
-
1405514055-1113 CASE-GEAR, DIFFERENTIALCASE-GEAR, DIFFERENTIAL
-
4902249022-1105 GEAR-BEVEL, 10TGEAR-BEVEL, 10T
-
49022A49022-1117 GEAR-BEVEL, 16TGEAR-BEVEL, 16T
-
5905659056-1056 GEAR-HELICAL, DIFFERENTIAL, 81TGEAR-HELICAL, DIFFERENTIAL, 81T
-
9200292002-1553 BOLT, 8X68BOLT, 8X68
-
9220092200-1044 WASHER, 14.5X38X1.0WASHER, 14.5X38X1.0
-
92200A92200-1045 WASHER, 35.5X54X1.0WASHER, 35.5X54X1.0
