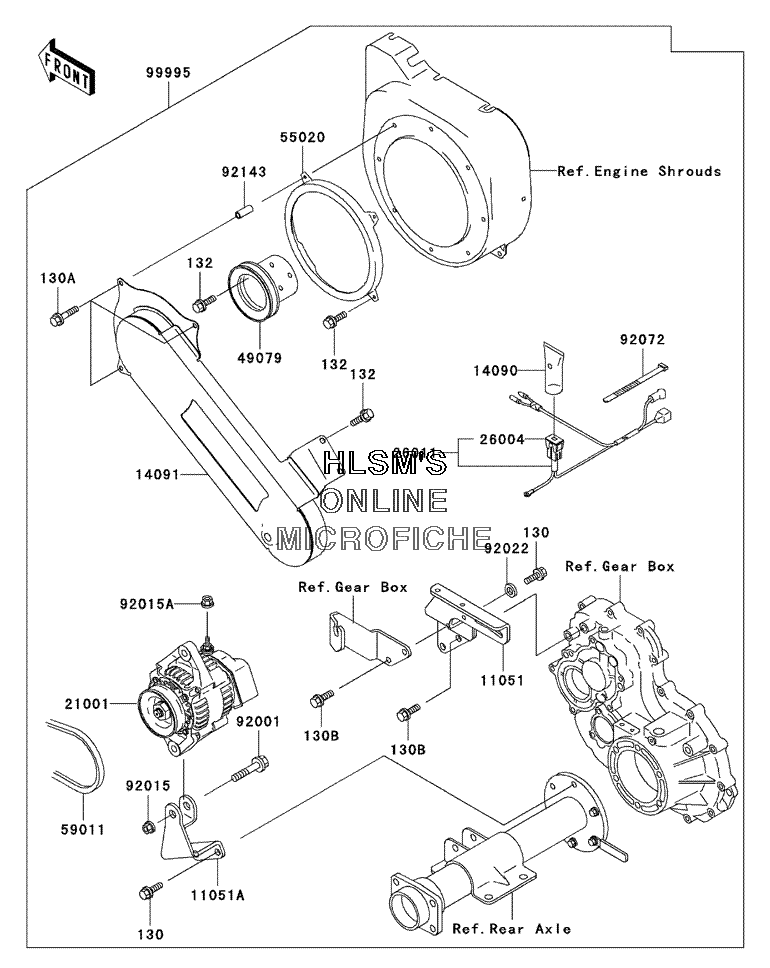

GENERATOR (OPTIONAL) для Kawasaki MULE 550 (KAF300-C5) - 2001 года выпуска

  • №
    Артикул
    Название
  • 130
    130H0830 BOLT-FLANGED, 8X30
    BOLT-FLANGED, 8X30
  • 130A
    130J0635 BOLT-FLANGED, 6X35
    BOLT-FLANGED, 6X35
  • 130B
    130J0820 BOLT-FLANGED, 8X20
    BOLT-FLANGED, 8X20
  • 132
    132J0612 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 11051
    11051-1359 BRACKET, GENERATOR, UPPER
    BRACKET, GENERATOR, UPPER
  • 11051A
    11051-1360 BRACKET, GENERATOR, LOWER
    BRACKET, GENERATOR, LOWER
  • 14090
    14090-1362 COVER, FUSE
    COVER, FUSE
  • 14091
    14091-1141 COVER, PULLEY BELT
    COVER, PULLEY BELT
  • 21001
    21001-1129 GENERATOR
    GENERATOR
  • 26004
    26004-1096 FUSE-ASSY, 50A
    FUSE-ASSY, 50A
  • 26011
    26011-1586 WIRE-LEAD, GENERATOR
    WIRE-LEAD, GENERATOR
  • 49079
    49079-1060 PULLEY-BELT
    PULLEY-BELT
  • 55020
    55020-2070 GUARD, FLYWHEEL SIDE
    GUARD, FLYWHEEL SIDE
  • 59011
    59011-1064 BELT
    BELT
  • 92001
    92001-1522 BOLT (BLACK), 10X47
    BOLT (BLACK), 10X47
  • 92015
    92015-1189 NUT, LOCK, 10MM (BLACK)
    NUT, LOCK, 10MM (BLACK)
  • 92015A
    92015-1367 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92022
    92022-1317 WASHER, 8.5X20X1.6 (BLACK)
    WASHER, 8.5X20X1.6 (BLACK)
  • 92072
    92072-030 BAND, L=123
    BAND, L=123
  • 92143
    92143-1046 COLLAR
    COLLAR
  • 99995
    99995-1472 KIT., ALTERNATOR
    KIT., ALTERNATOR
