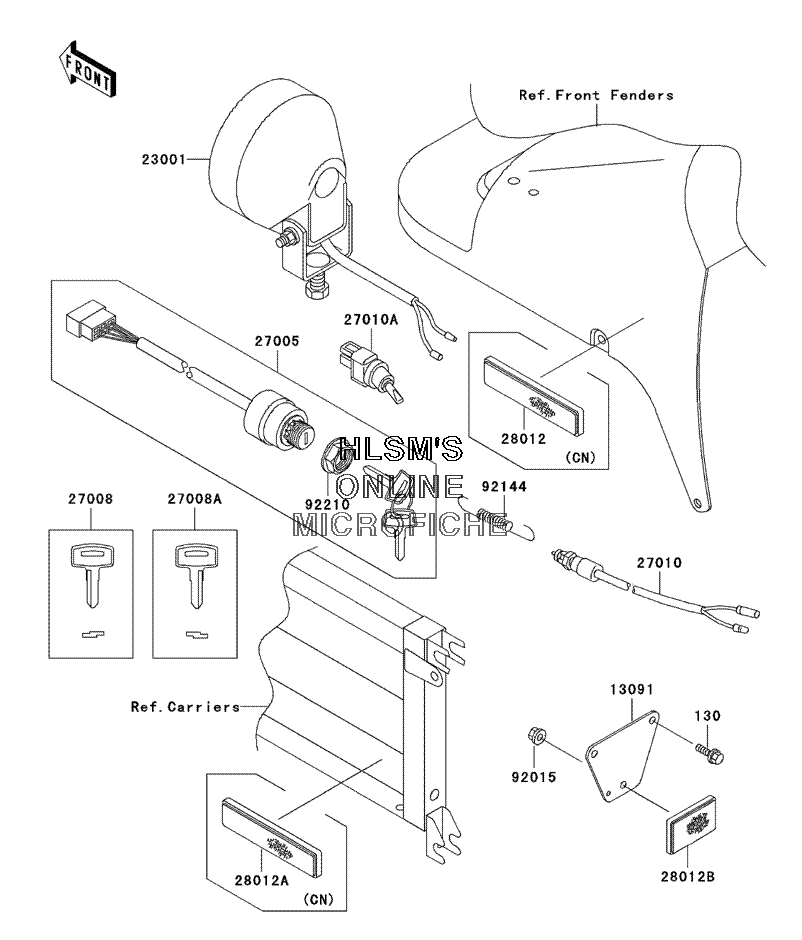

HEADLIGHT(S) W/ IGNITION SWITCH для Kawasaki MULE 550 (KAF300-C4) - 2000 года выпуска`
-
№АртикулНазвание
-
130130J0614 BOLT-FLANGED, 6X14 (BLACK)BOLT-FLANGED, 6X14 (BLACK)
-
1309113091-1745 HOLDER, REFLECTORHOLDER, REFLECTOR
-
2300123001-1120 LAMP-ASSY-HEADLAMP-ASSY-HEAD
-
2700527005-1146 SWITCH-ASSY-IGNITIONSWITCH-ASSY-IGNITION
-
2700827008-1153 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
27008A27008-1157 KEY-LOCK, BLANK (OPTION)KEY-LOCK, BLANK (OPTION)
-
2701027010-1181 SWITCH, BRAKE LAMPSWITCH, BRAKE LAMP
-
27010A27010-1265 SWITCH, HEAD LAMPSWITCH, HEAD LAMP
-
28012B28012-1088 REFLECTOR-REFLEXREFLECTOR-REFLEX
-
9201592015-1259 NUT, FLANGED, 5MMNUT, FLANGED, 5MM
-
9214492144-1143 SPRING, REAR BRAKE SWITCHSPRING, REAR BRAKE SWITCH
-
9221092210-1264 NUT, IGNITION SWITCHNUT, IGNITION SWITCH
