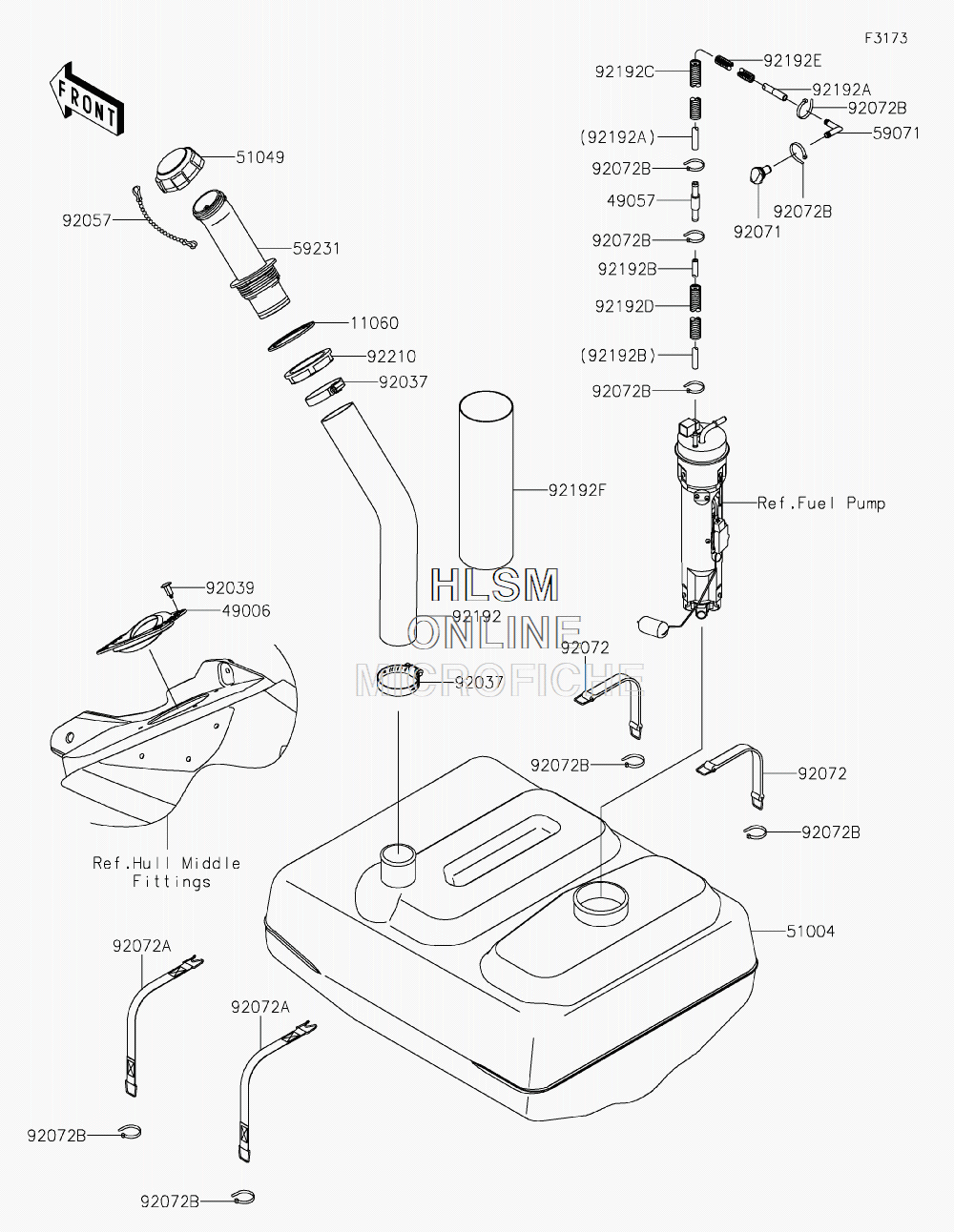

FUEL TANK для Kawasaki ULTRA 310X SE (JT1500PKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1106011060-3780 GASKET, FUEL-FILLERGASKET, FUEL-FILLER
-
4900649006-3719 BOOTBOOT
-
4905749057-0002 VALVE-RELIEFVALVE-RELIEF
-
5100451004-0710 TANK-FUELTANK-FUEL
-
5104951049-0713 CAP-TANK, FUELCAP-TANK, FUEL
-
5907159071-3736 JOINTJOINT
-
5923159231-3727 FILLER, FUEL TANKFILLER, FUEL TANK
-
9203792037-3738 CLAMPCLAMP
-
9203992039-3788 RIVETRIVET
-
9205792057-3704 CHAIN, COVER, L=100CHAIN, COVER, L=100
-
9207192071-3841 GROMMETGROMMET
-
9207292072-3845 BANDBAND
-
92072A92072-3847 BANDBAND
-
92072B92072-3882 BAND, L=100.08BAND, L=100.08
-
9219292192-1044 TUBE, FUEL TANK-FILLERTUBE, FUEL TANK-FILLER
-
92192A92192-1515 TUBE, 5.8X10.8X1000TUBE, 5.8X10.8X1000
-
92192B92192-1795 TUBE, 5.8X11X100TUBE, 5.8X11X100
-
92192C92192-3748 TUBE, CORRUGATED, 15.3X20.6X650TUBE, CORRUGATED, 15.3X20.6X650
-
92192D92192-3749 TUBE, CORRUGATED, L=120TUBE, CORRUGATED, L=120
-
92192E92192-3788 TUBE, CORRUGATED, L=350TUBE, CORRUGATED, L=350
-
92192F92192-3822 TUBE, 86X89X300TUBE, 86X89X300
-
9221092210-3802 NUT, FUEL FILLERNUT, FUEL FILLER
