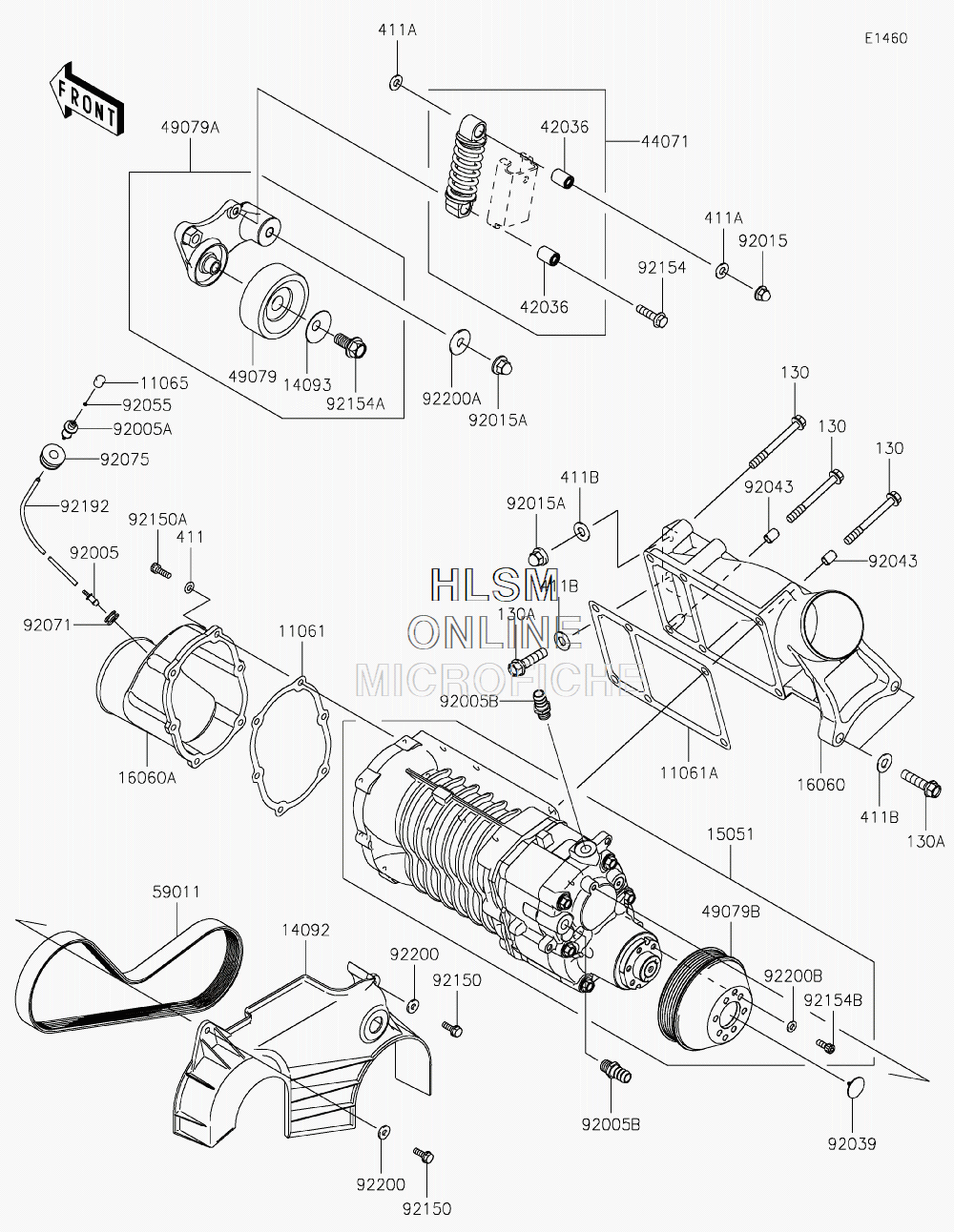

SUPER CHARGER для Kawasaki ULTRA 310X (JT1500LKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1106111061-0760 GASKET, COMPRESSOR INLETGASKET, COMPRESSOR INLET
-
11061A11061-3763 GASKET, COMPRESSOR OUTGASKET, COMPRESSOR OUT
-
1106511065-0156 CAPCAP
-
130130CD0875 BOLT-FLANGED, 8X75BOLT-FLANGED, 8X75
-
130A130CD1040 BOLT-FLANGED, 10X40BOLT-FLANGED, 10X40
-
1409214092-0838 COVER, BELTCOVER, BELT
-
1409314093-0222 COVERCOVER
-
1505115051-3704 COMPRESSOR-AIR, SUPER CHARGERCOMPRESSOR-AIR, SUPER CHARGER
-
1606016060-0028 PIPE-INTAKE, COMPRESSOR OUTPIPE-INTAKE, COMPRESSOR OUT
-
16060A16060-0738 PIPE-INTAKE, COMPRESSOR INLETPIPE-INTAKE, COMPRESSOR INLET
-
411411S0600 WASHER-PLAIN, 6MMWASHER-PLAIN, 6MM
-
411A411S0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
411B411S1000 WASHER-PLAIN, 10MMWASHER-PLAIN, 10MM
-
4203642036-0713 SLEEVESLEEVE
-
4407144071-0776 DAMPER-ASSYDAMPER-ASSY
-
4907949079-0025 PULLEY-BELTPULLEY-BELT
-
49079A49079-0028 PULLEY-BELTPULLEY-BELT
-
49079B49079-3704 PULLEY-BELTPULLEY-BELT
-
5901159011-0032 BELT, 6PK845BELT, 6PK845
-
9200592005-0722 FITTINGFITTING
-
92005A92005-0723 FITTINGFITTING
-
92005B92005-3714 FITTINGFITTING
-
9201592015-1371 NUT, CAP, 8MMNUT, CAP, 8MM
-
92015A92015-1649 NUT, 10MMNUT, 10MM
-
9203992039-3795 RIVETRIVET
-
9204392043-3764 PIN, 8.2X10.5X14PIN, 8.2X10.5X14
-
9205592055-0718 RING-O, 2X1RING-O, 2X1
-
9207192071-3733 GROMMETGROMMET
-
9207592075-1424 DAMPER, FUEL TANKDAMPER, FUEL TANK
-
9215092150-3729 BOLT, 6X18BOLT, 6X18
-
92150A92150-3775 BOLT, SOCKET, 6X18BOLT, SOCKET, 6X18
-
9215492154-0865 BOLTBOLT
-
92154A92154-1626 BOLTBOLT
-
92154B92154-3714 BOLT, SOCKET, 6X16BOLT, SOCKET, 6X16
-
9219292192-1004 TUBE, 3X4X600TUBE, 3X4X600
-
9220092200-1543 WASHER, 6.5X16X2.0WASHER, 6.5X16X2.0
-
92200A92200-3762 WASHERWASHER
-
92200B92200-3814 WASHER, 6.5X13X1.5WASHER, 6.5X13X1.5
