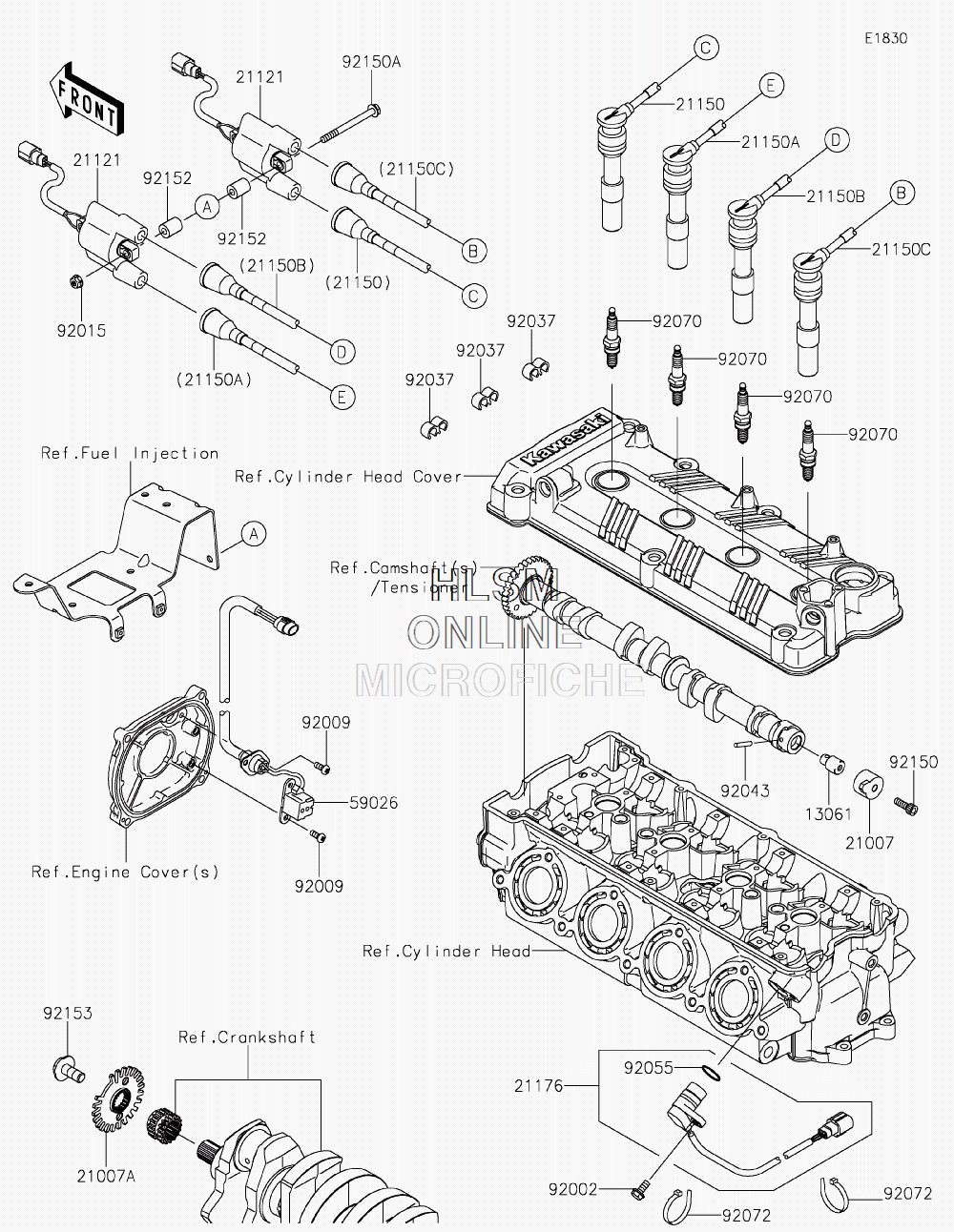

IGNITION SYSTEM для Kawasaki ULTRA 310R (JT1500NKF) - 2019 года выпуска`
-
№АртикулНазвание
-
1306113061-1687 BOSS, CAM SENSORBOSS, CAM SENSOR
-
2100721007-3742 ROTOR, EX CAMROTOR, EX CAM
-
21007A21007-3747 ROTOR, PULSINGROTOR, PULSING
-
2112121121-0720 COIL-IGNITIONCOIL-IGNITION
-
2115021150-0006 CORD-ASSY, #1, L=340CORD-ASSY, #1, L=340
-
21150A21150-0007 CORD-ASSY, #2, L=450CORD-ASSY, #2, L=450
-
21150B21150-0008 CORD-ASSY, #3, L=540CORD-ASSY, #3, L=540
-
21150C21150-0009 CORD-ASSY, #4, L=600CORD-ASSY, #4, L=600
-
2117621176-1077 SENSOR, CAM ANGLESENSOR, CAM ANGLE
-
5902659026-3702 COIL-PULSINGCOIL-PULSING
-
9200292002-3728 BOLT, 6X16BOLT, 6X16
-
9200992009-1296 SCREW, 5X12SCREW, 5X12
-
9201592015-3767 NUT, 6MMNUT, 6MM
-
9203792037-1603 CLAMP, CORDCLAMP, CORD
-
9204392043-1575 PINPIN
-
9205592055-1639 RING-ORING-O
-
9207092070-3707 PLUG-SPARK, PMR9B (NGK)PLUG-SPARK, PMR9B (NGK)
-
9207292072-0105 BAND, L=188.85BAND, L=188.85
-
9215092150-1645 BOLT, 6X18BOLT, 6X18
-
92150A92150-3753 BOLT, 6X70BOLT, 6X70
-
9215292152-3738 COLLARCOLLAR
-
9215392153-0549 BOLT, FLANGED, 8X23BOLT, FLANGED, 8X23
