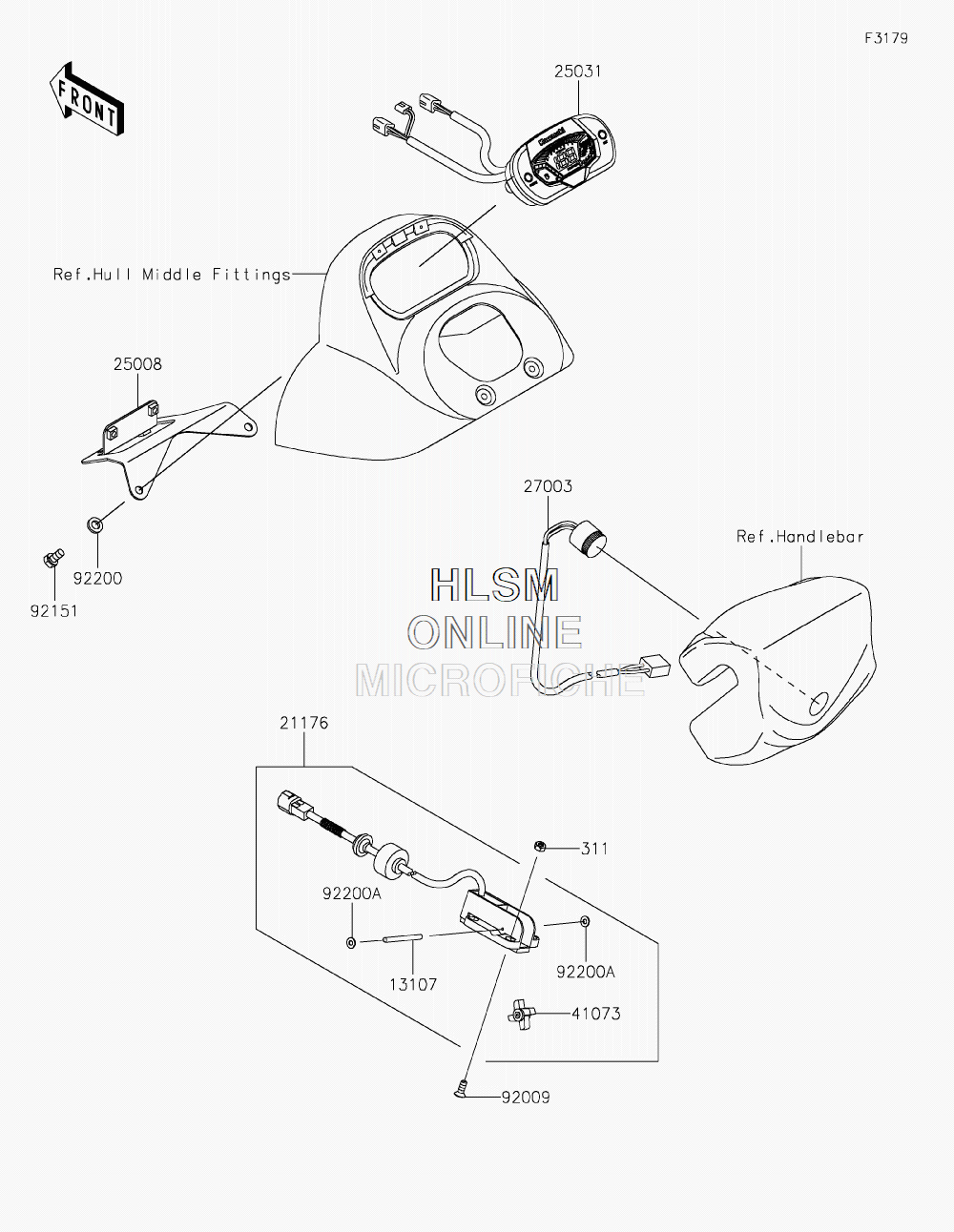

METERS для Kawasaki STX-15F [JT1500AGF] - 2016 года выпуска`
-
№АртикулНазвание
-
1310713107-3807 SHAFTSHAFT
-
2117621176-3775 SENSOR, SPEEDSENSOR, SPEED
-
2500825008-3714 BRACKET-METERBRACKET-METER
-
2503125031-0691 METER-ASSYMETER-ASSY
-
2700327003-3706 HORNHORN
-
311311R0600 NUT-HEX, 6MMNUT-HEX, 6MM
-
4107341073-3701 WHEEL-ASSY, PADDLEWHEEL-ASSY, PADDLE
-
9200992009-3703 SCREW, 6X16SCREW, 6X16
-
9215192151-3707 BOLT, 5X10BOLT, 5X10
-
9220092200-3714 WASHER, 5.9X16X1.5WASHER, 5.9X16X1.5
-
92200A92200-3805 WASHERWASHER
Все узлы модели:
- BILGE SYSTEM
- CABLES
- CAMSHAFT(S)/TENSIONER
- COLOR INFO
- COOLING
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER HEAD COVER
- CYLINDER/PISTON(S)
- DECALS
- DRIVE SHAFT
- ELECTRICAL EQUIPMENT
- ENGINE COVER(S)
- ENGINE MOUNT
- FUEL INJECTION
- FUEL PUMP
- FUEL TANK
- GENERATOR
- HANDLE POLE
- HANDLEBAR
- HULL
- HULL FRONT FITTINGS
- HULL MIDDLE FITTINGS
- HULL REAR FITTINGS
- IGNITION SYSTEM
- INTAKE SILENCER
- JET PUMP
- LABELS
- MANUALS
- • METERS
- MUFFLER(S)
- OIL PAN
- OIL PUMP
- OWNER TOOLS
- PADS
- SEAT
- STARTER MOTOR
- THROTTLE
- VALVE(S)
