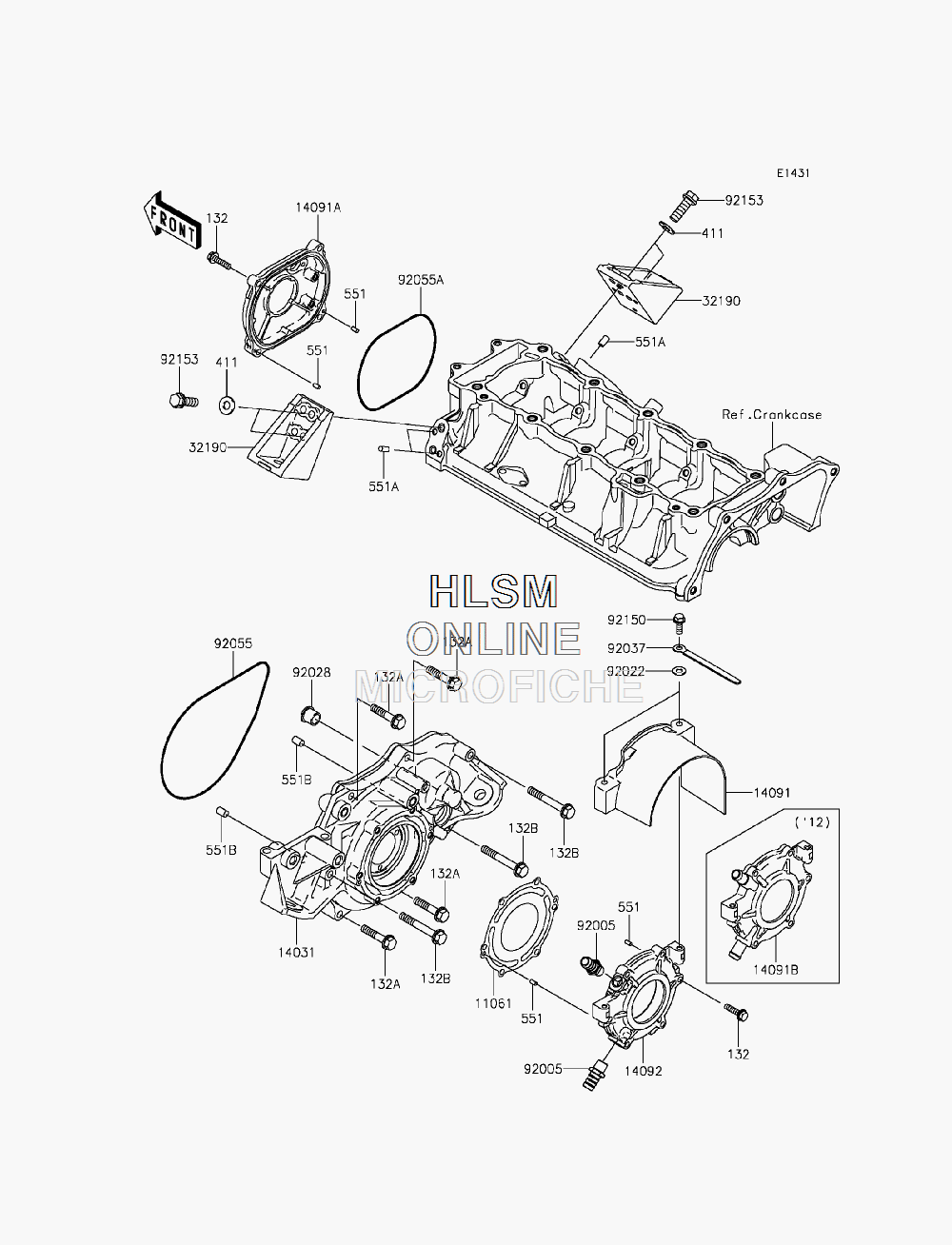

ENGINE COVER(S) для Kawasaki ULTRA LX (JT1500KDF) - 2013 года выпуска`
-
№АртикулНазвание
-
132132BD0625 BOLT-FLANGED-SMALL, 6X25BOLT-FLANGED-SMALL, 6X25
-
132A132BD0840 BOLT-FLANGED-SMALL, 8X40BOLT-FLANGED-SMALL, 8X40
-
132B132BD0860 BOLT-FLANGED-SMALL, 8X60BOLT-FLANGED-SMALL, 8X60
-
411411S0800 WASHER-PLAIN, 8MMWASHER-PLAIN, 8MM
-
551551R0408 PIN-DOWELPIN-DOWEL
-
551A551R0612 PIN-DOWELPIN-DOWEL
-
551B551R0812 PIN-DOWELPIN-DOWEL
-
1106111061-0812 GASKET, OUTPUT COVERGASKET, OUTPUT COVER
-
1403114031-3737 COVER-GENERATORCOVER-GENERATOR
-
1409114091-3749 COVER, COUPLINGCOVER, COUPLING
-
14091A14091-3763 COVER, PULSCOVER, PULS
-
1409214092-1046 COVER, OUTPUTCOVER, OUTPUT
-
3219032190-3703 BRACKET-ENGINEBRACKET-ENGINE
-
9200592005-3714 FITTINGFITTING
-
9202292022-3710 WASHER, 6.5X20X1.5WASHER, 6.5X20X1.5
-
9202892028-3718 BUSHINGBUSHING
-
9203792037-3736 CLAMP, L=100CLAMP, L=100
-
9205592055-3761 RING-O, 196X3RING-O, 196X3
-
92055A92055-3762 RING-O, 120X3RING-O, 120X3
-
9215092150-3729 BOLT, 6X18BOLT, 6X18
-
9215392153-3722 BOLT, FLANGED, 8X30BOLT, FLANGED, 8X30
