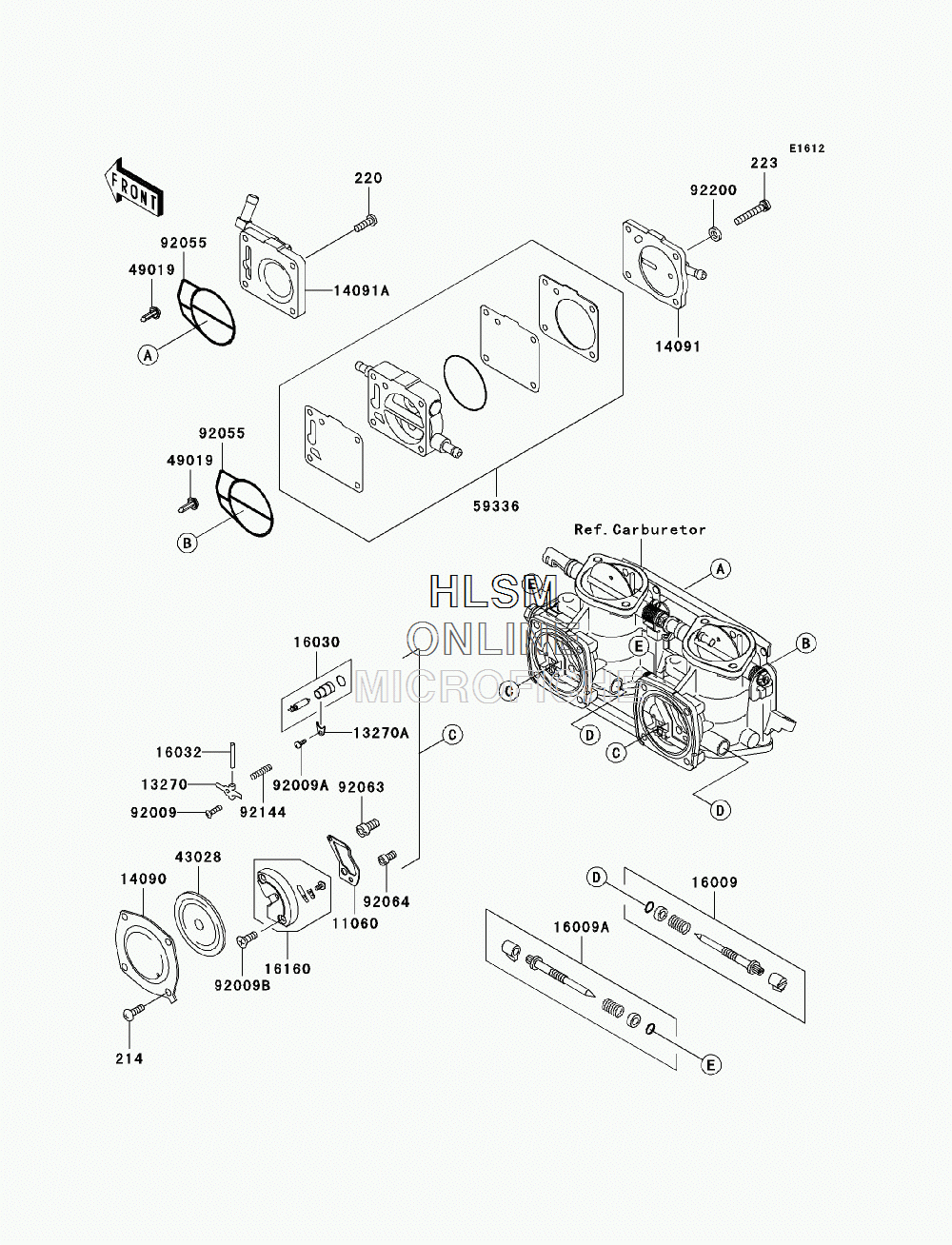

CARBURETOR PARTS для Kawasaki 800 SX-R (JS800ABF) - 2011 года выпуска`
-
№АртикулНазвание
-
214214R0510 SCREW-PAN+-, 5X10SCREW-PAN+-, 5X10
-
220220R0516 SCREW-PAN-CROS, 5X16SCREW-PAN-CROS, 5X16
-
223223R0535 SCREW-PAN-WS-CROS, 5X35SCREW-PAN-WS-CROS, 5X35
-
1106011060-3774 GASKETGASKET
-
1327013270-3828 PLATEPLATE
-
13270A13270-3829 PLATEPLATE
-
1409014090-3785 COVERCOVER
-
1409114091-3774 COVERCOVER
-
14091A14091-3775 COVERCOVER
-
1600916009-3717 NEEDLE-JET, SLOWNEEDLE-JET, SLOW
-
16009A16009-3718 NEEDLE-JET, MAINNEEDLE-JET, MAIN
-
1603016030-3703 VALVE-FLOATVALVE-FLOAT
-
1603216032-006 PIN, FLOATPIN, FLOAT
-
1616016160-3737 BODYBODY
-
4302843028-3709 DIAPHRAGMDIAPHRAGM
-
4901949019-3713 FILTER-FUELFILTER-FUEL
-
5933659336-3712 CASE-PUMP, DIAPHRAGMCASE-PUMP, DIAPHRAGM
-
9200992009-3712 SCREW, 3X8SCREW, 3X8
-
92009A92009-3821 SCREW, 3X7SCREW, 3X7
-
92009B92009-3822 SCREW, 4X14SCREW, 4X14
-
9205592055-3745 O-RINGO-RING
-
9206392063-3724 JET-MAIN, #132.5JET-MAIN, #132.5
-
9206492064-3704 JET-PILOT, #72.5JET-PILOT, #72.5
-
9214492144-3756 SPRINGSPRING
-
9220092200-3745 WASHER, 5.3X10X1.0WASHER, 5.3X10X1.0
