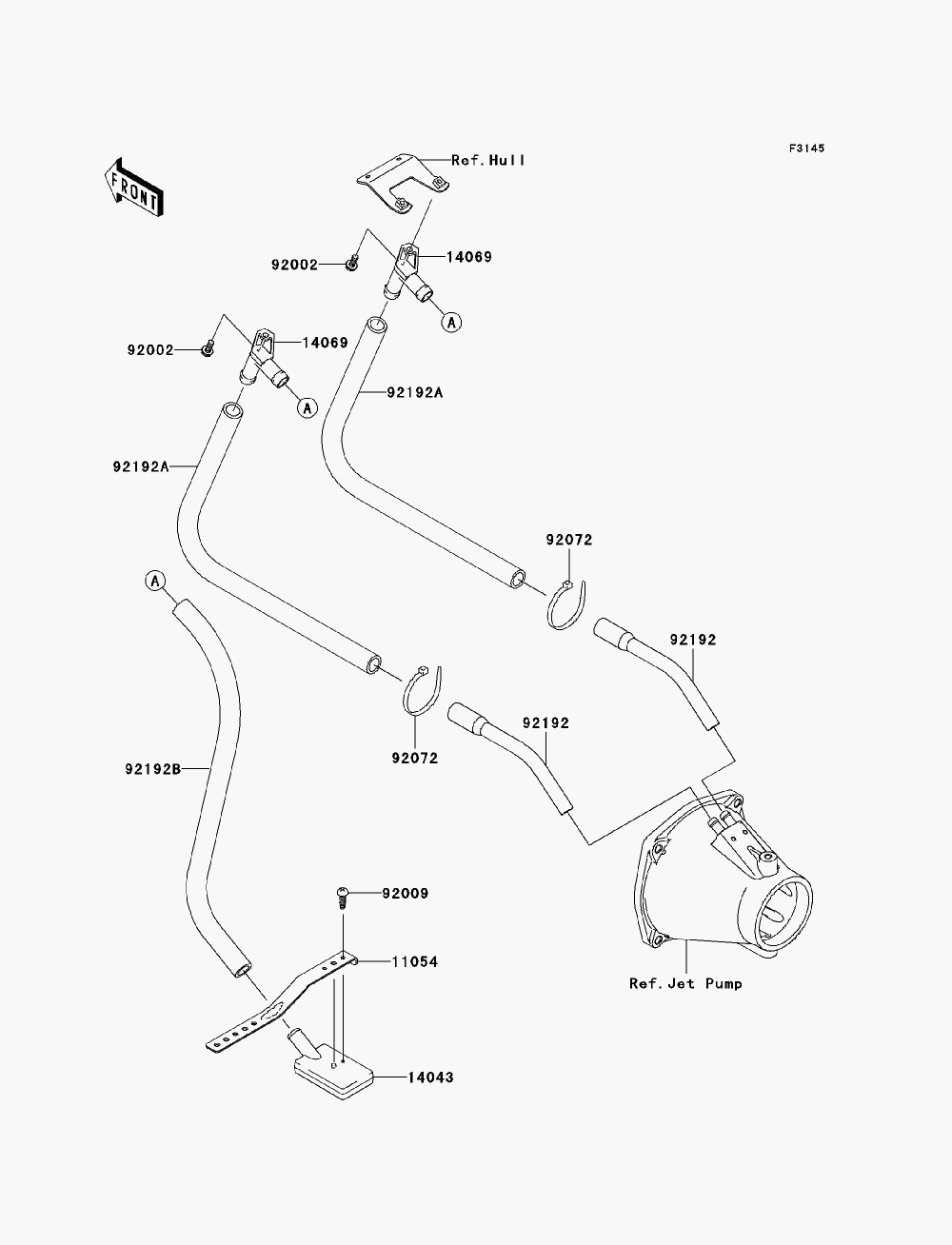

BILGE SYSTEM для Kawasaki ULTRA LX (JT1500C8F) - 2008 года выпуска`
-
№АртикулНазвание
-
1105411054-3703 BRACKET, LEFT HAND & RIGHT HANDBRACKET, LEFT HAND & RIGHT HAND
-
1404314043-3711 FILTERFILTER
-
1406914069-3708 BREATHERBREATHER
-
9200292002-3728 BOLT,6X16BOLT,6X16
-
9200992009-3762 SCREW,TAPPING,4X14SCREW,TAPPING,4X14
-
9207292072-1239 BAND,L=188BAND,L=188
-
9219292192-3753 TUBE,HULL-NOZZLETUBE,HULL-NOZZLE
-
92192A92192-3754 TUBE,BREATHER-HULLTUBE,BREATHER-HULL
-
92192B92192-3755 TUBE,FILTER-BREATHERTUBE,FILTER-BREATHER
