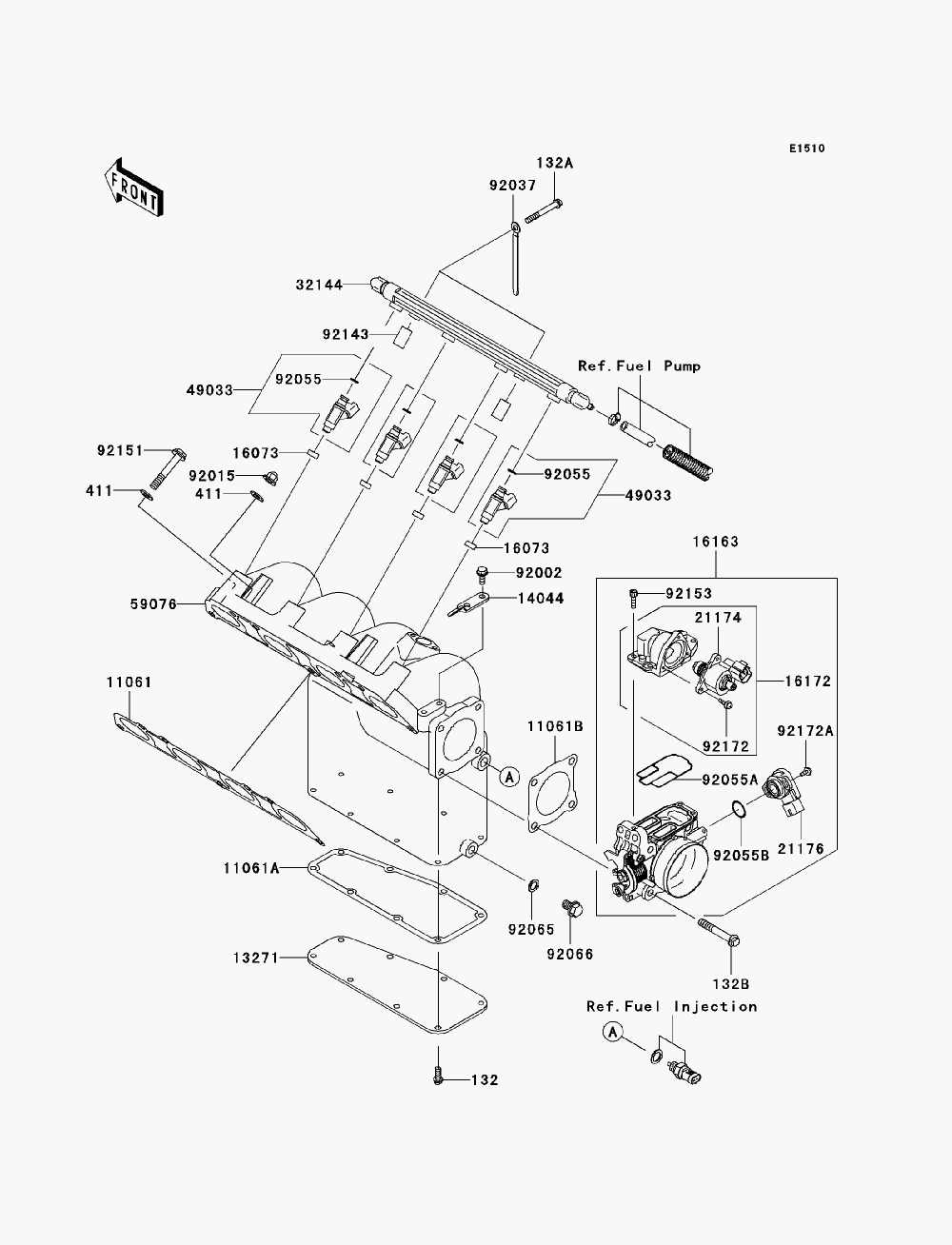

THROTTLE для Kawasaki STX-12F (JT1200D7F) - 2007 года выпуска
-
№АртикулНазвание
-
132132Y0616 BOLT-FLANGED-SMALL,6X16BOLT-FLANGED-SMALL,6X16
-
132A132Y0650 BOLT-FLANGED-SMALL,6X50BOLT-FLANGED-SMALL,6X50
-
132B132Y0855 BOLT-FLANGED-SMALL,8X55BOLT-FLANGED-SMALL,8X55
-
411411S0800 WASHER-PLAIN,8MMWASHER-PLAIN,8MM
-
1106111061-3716 GASKET,MANIFOLDGASKET,MANIFOLD
-
11061A11061-3727 GASKET,PLATEGASKET,PLATE
-
11061B11061-3738 GASKET,THROTTLEGASKET,THROTTLE
-
1327113271-3875 PLATE,MANIFOLDPLATE,MANIFOLD
-
1404414044-3748 HOLDER-CABLEHOLDER-CABLE
-
1607316073-3707 INSULATORINSULATOR
-
1616316163-3711 THROTTLE-ASSY,AC54THROTTLE-ASSY,AC54
-
1617216172-3705 ACTUATORACTUATOR
-
2117421174-3706 MOTOR-ELECTRIC,STMMOTOR-ELECTRIC,STM
-
2117621176-3762 SENSOR,TPSSENSOR,TPS
-
3214432144-3705 PIPE-ASSYPIPE-ASSY
-
4903349033-3707 NOZZLE-INJECTIONNOZZLE-INJECTION
-
5907659076-3732 MANIFOLD-INTAKEMANIFOLD-INTAKE
-
9200292002-3728 BOLT,6X16MMBOLT,6X16MM
-
9201592015-1371 NUT,CAP,8MMNUT,CAP,8MM
-
9203792037-3736 CLAMP,L=100CLAMP,L=100
-
9205592055-1622 RING-O,INJECTION NOZZLERING-O,INJECTION NOZZLE
-
92055A92055-3773 RING-ORING-O
-
92055B92055-3774 RING-ORING-O
-
9206592065-058 GASKET,10.5X16X1GASKET,10.5X16X1
-
9206692066-3781 PLUGPLUG
-
9214392143-3731 COLLARCOLLAR
-
9215192151-3730 BOLT,8X60BOLT,8X60
-
9215392153-3723 BOLTBOLT
-
9217292172-3710 SCREWSCREW
-
92172A92172-3711 SCREWSCREW
